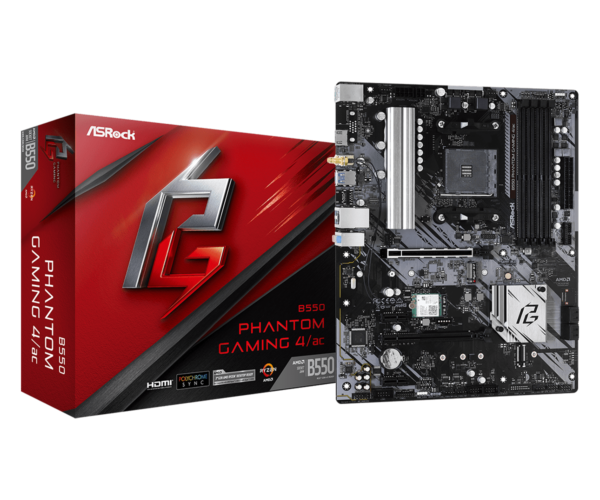

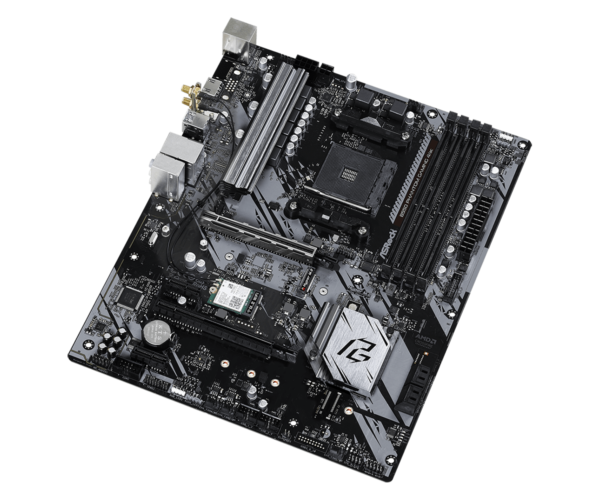

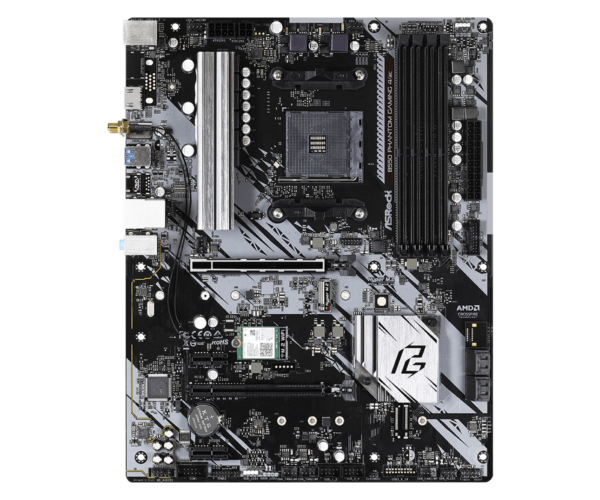

ASROCK B550 PHANTOM GAMING 4 AC

  • Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
  • 8 Power Phase Design, Digi Power
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
  • Graphics Output Options: HDMI
  • AMD CrossFireX™
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
  • 8 USB 3.2 Gen1 (2 Front, 6 Rear)
  • Gigabit LAN, Wi-Fi 802.11ac (2.4/5GHz) + BT 4.2
    *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
EGP2,450.00

Out of stock


Category:
Tags: , , , , ,
Brands:: ASROCK
ASROCK

Description

  • Gaming Armor
    Memory
    – 15μ Gold Contact in DIMM Slots
    Cooling
    – XXL Aluminum Alloy Heatsink
    Audio
    – Nahimic Audio
  • Unique Feature
    ASRock Super Alloy
    – XXL Aluminum Alloy Heatsink
    – Premium 50A Power Choke
    – Sapphire Black PCB
    – High Density Glass Fabric PCB
    – 2oz Copper PCB
    Intel® 802.11ac WiFi
    ASRock Steel Slot Gen4
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    – Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*
    – Digi Power design
    – 8 Power Phase design

    *Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
  • Chipset
    – AMD B550
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 4 x DDR4 DIMM Slots
    – AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
    – Max. capacity of system memory: 128GB**
    – Supports Extreme Memory Profile (XMP) memory modules
    – 15μ Gold Contact in DIMM Slots

    *For Ryzen Series APUs (Renoir), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support. For more details.

    Ryzen Series CPUs (Vermeer):

    Ryzen Series CPUs (Matisse):

    Ryzen Series APUs (Renoir):

    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS
    – 256Mb AMI UEFI Legal BIOS with GUI support
    – Supports “Plug and Play”
    – ACPI 5.1 compliance wake up events
    – Supports jumperfree
    – SMBIOS 2.3 support
    – CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
  • Graphics
    – Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
    – DirectX 12, Pixel Shader 5.0
    – Shared memory default 2GB. Max Shared memory supports up to 16GB.**
    – Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
    – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    – Supports HDR (High Dynamic Range) with HDMI 2.1
    – Supports HDCP 2.3 with HDMI 2.1 Port
    – Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    – Supports Microsoft® PlayReady

    *Actual support may vary by CPU

    **The Max shared memory 16GB requires 32GB system memory installed.

  • Audio
    – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
    – Premium Blu-ray Audio support
    – Supports Surge Protection
    – PCB Isolate Shielding
    – Individual PCB Layers for R/L Audio Channel
    – Nahimic Audio
  • LAN
    – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    – Realtek RTL8111H
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Wireless LAN
    – Intel® 802.11ac WiFi Module
    – Supports IEEE 802.11a/b/g/n/ac
    – Supports Dual-Band (2.4/5 GHz)
    – Supports high speed wireless connections up to 433Mbps
    – Supports Bluetooth 4.2 + High speed class II
  • Slots
    AMD Ryzen series CPUs (Vermeer and Matisse)
    – 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
    AMD Ryzen series APUs (Renoir)
    – 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*

    – 2 x PCI Express 3.0 x1 Slots
    – Supports AMD Quad CrossFireX™ and CrossFireX™
    – 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module

    *Supports NVMe SSD as boot disks
  • Storage
    – 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)*

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    – 1 x COM Port Header
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 2 x RGB LED Headers*
    – 2 x Addressable LED Headers**
    – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
    – 1 x 24 pin ATX Power Connector
    – 1 x 8 pin 12V Power Connector
    – 1 x 4 pin 12V Power Connector
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *Support in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O
    – 2 x Antenna Ports
    – 1 x PS/2 Mouse/Keyboard Port
    – 1 x HDMI Port
    – 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (Phantom Gaming Tuning)
    – ASRock Polychrome SYNC
    – ASRock Key Master
    – ASRock XFast LAN
    UEFI
    – ASRock Full HD UEFI
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    – Quick Installation Guide, Support CD, I/O Shield
    – 2 x SATA Data Cables
    – 2 x ASRock WiFi 2.4/5 GHz Antennas
    – 1 x Screw for M.2 Socket
  • Hardware Monitor
    – Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
  • Form Factor
    – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    – Solid Capacitor design
    – 2oz Copper PCB
  • OS
    – Microsoft® Windows® 10 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)





https://www.asrock.com/mb/AMD/B550%20Phantom%20Gaming%204ac/index.asp#Overview

Additional information

MOTHERBOARD CHIPSET

B550

MOTHERBOARD FORM FACTOR

ATX

MOTHERBOARD MANUFACTURERS

ASROCK

MOTHERBOARD SERIES

AMD B550

MOTHERBOARD PLATFORM

AMD

MOTHERBOARD SOCKET

AM4
