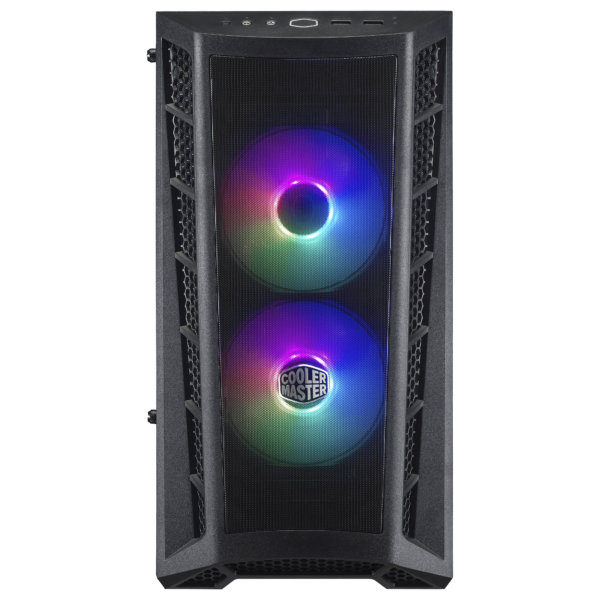

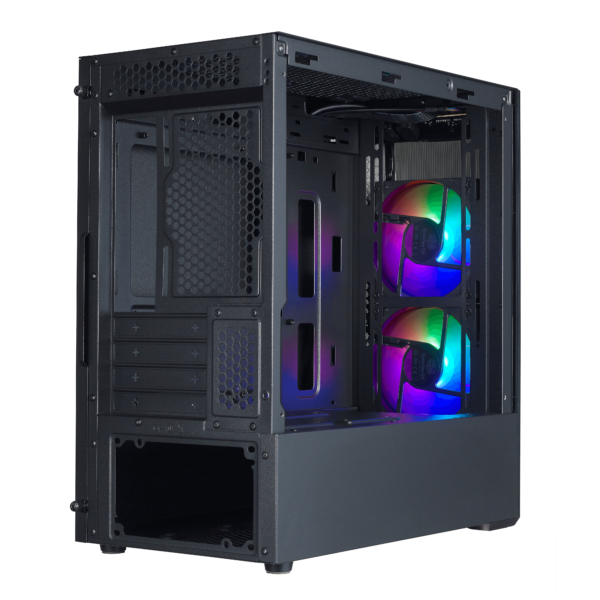

COOLER MASTER MB 311L ARGB MINI+PSU 600W 80+

Product Name MasterBox MB311L
ARGB
MasterBox MB311L
ARGB w/ controller
Product Number MCB-B311L-KGNN-S01 MCB-B311L-KGNN-S02
Exterior Color Black
Materi
als
Body Steel, Mesh, Plastic
Windowed
Side Panel Tempered Glass
Dimen
sions
(L x W
x H)
incl.
Protrusions 435.5 x 217.5 x 410mm
excl.
Protrusions 366.5 x 210 x 400mm
Volume (Liters excl.
Protrusions) 30.79L
Motherboard Support Mini-ITX, Micro-ATX
Expansion Slots 4
Drive
Bays
5.25“ ODD N/A
3.5” HDD 2
2.5” SSD 2
I/O
Panel
USB Ports 2 x USB 3.2 Gen 1 (USB 3.0)
Audio In /
Out
1 x 3.5mm Audio Jack
1 x 3.5mm Mic Jack
Other 1 x ARGB 2-to-3 Splitter 1 x ARGB Controller
1 x ARGB 2-to-3 Splitter
Preinstalled
Fan(s)
Top N/A
Front 2 x 120mm ARGB fans
Rear N/A
Bottom N/A
Fan
Support
Top 2 x 120mm / 2 x 140mm
Front 3 x 120mm* / 2 x 140mm
(*can only mount behind the front plate)
Rear 1 x 120mm
Radiator
Support
Top 120 / 240mm
Front 120 / 140 / 240 / 280mm
Rear 120mm
Clearanc
es
CPU Cooler 166mm
Power
Supply
325mm (w/o front radiator & drive cage)
140mm (drive cage in backmost position)
Graphics
Card 344mm
Cable
Routing
Behind MB
Tray 18~22mm
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX

https://www.coolermaster.com/catalog/cases/mini-tower/masterbox-mb311l-argb-2021/#overview

PRODUCT NAME

Elite V3 600W

MODEL

MPW-6001-ACAAN1

ATX VERSION

ATX 12V V2.31

PFC

Active PFC (>0.9 typical)

INPUT VOLTAGE

100-240Vac (Normal)

INPUT CURRENT

10-5A

INPUT FREQUENCY

50-60Hz

DIMENSIONS (L X W X H)

150 x 140 x 86 mm

FAN SIZE

120mm

FAN BEARING

Sleeve Fan

POWER GOOD SIGNAL

100-500ms

HOLD UP TIME

>10ms at 100% Full Load

EFFICIENCY

75% @ Typical Load

MTBF

>100,000 Hours

OPERATING TEMPERATURE

10-40°C

PROTECTIONS

OVP, OPP, OTP, SCP

REGULATORY

TUV, cTUVus, CE, FCC, BSMI

MB 20+4 PIN CONNECTORS

1

CPU 12V 4+4 PIN CONNECTORS

1

SATA CONNECTORS

6

PERIPHERAL 4-PIN CONNECTORS

3

FDD CABLE 4-PIN CONNECTORS

1

PCI-E 6+2 PIN CONNECTORS

2
