| Specifications | |||||||

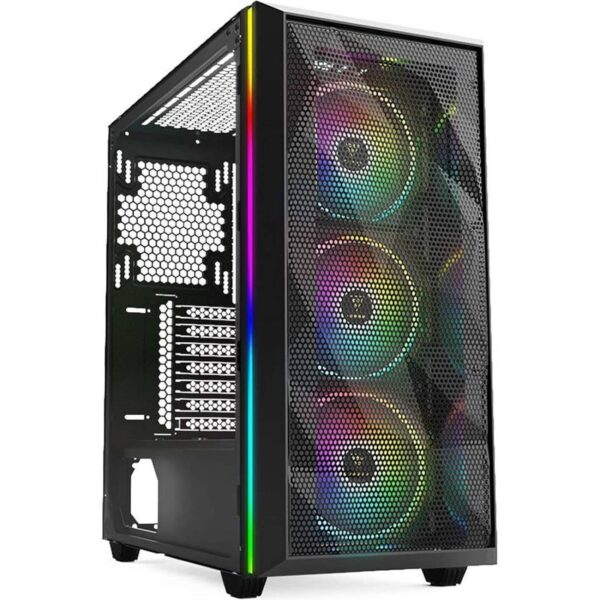

| Product Name | ATHENA M2 | ||||||
| Case Type | MID Tower | ||||||
| Motherboard Support | ATX, Micro-ATX, Mini-ITX | ||||||
| Synchronization | 5V (3pin) with ASUS / MSI /ASROCK / GIGABYTE motherboard | ||||||
| Color | Black | ||||||
| Expansion Slots | 7 | ||||||
| Material | SPCC & ABS & Tempered glass | ||||||
| Window | Front. Left | ||||||
| Radiator Support | Top: 280 mm Front: 360 mm, 280 mm Rear: 120 mm |
||||||
| Fan Support | Top: 2 x 120mm , 2 x 140mm Front: 3 x 120mm , 2 x 140mm Rear: 1 x 120mm, 1 x 140mm Bottom: 2 x 120mm |
||||||
| Pre-installed Fans | Front: 3 x 120mm Trio Rings ARGB Fans | ||||||
| Drive Bays | 2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) 1 x 2.5″ |
||||||
| I/O Port | USB 3.0 x1, USB 2.0 x2, HD Audio x1, Fan LED control x1, Fan Speed control x1 | ||||||
| Clearance | CPU cooler height limitation: 170mm VGA length limitation: 330mm PSU length limitation: 170mm |
||||||
| Dimension(LxWxH) | 405 x 215 x 460 mm | ||||||
| Net Weight | 5.92 kg / 13.05 lb | ||||||
| Specifications | |||||||
| Type | ATX12V v2.4 | ||||||
| Efficiency | Meet 80% efficiency | ||||||
| Support Motherboard RGB Sync Connectors | 5V 3-pin Addressable (Digital) RGB Header Only | ||||||
| Support C6/C7 power state | Yes | ||||||
| Protection | OVP / UVP/ OPP/ SCP | ||||||
| Dimension (LxWxH) | 140 x 150 x 86 mm | ||||||
| AC Input | 220-240V, 6A, 47-63Hz | ||||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb | ||
| Max. Output Current | 15A | 15A | 40.5A | 0.3A | 2.5A | ||
| Max. Output Power | 100W | 486W | 3.6 | 12.5W | |||
| Total Power | 600W | ||||||
| Connector | |||||||
| Main Power | 1 (20+4 Pin) | ||||||
| CPU | 1 (4+4 Pin) | ||||||
| PCI-E | 2 (6+2 Pin) | ||||||
| SATA | 5 (5 Pin) | ||||||
| Molex | 2 (4 Pin) | ||||||
| Floppy | 1 (4 Pin) | ||||||
| Note: Actual products may vary due to product enhancement and are mainly based on specifications on package. | |||||||
