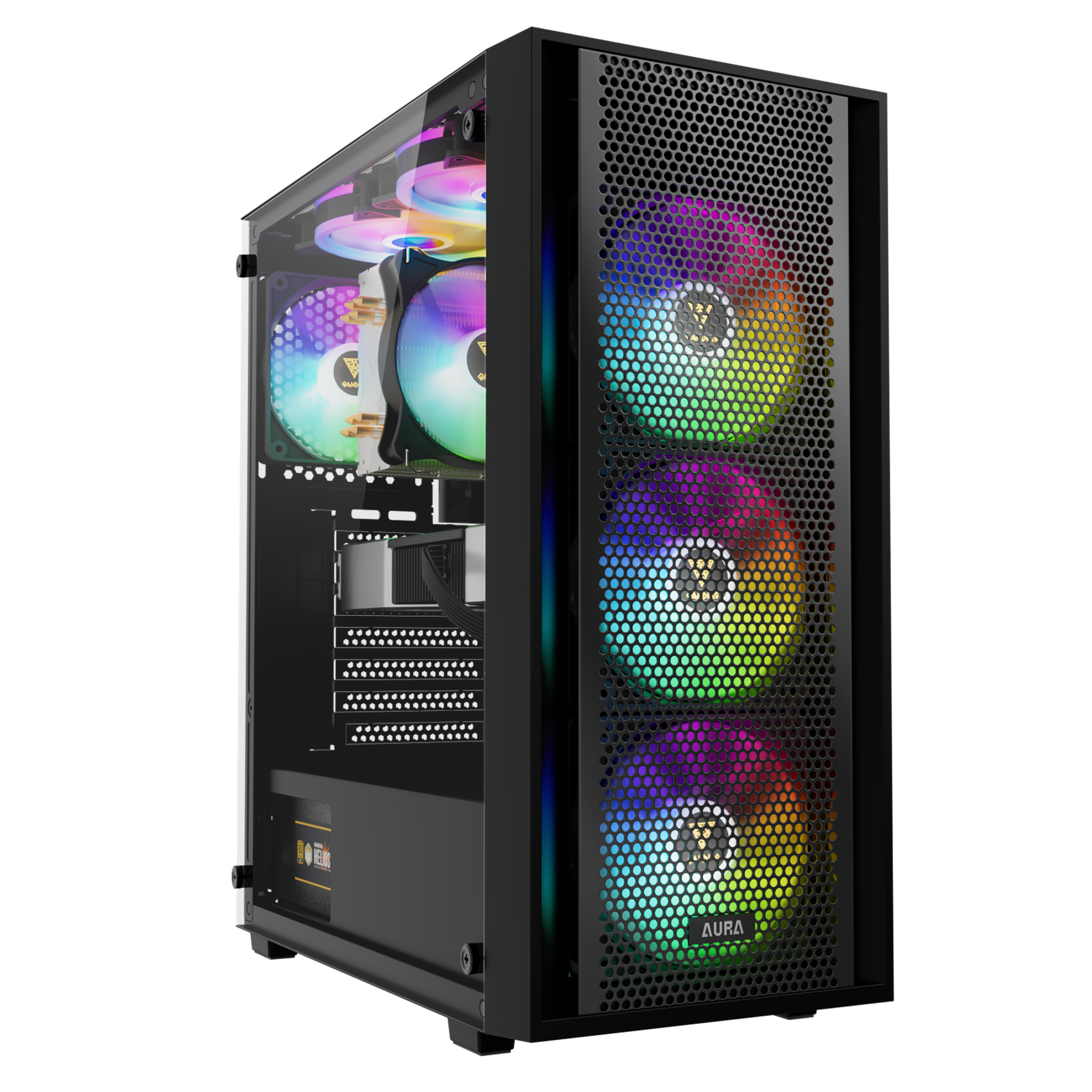

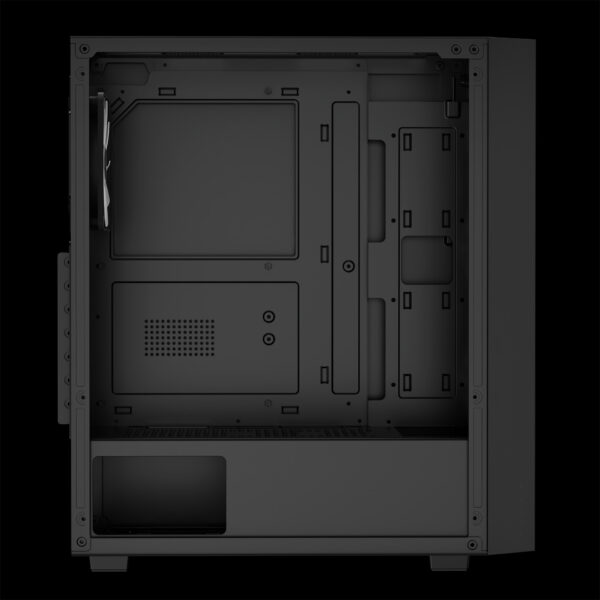

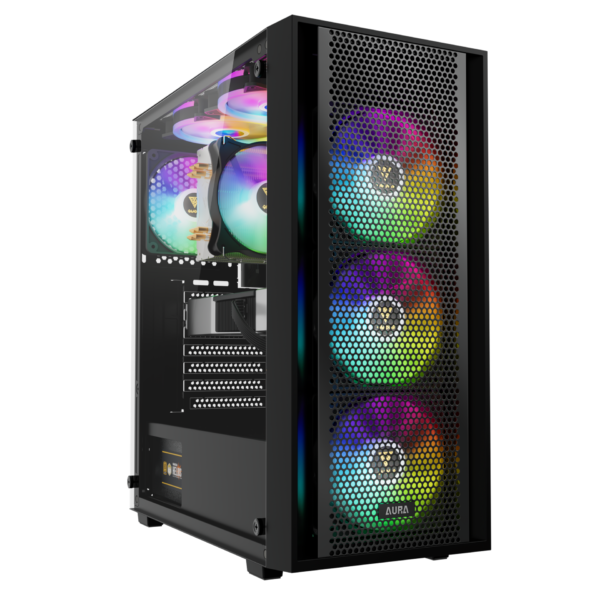

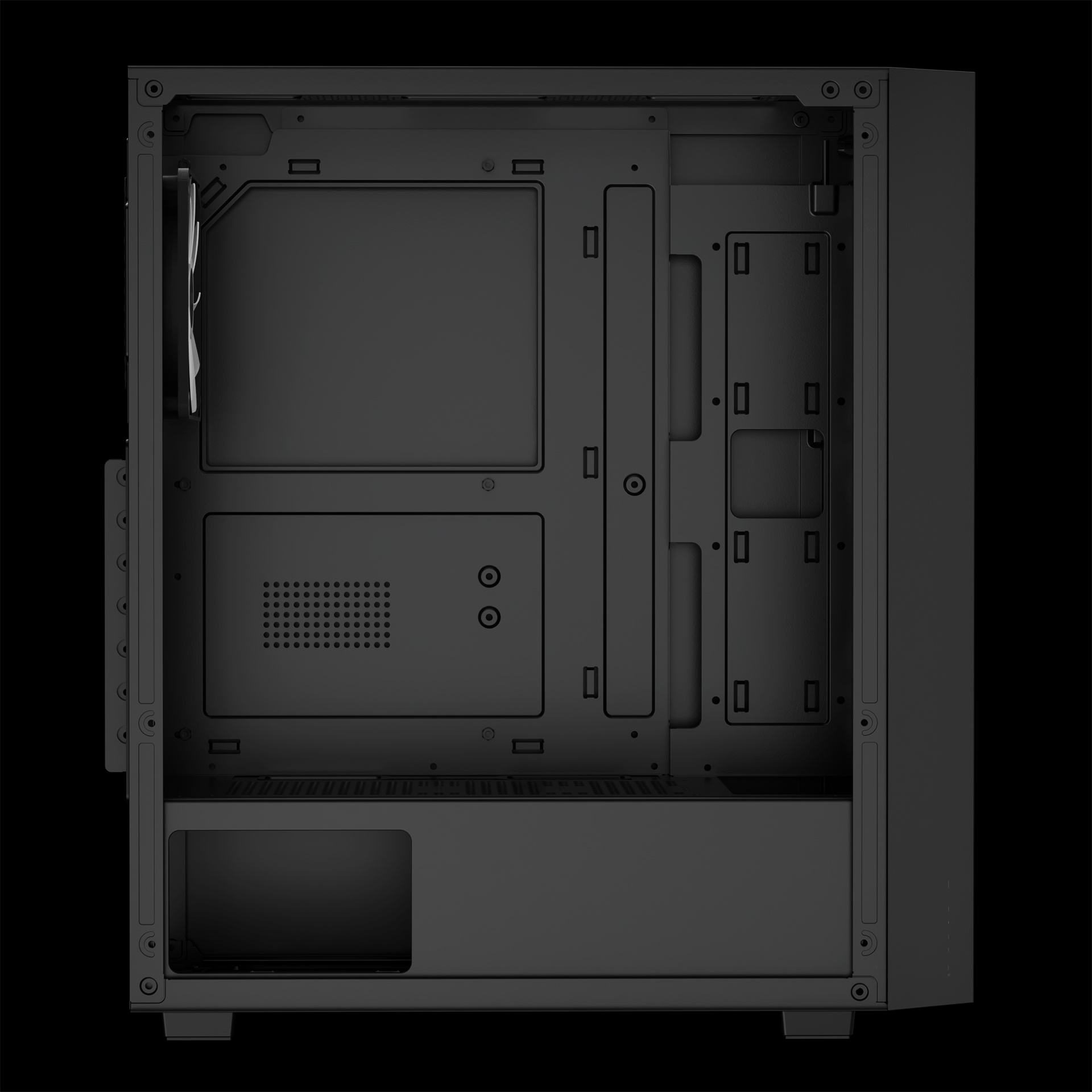

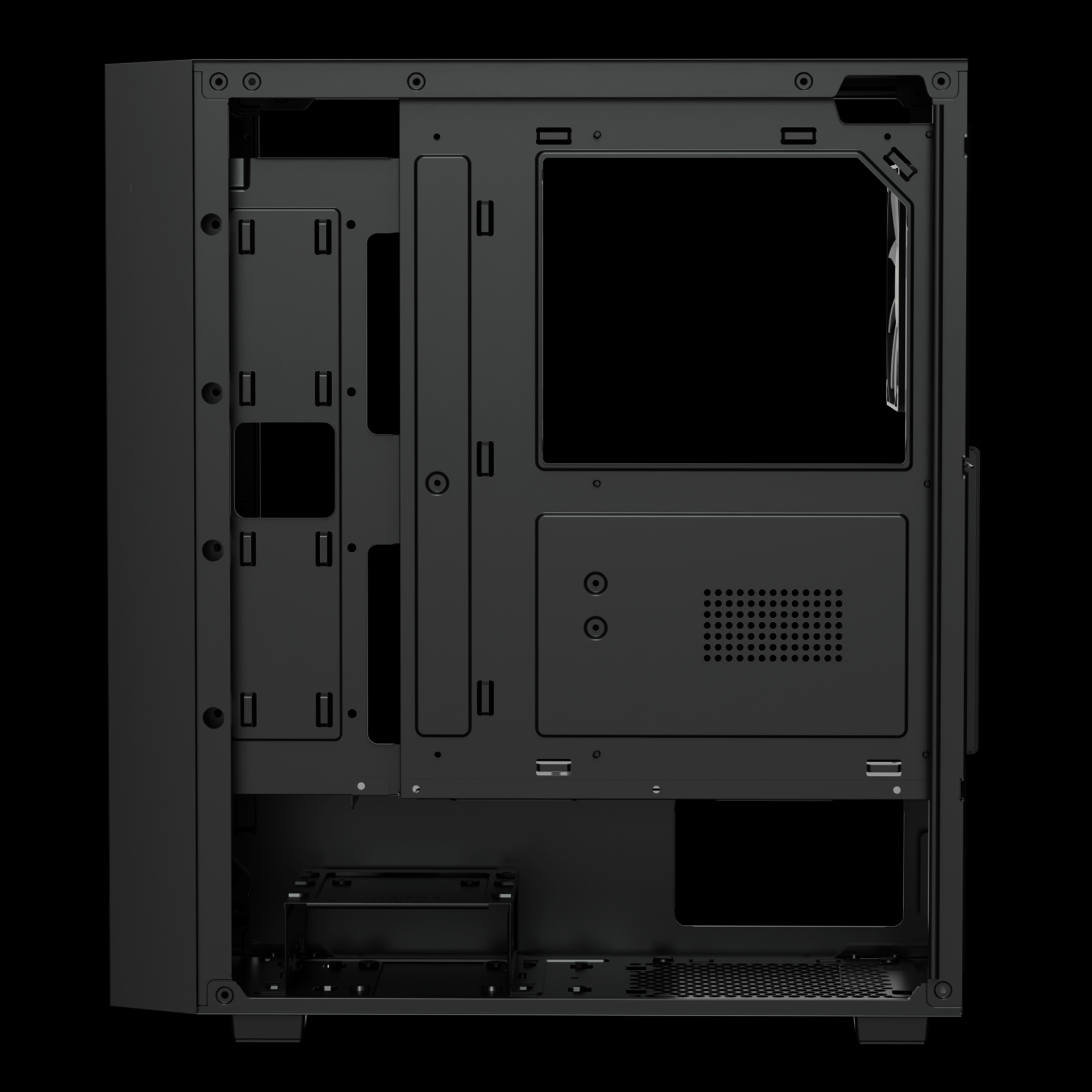

Case TypeMID Tower
MB SupportATX、Micro-ATX、Mini-ITX
SynchronizationNo
CASE ColorBlack
Expansion Slots7
MaterialSPCC & ABS & Tempered glass
WindowLeft
Radiator SupportFront:360mm / Rear:120mm

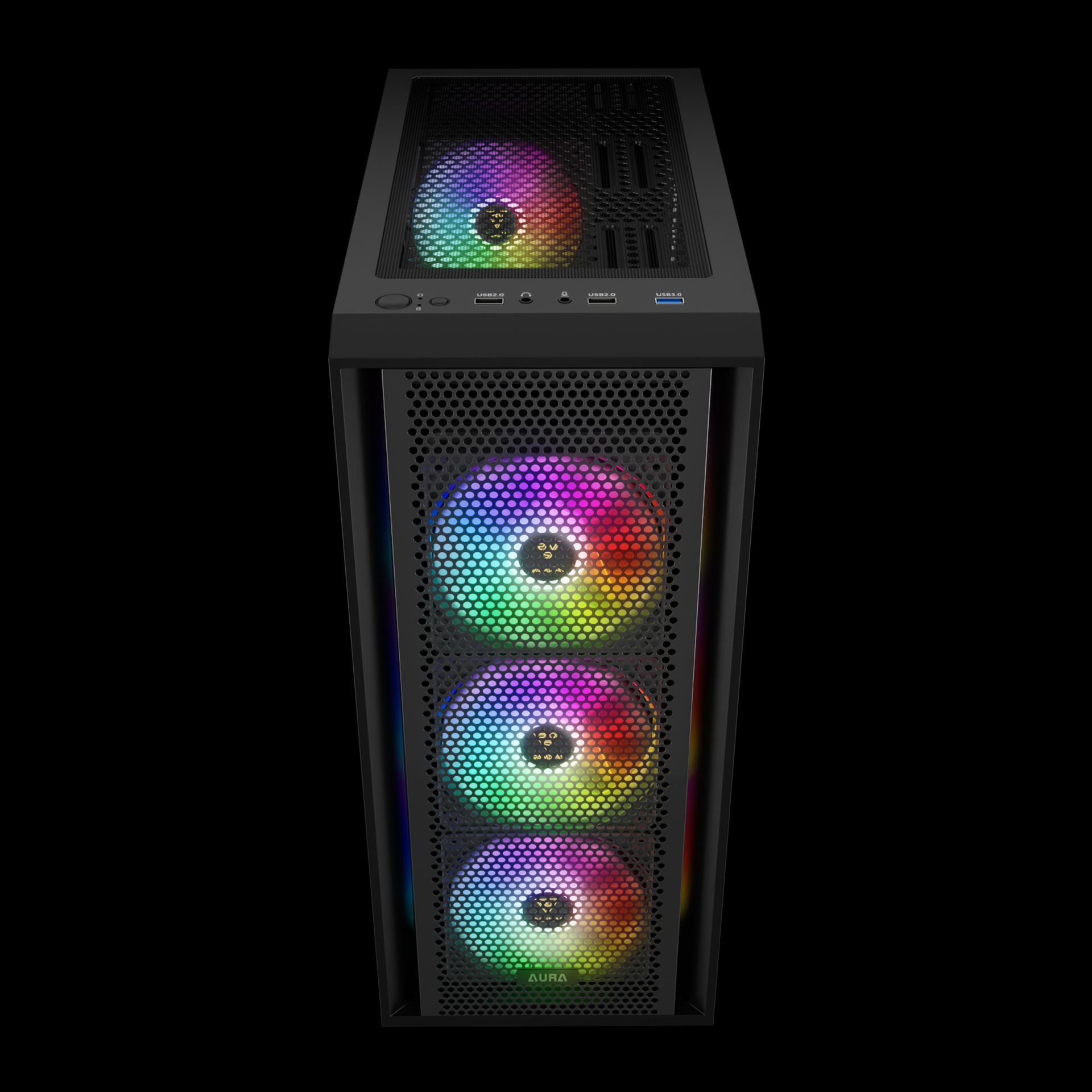

Fan SupportTop: 2 x 120mm / Front: 3 x 120mm、 2 x 140mm / Rear: 1 x 120mm
Pre-installed FansFront: 3 x 120mm Fixed RGB Fans / Rear: 1 x 120mm Fixed RGB Fan
Drive Bays2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage) / 2 x 2.5″
I/O PortUSB 3.0 x1, USB 2.0 x2, HD Audio x1, Reset x1
ClearanceCPU cooler height limitation: 160mm
VGA length limitation: 340mm
PSU length limitation: 160mm
VGA length limitation: 340mm
PSU length limitation: 160mm
Dimension (L x W x H)395 x 195 x 450 mm
15.5 x 7.7 x 17.8 inch
15.5 x 7.7 x 17.8 inch
Net Weight4.9kg
Pre-installed Control BOXNo
TypeATX12V v2.4
EfficiencyMeeting up to 80% efficiency
Support MB SyncNo
Dimension (L x W x H)140 x 150 x 86 mm
Support C6/C7 power stateYes
AC Input220-240V / 6A / 47-63Hz
DC Output+3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current16A / 16A / 40.5A / 0.3A / 2.5A
Max. Output Power100W / 486W / 3.6W / 12.5W
Total Power600W
ProtectionOVP / UVP / OPP / SCP
Main Power1 (20+4 Pin)
CPU1 (4+4 Pin)
PCI-E2 (6+2 Pin)
SATA5 (5 Pin)
Molex2 (4 Pin)
Floppy1 (4 Pin)
ModularNon Modular
Silent ModeNo
DC to DCNo
