Extraordinary Efficiency

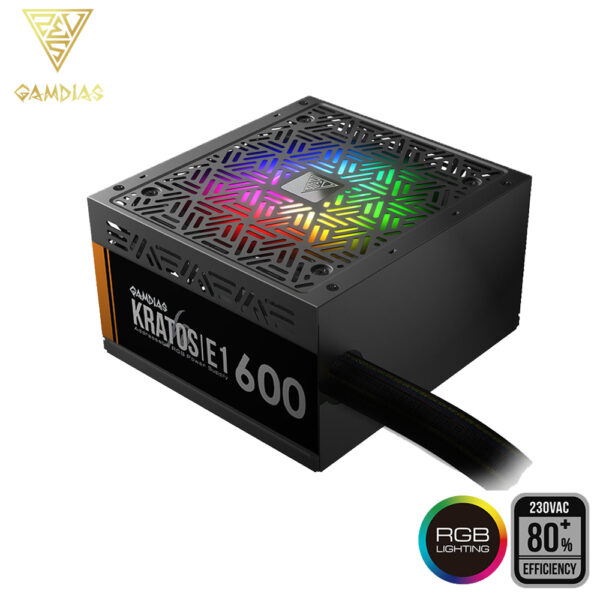

Converting less heat and being more power efficient, the KRATOS E1-600 delivers up to 80% energy efficiency and supports C6/C7 power state. Accordingly, a deeper lower power sleep states for further efficiency is achieved.
Out of stock
Specifications | |||||||
Type | ATX12V v2.4 | ||||||
Efficiency | Meet 80% efficiency | ||||||
Support Motherboard RGB Sync Connectors | 5V 3-pin Addressable (Digital) RGB Header Only | ||||||
Support C6/C7 power state | Yes | ||||||
Protection | OVP / UVP/ OPP/ SCP | ||||||
Dimension (LxWxH) | 140 x 150 x 86 mm |
AC Input | 220-240V, 6A, 47-63Hz | ||||||
DC Output | +3.3V | +5V | +12V | -12V | +5Vsb | ||
Max. Output Current | 15A | 15A | 40.5A | 0.3A | 2.5A | ||
Max. Output Power | 100W | 486W | 3.6 | 12.5W | |||
Total Power | 600W |
Connector | |||||||
Main Power | 1 (20+4 Pin) | ||||||
CPU | 1 (4+4 Pin) | ||||||
PCI-E | 2 (6+2 Pin) | ||||||
SATA | 5 (5 Pin) | ||||||
Molex | 2 (4 Pin) | ||||||
Floppy | 1 (4 Pin) | ||||||
Note: Actual products may vary due to product enhancement and are mainly based on specifications on package. |
POWER CERTIFICATION | 80+ |
---|---|
POWER MODULAR | FIXED CABLES |
POWER WATTAGE | 600W-650W |
