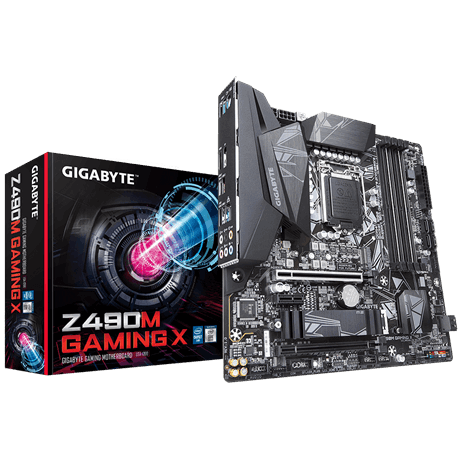

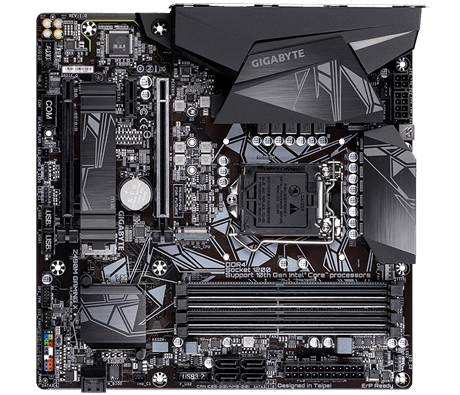

GIGABYTE Z490M GAMING X

Intel® Z490M GAMING Motherboard with Direct 11+1 Phases Power Design, 2-Way CrossFire™ Multi-Graphics, Intel® GbE with cFosSpeed, USB 3.2 Gen2 Type-A ,USB 3.2 Gen2 Type-C™, M.2 with Thermal Guard, Smart Fan 5, Dual Armor with Ultra Durable™ Design, RGB FUSION 2.0



  • Supports 10th Gen Intel® Core™ Series Processors
  • Direct 11+1 Phases Digital VRM Solution with Low RDS(on) MOSFET
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Enlarged VRM Heatsink with 5W/mK Thermal Conductive Pad
  • Ultra-Fast PCIe Gen3 X4 M.2 with Thermal Guard
  • Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
  • Smart Fan 5 Features Multiple Temperature Sensors,Hybrid Fan Headers with FAN STOP
  • Intel® Optane™ Memory Ready
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Intel® USB 3.2 Gen2 Type-A and USB 3.2 Gen2 Type-C™ Support
  • ALC1200 Multi-Channel Audio with High Quality Audio Capacitors and Audio Noise Guard
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
EGP3,450.00
Qty :

Description

  • CPU
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® Z490 Express Chipset
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.

    Maximum shared memory of 512 MB

  • Audio
    1. Realtek® ALC1200 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. 1 x PCI Express x1 slot
      (All of the PCI Express slots conform to PCI Express 3.0 standard.)

    Supports up to ASPM L1.2 power management protocols.

  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
    2. 6 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

    Intel® Optane™ Memory Ready
    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

  • USB
    Chipset:

    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    4. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x 8-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 3 x system fan headers
    6. 2 x addressable LED strip headers
    7. 2 x RGB LED strip headers
    8. 6 x SATA 6Gb/s connectors
    9. 1 x M.2 Socket 3 connector
    10. 1 x front panel header
    11. 1 x front panel audio header
    12. 1 x S/PDIF Out header
    13. 1 x USB 3.2 Gen 1 header
    14. 2 x USB 2.0/1.1 headers
    15. 2 x Thunderbolt™ add-in card connectors
    16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    17. 1 x serial port header
    18. 1 x Clear CMOS jumper
    19. 1 x Q-Flash Plus button
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 4 x USB 3.2 Gen 1 ports
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 1 x USB 3.2 Gen 2 Type-A port (red)
    6. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    7. 1 x RJ-45 port
    8. 6 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor

Additional information

MOTHERBOARD CHIPSET

Z490

MOTHERBOARD FORM FACTOR

M-ATX

MOTHERBOARD MANUFACTURERS

GIGABYTE

MOTHERBOARD SERIES

INTEL Z490

MOTHERBOARD PLATFORM

INTEL

MOTHERBOARD SOCKET

LGA 1200
