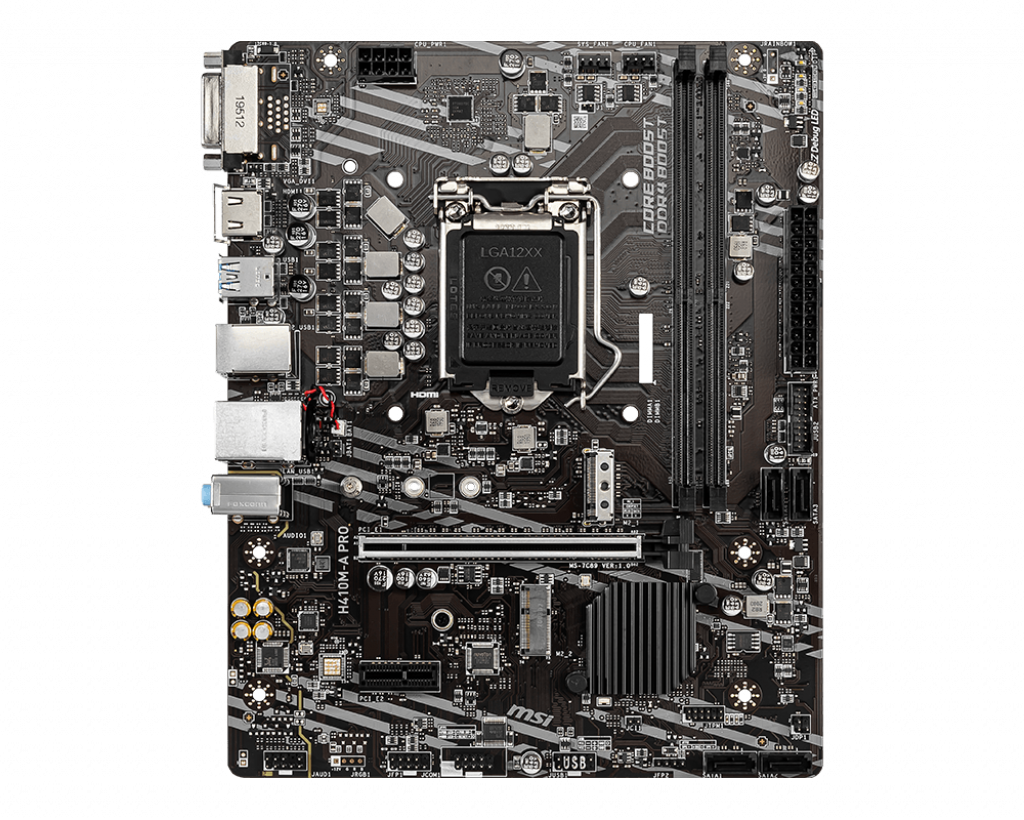

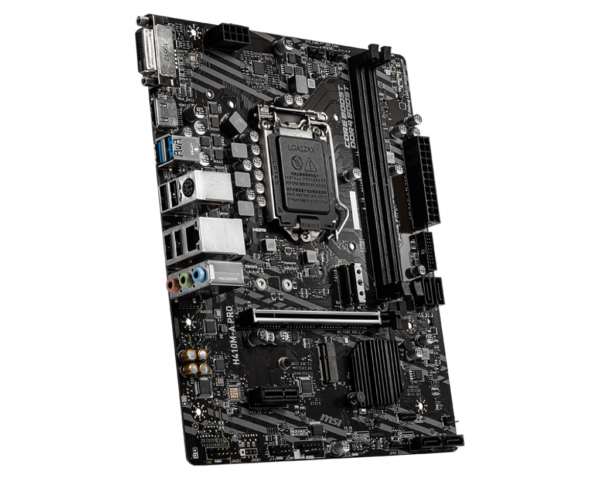

MSI H410M-A PRO

PROCESSOR

Supports 10^th Gen Intel^® Core™ and Pentium^® Gold / Celeron^® processors for LGA 1200 socket^1 2

1. Please go to www.intel.com for more compatibility information.
2. Onboard graphics output are disabled when using F SKU processors.

See supported processors

CHIPSET

Intel^® H410 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB¹
• Intel^® Core™ i7/ i9
  • Supports up to DDR4 2933 MHz
• Intel^® Core™ i5 and below
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 1x PCIe 3.0 x16 slot (From CPU)
• 1x PCIe 3.0 x1 slot (From PCH)
• 1x M.2 slot with E key for WiFi module only

ONBOARD GRAPHICS

• 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz
• 1x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz

1. Maximum shared memory is 1GB

STORAGE

Intel^® H410 Chipset

• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

USB

AUDIO

Realtek^® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel^® I219V Gigabit LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x Front panel connectors
• 1x Serial port connector
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 4x EZ Debug LED

BACK PANEL PORTS

DIMENSIONS

• Mirco-ATX Form Factor
• 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit

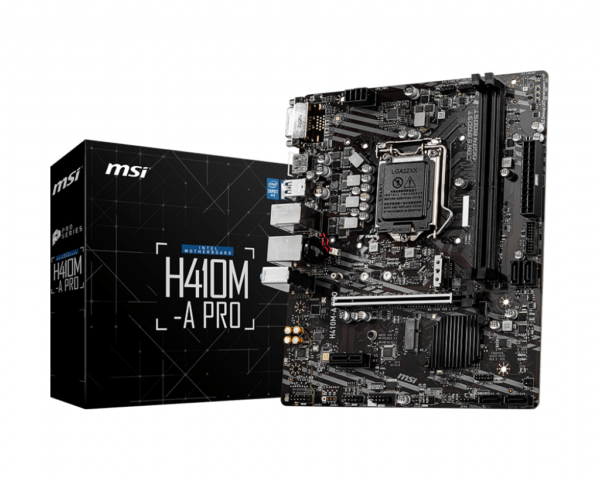

BOX CONTENT

1. MSI^® does not guarantee the risks or damages caused by changing the cover.
2. These pictures are for reference only and may vary without notice.
