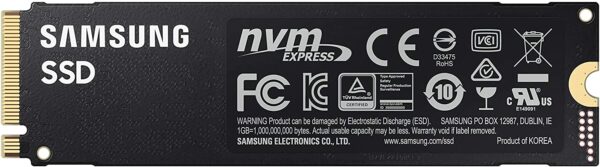

SAMSUNG 980 PRO 1TB GEN4.0

Model Code (Capacity)¹⁾

• MZ-V8P250BW (250GB)

• MZ-V8P500BW (500GB)

• MZ-V8P1T0BW (1TB)

• MZ-V8P2T0BW (2TB)

General Feature

• APPLICATION

  Client PCs

• FORM FACTOR

  M.2 (2280)

• INTERFACE

  PCIe Gen 4.0 x4, NVMe 1.3c

• DIMENSION (WxHxD)

  80.15 x 22.15 x 2.38 (mm)

• WEIGHT

  Max 9.0 g

• STORAGE MEMORY

  Samsung V-NAND 3-bit MLC

• CONTROLLER

  Samsung Elpis Controller

• CACHE MEMORY

  Samsung 512MB Low Power DDR4 SDRAM (250/500GB)
  Samsung 1GB Low Power DDR4 SDRAM (1TB)
  Samsung 2GB Low Power DDR4 SDRAM (2TB)

Special Feature

• TRIM SUPPORT

  Supported

• S.M.A.R.T SUPPORT

  Supported

• GC (GARBAGE COLLECTION)

  Auto Garbage Collection Algorithm

• ENCRYPTION SUPPORT

  AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)

• WWN SUPPORT

  Not Supported

• DEVICE SLEEP MODE SUPPORT

  Yes

Performance²⁾

• SEQUENTIAL READ

  250GB: Up to 6,400 MB/s
  500GB: Up to 6,900 MB/s
  1TB: Up to 7,000 MB/s
  2TB: Up to 7,000 MB/s

• SEQUENTIAL WRITE

  250GB: Up to 2,700 MB/s
  500GB: Up to 5,000 MB/s
  1TB: Up to 5,000 MB/s
  2TB: Up to 5,100 MB/s

• RANDOM READ (4KB, QD32)

  250GB: Up to 500,000 IOPS
  500GB: Up to 800,000 IOPS
  1TB: Up to 1,000,000 IOPS
  2TB: Up to 1,000,000 IOPS

• RANDOM WRITE (4KB, QD32)

  250GB: Up to 600,000 IOPS
  500GB: Up to 1,000,000 IOPS
  1TB: Up to 1,000,000 IOPS
  2TB: Up to 1,000,000 IOPS

• RANDOM READ (4KB, QD1)

  250GB: Up to 22,000 IOPS
  500GB: Up to 22,000 IOPS
  1TB: Up to 22,000 IOPS
  2TB: Up to 22,000 IOPS

• RANDOM WRITE (4KB, QD1)

  250GB: Up to 60,000 IOPS
  500GB: Up to 60,000 IOPS
  1TB: Up to 60,000 IOPS
  2TB: Up to 60,000 IOPS

Environment

• AVERAGE POWER CONSUMPTION
  (SYSTEM LEVEL)³⁾

  250GB: Average 5 W Maximum 7 W
  512GB: Average 5.9 W Maximum 7.4 W
  1TB: Average 6.2 W Maximum 8.9 W
  2TB: Average 6.1 W Maximum 7.2 W
  (Burst mode)

• POWER CONSUMPTION (IDLE)³⁾

  Max. 35 mW

• POWER CONSUMPTION (DEVICE SLEEP)

  Max. 5 mW

• ALLOWABLE VOLTAGE

  3.3 V ± 5 % Allowable voltage

• RELIABILITY (MTBF)

  1.5 Million Hours Reliability

• OPERATING TEMPERATURE

  0 – 70 ℃

• SHOCK

  1,500 G & 0.5 ms (Half sine)
