Product Name

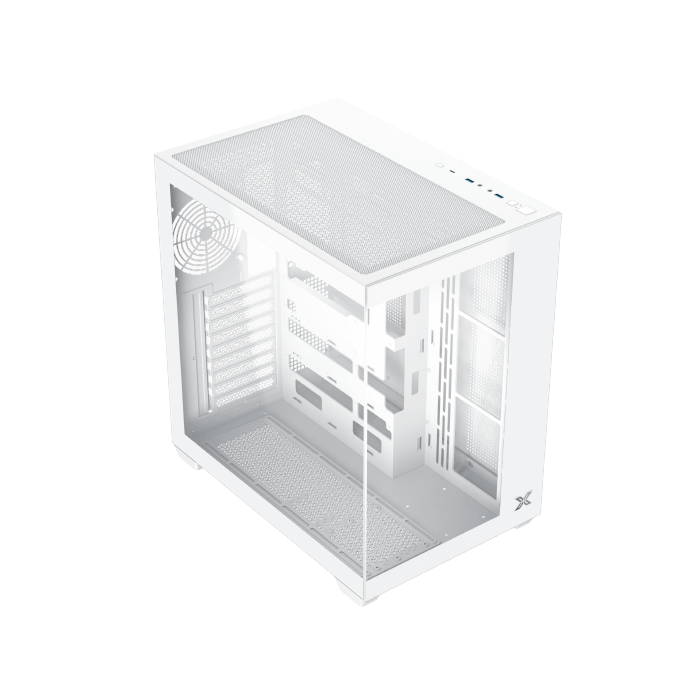

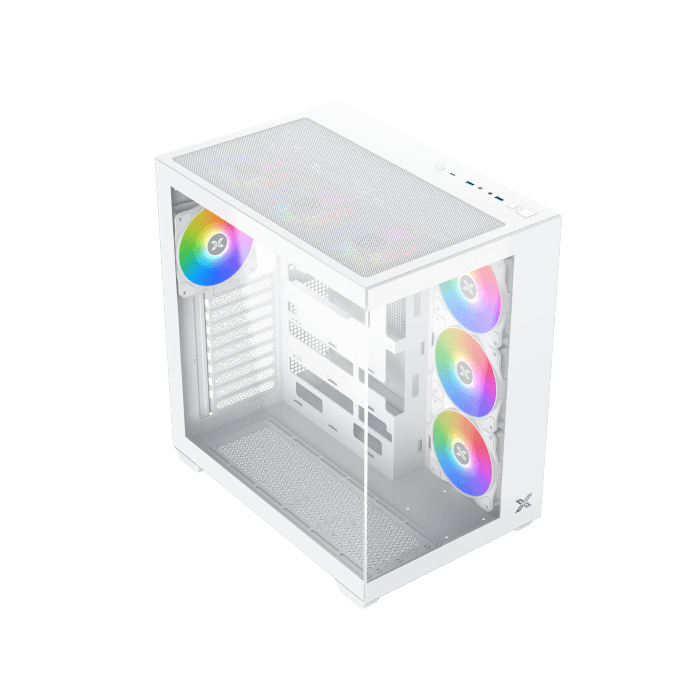

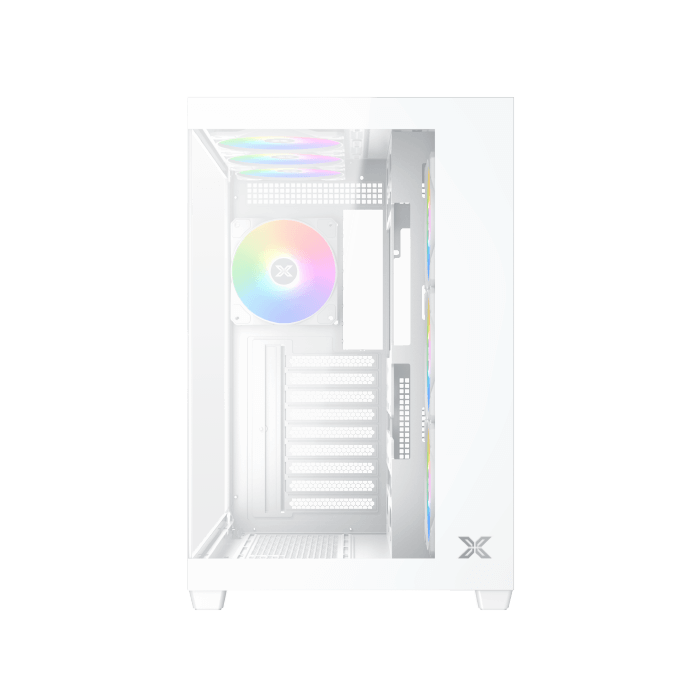

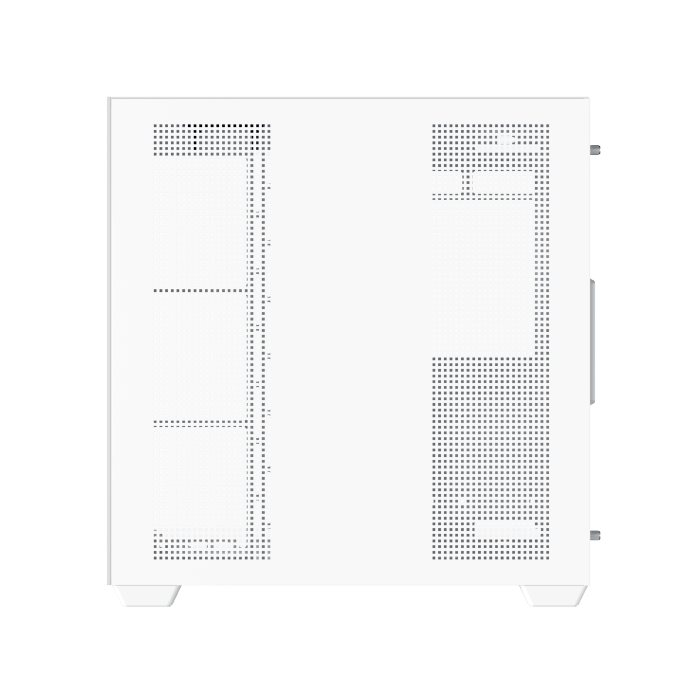

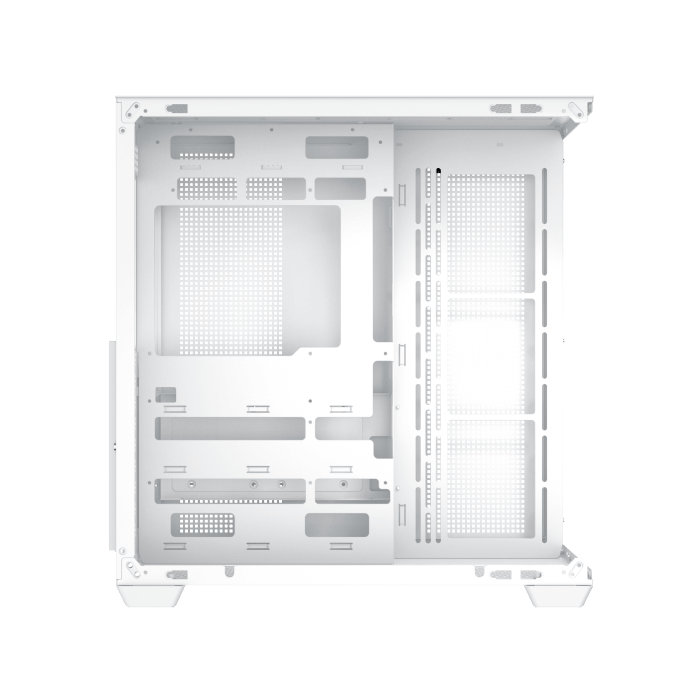

AQUA V Air Arctic
Dimensions
427x285x455mm (LxWxH)
Fan Support
Top: 120mm x3 or 140mm x2
MB: 120mm x3 or 140mm x2
Bottom: 120mm x3 (Whithout 3.5” HDD)
Rear: 120mm x1
Drive Bays
Bottom Panel: 3.5” x1 or 2.5”x2
HDD Cage: 3.5” x1 & 2.5” x2
CPU Cooler Clearance
165mm
GPU Length Limitation
410mm
PSU Length Limitation
220mm
Material
Steel
Expansion Slots
9 Standard Slots
Motherboard Support
ATX (Support Back Plug)
Micro ATX (Support Back Plug)
Mini ITX
Power Supply
Standard PS2
ATX PSU
Radiator Support
Top: 240/280/360
MB: 240/280/360
Bottom: 240/360
Rear: 120
I/O Panel
USB 3.0 x 2
USB-C x 1
HD Audio
