SPECIFICATIONS
Model Name GeForce RTX™ 3060 Ti GAMING X
Graphics Processing Unit NVIDIA®
GeForce RTX™ 3060 Ti
Interface PCI Express®
Gen 4
Core Clocks Boost: 1770 MHz
CUDA®
CORES 4864
Memory Speed 14 Gbps
Memory 8GB GDDR6
Memory Bus 256-bIt
Output
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K 120Hz HDR, 8K 60Hz
and Variable Refresh Rate as specified in
HDMI 2.1)
HDCP Support Y
Power consumption 220W
Power connectors 8-pin x 1 + 6-pin x 1
Recommended PSU 600W
Card Dimension (mm) 278 x 131 x 51 mm
Weight (Card / Package) 1007g / 1596g
DirectX Version Support 12 API
OpenGL Version Support 4.6
Maximum Displays 4
VR Ready Y
G-SYNC®
technology Y
Adaptive Vertical Sync Y
Digital Maximum Resolution 7680×4320

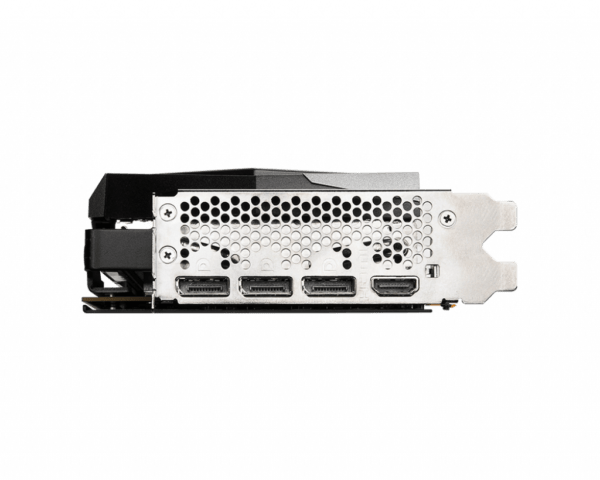

CONNECTIONS
1. DisplayPort
2. HDMI
FEATURES
TWIN FROZR 8
TWIN FROZR 8 offers the perfect balance between cool
temperatures and quiet fans during endless gaming sessions.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
TORX FAN 4.0
A masterpiece of teamwork, fan blades work in pairs to create
unprecedented levels of focused air pressure.
Airflow Control
Don’t sweat it, Airflow Control guides the air to exactly where it
needs to be for maximum cooling.
Core Pipe
Precision-machined heat pipes ensure max contact and spread
heat along the full length of the heatsink.

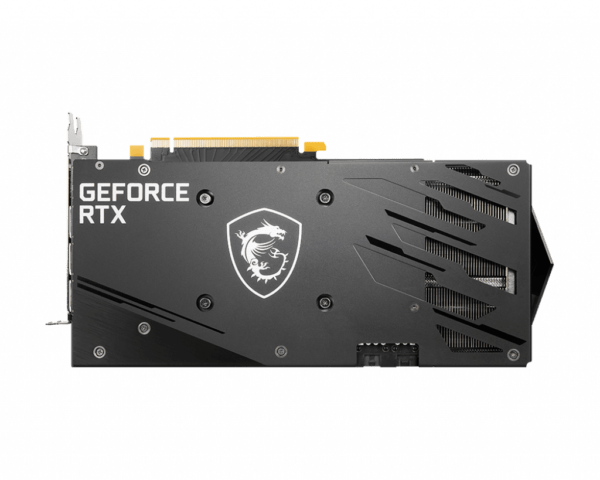

Metal Backplate
Thermal pads under the sturdy metal backplate provide additional
cooling while the flow-through ventilation reduces trapped heat.
Dragon Center
MSI’s exclusive Dragon Center software lets you monitor, tweak
and optimize MSI products in real-time.
Mystic Light
Mystic Light gives you complete control of the RGB lighting for
MSI devices and compatible RGB products.
https://www.msi.com/Graphics-Card/GeForce-RTX-3060-Ti-GAMING-X/Overview
