Model Name GeForce RTX™ 3060 Ti VENTUS 2X 8G OCV1
Graphics Processing Unit NVIDIA® GeForce RTX™ 3060 Ti
Interface PCI Express® Gen 4
Core Clocks Boost: 1695 MHz
CORES 4864 Units
Memory Speed 14 Gbps
Memory 8GB GDDR6
Memory Bus 256-bit
DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified
in HDMI 2.1)
HDCP Support Y
Power consumption 200 W
Power connectors 8-pin x 1
Recommended PSU 600 W
Card Dimension (mm) 235 x 124 x 42 mm
Weight (Card / Package) 685 g / 1041 g
DirectX Version Support 12 API
OpenGL Version Support 4.6
Maximum Displays 4
VR Ready Y
Adaptive Vertical Sync Y
Digital Maximum Resolution 7680 x 4320

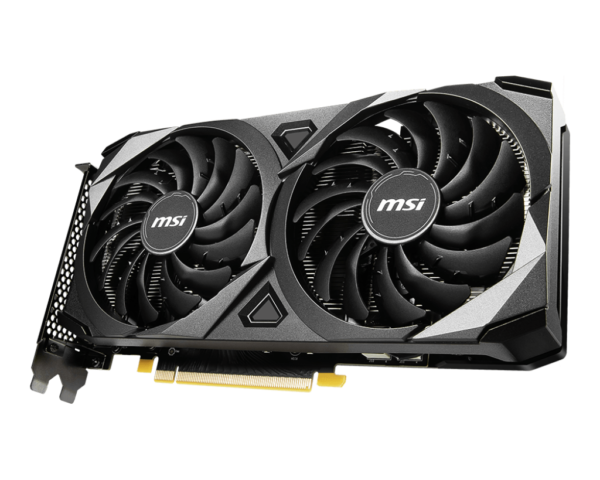

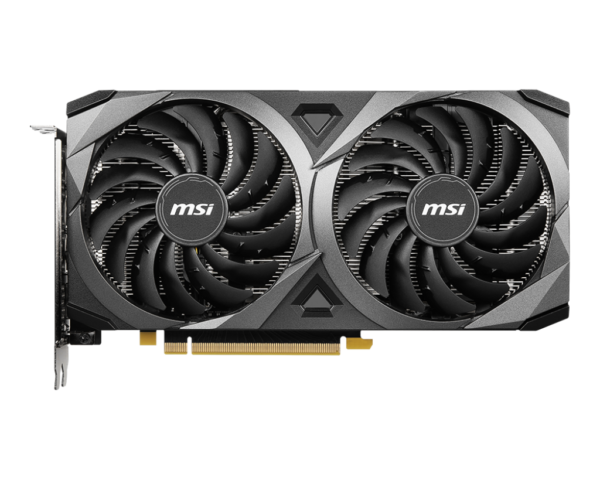

Two fans and a huge heatsink ensure a cool and quiet experience
TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design creates high static
pressure and pushes the limits of thermal performance.
The fans completely stop when temperatures are relatively low,
eliminating all noise.
An abundance of thermal pads use any chance for additional heat
transfer directly from the components.
The custom PCB has been engineered with hardened circuits and
optimized trace routing for performance and reliability.
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
