Product Specifications
Model No.
SST-NP240-ARGB
Application
Intel LGA 115x/1200/1700/1851/2011/2066
AMD Socket AM5/AM4
AMD Socket AM5/AM4

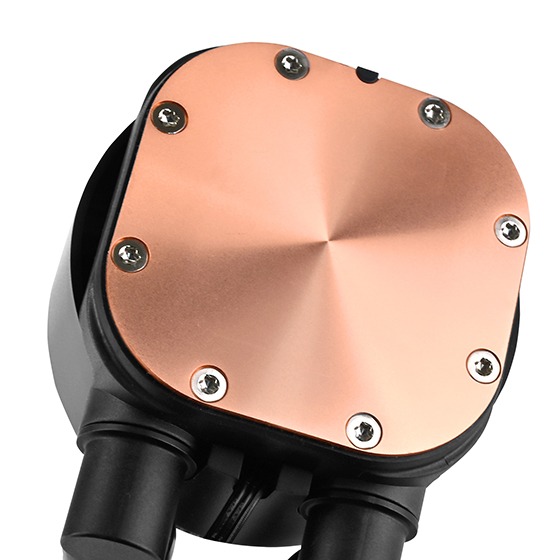

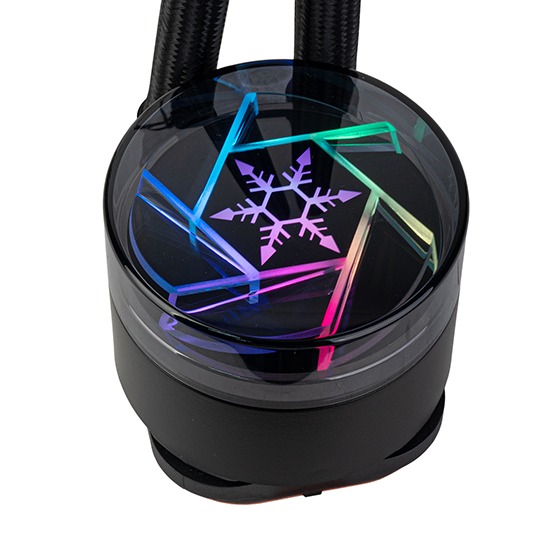

Water block
Dimension
- 66mm (W) x 63mm (H) x 81mm (D)
2.6″ (W) x 2.48″ (H) x 3.19″ (D)
Material
- Copper base with plastic body
Pump
Motor speed
- 3,100 ±10% RPM
Rated Voltage
- Pump：12V
LED：5V
Rated Current
- Pump：0.27A
LED：0.68A
Connectors
- 3 Pin & 4-1 Pin ARGB (5V LED)

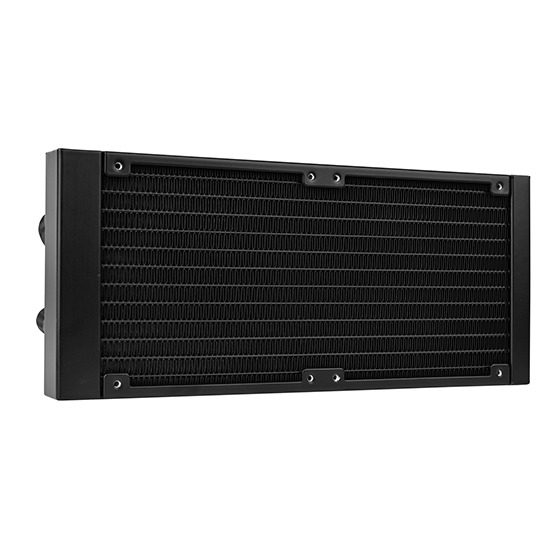

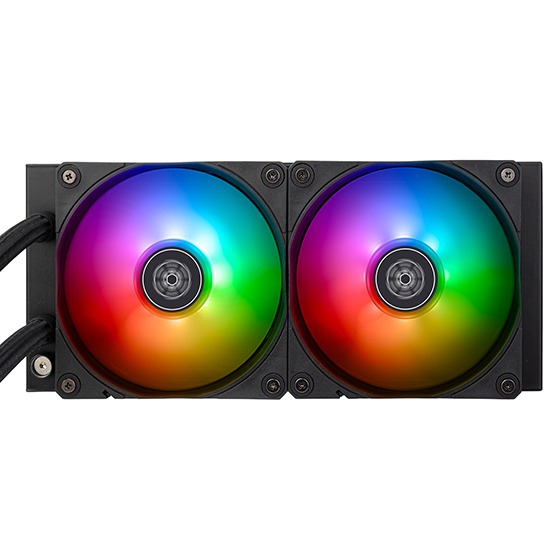

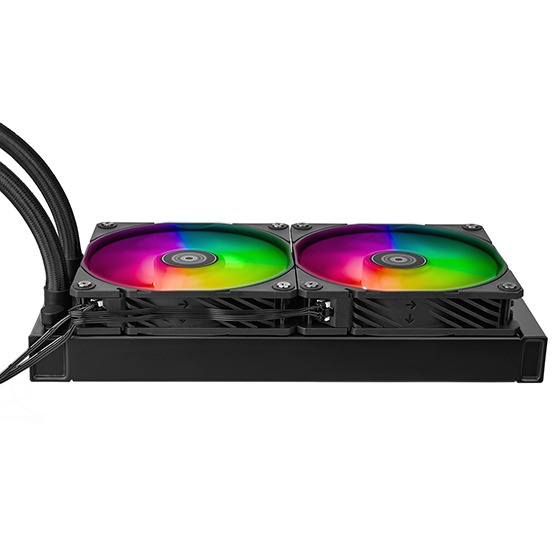

Radiator
Dimension
- 120mm (W) x 28mm (H) x 277mm (D)
4.72″ (W) x 1.1″ (H) x 10.91″ (D)
Material
- Aluminum
Tube
Length
- 460mm
Material
- Rubber

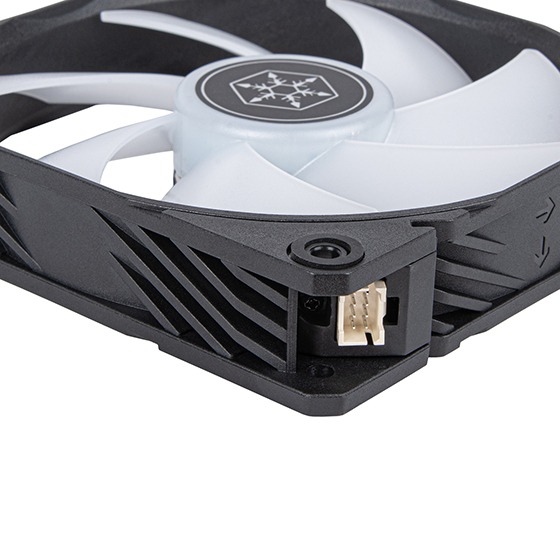

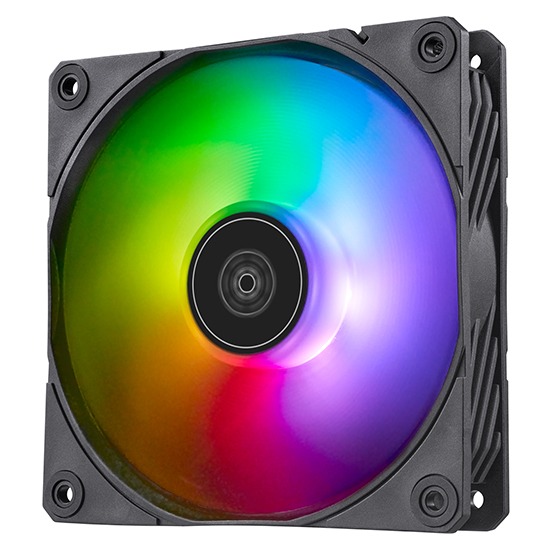

Fan
Dimension
- 120mm (W) x 25mm (H) x 120mm (D)
Speed
- 500 ~ 2,200 RPM
Noise level
- 12.1~33.1 dBA
Rated Voltage
- 12V
Max airflow
- 75.74 CFM
Max air pressure
- 3.4mmH2O
Connector
- 4 Pin PWM & 4-1 Pin ARGB (5V LED)
Remark
Please check to make sure the control box and motherboard RGB port that you want to connect are the same as NovaPeak’s RGB port definition. Incorrect connection may cause malfunction
