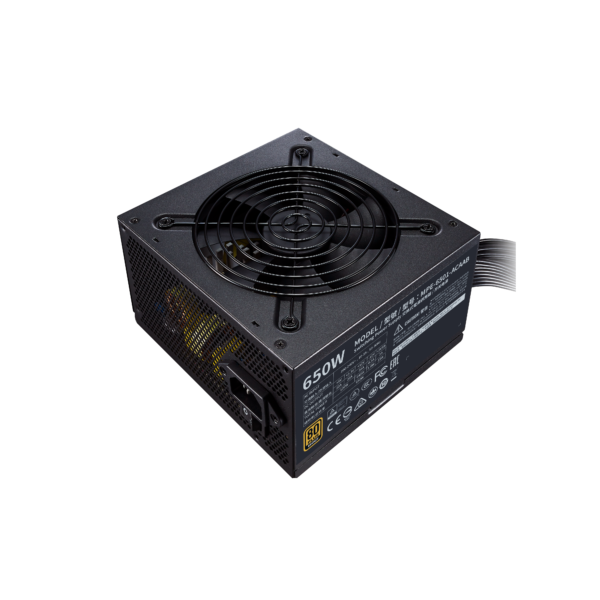

Product Name MWE 650 Bronze V2
Item Code MPE-6501-ACAAB
ATX Version ATX 12V Ver. 2.52
PFC Active PFC
Input Voltage 100 – 240V
Input Current 10 – 5A
Input Frequency 50 – 60Hz
Dimensions (L x W x H) 140 x 150 x 86mm
Fan Size 120
Fan Bearing HDB
Fan Speed 2400 RPM
Noise @ 20% 11.06dB-A
Noise @ 50% 22.3dB-A
Noise @ 100% 41.3dB-A
Efficiency 85% Typically
80 PLUS Rating 80 PLUS Bronze
ErP 2014 Lot 3 Yes
Operating Temperature 40°C
Power Good Signal 100 – 500 ms
Hold Up Time >18ms at 100% full load@230Vac
MTBF >100,000 hours
Protections OVP / OPP / SCP / UVP / OTP
Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus,
FCC, BSMI, KC, CB
Connectors ATX 24 Pin x1
EPS 4+4 Pin x1
EPS 8 Pin x1
SATA x8
Peripheral 4 Pin x4
PCI-e 6+2 Pin x4
AC INPUT 100 – 240V~ 10 – 5A 50 – 60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vstb
20A 20A 54A 0.3A 3A
TOTAL POWER 120W 648W 3.6W 15W
650W
