InterfacePCI-Express 4.0 x4, NVMe 1.4
-
Form FactorM.2 2280
-
Total Capacity1000GB
-
NAND3D TLC NAND Flash
-
External DDR CacheDDR4 1GB
-
Sequential Read speedUp to 7300 MB/s
-
Sequential Write speedUp to 6000 MB/s
-
DimensionSSD without Heatsink: 80 x 22 x 2.3 mm (Single Side)
SSD with Heatsink: 80.5 x 23.5 x 11.25 mm -
Mean time between failure (MTBF)1.6 million hours
-
Max. Operating PowerRead: 6.6W
Write: 6.7W -
Power Consumption (Idle, PS3)30mW
-
Power Consumption(PS4, L1.2)3mW
-
Temperature (Operating)0°C to 70°C
-
Temperature (Storage)-40°C to 85°CNote
- • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
- • Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
- • Speeds based on internal testing. Actual performance may vary.
- • 1GB = 1 billion bytes. Actual useable capacity may vary.
-
-
Test ConfigurationOS: Windows 11 22H2 (OS build 22621.819)
CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G
Memory: DDR5 5600 16GBx2
Chipset: AM5 X670 (X670E AORUS MASTER)

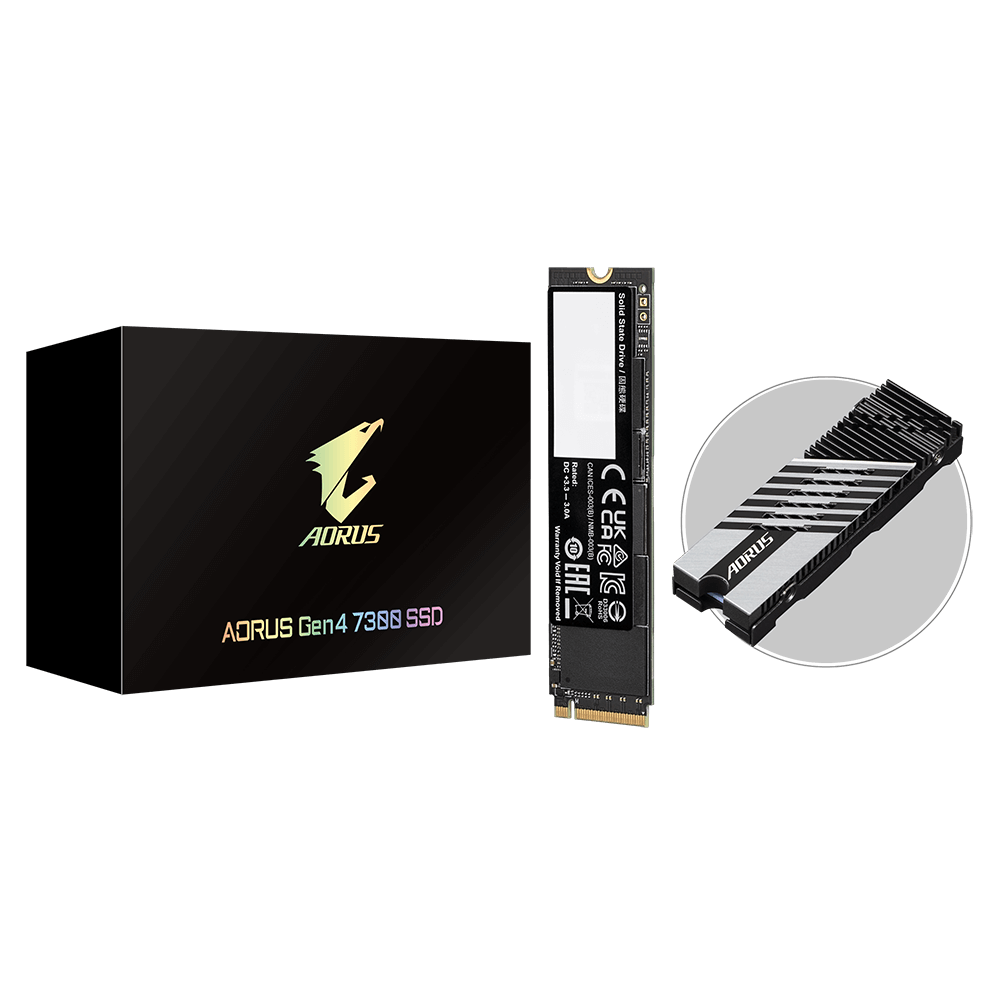

AORUS Gen4 7300 SSD delivers sequential read up to 7.3GB/s with 8 Channel controller- Phison E18- and 3D TLC NAND. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.
- + PCIe 4.0×4, NVMe 1.4 Interface
- + DDR4 DRAM cache
- + 8 CH with 32 CEs
- + Supports SMART and TRIM
- + Support AES-256 Encryption
- + Offered with an optional aluminum Heat Spreaders
- + PS5 ready
Selected High Speed 3D TLC NAND Flash (1600+ MT/s)
The ultra high speed 3D TLC NAND Flash is operating at 1600+ MT/s, which is 50% more than the prevision version that leads to better performance.
- Form Factor: M.2 2280
- Interface: PCI-Express 4.0 x4, NVMe 1.4
- Total Capacity: 1000GB*
- Sequential Read Speed : up to 7300 MB/s**
- Sequential Write speed : up to 6000 MB/s**
- Wear Leveling, Over-Provision technologies
- TRIM & S.M.A.R.T supported
- AES-256 Supported
- High Efficient Heat Spreader with Nanocarbon Coating
