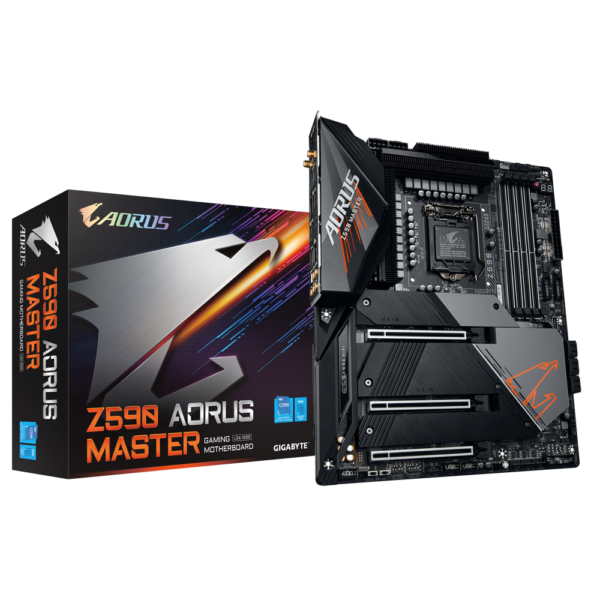

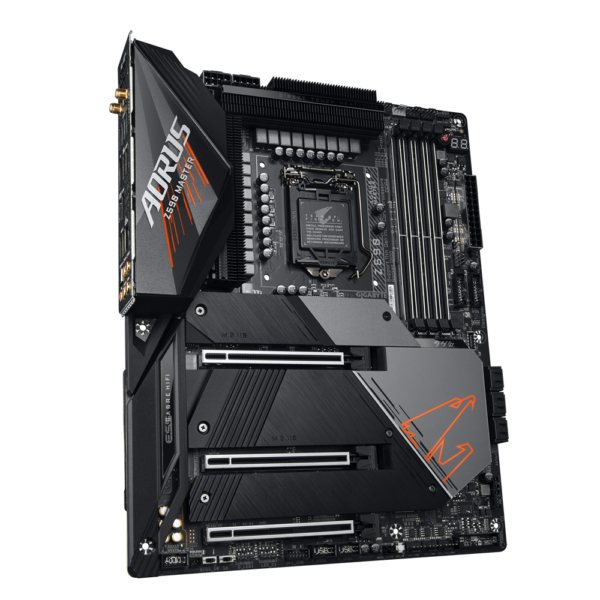

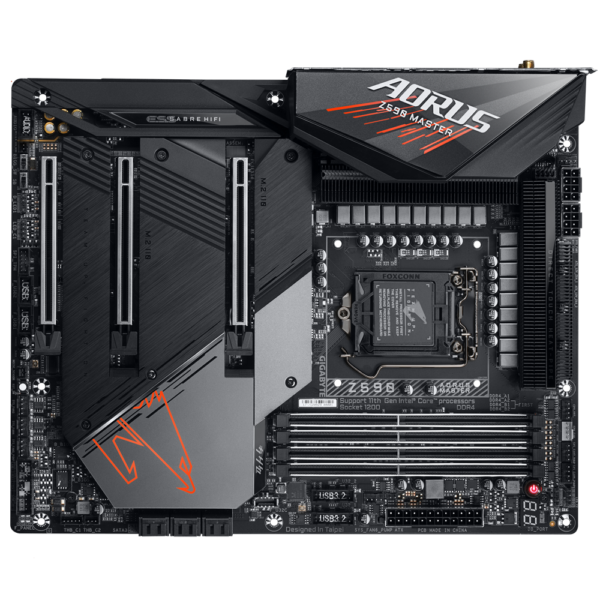

GIGABYTE Z590 AORUS MASTER LGA 1200

1. 11th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors
2. 10th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors / Intel^® Core™ i3 processors/ Intel^® Pentium^® processors / Intel^® Celeron^® processors*
   * Limited to processors with 4 MB Intel^® Smart Cache, Intel^® Celeron^® G5xx5 family.
3. L3 cache varies with CPU

(Please refer to “CPU Support List” for more information.)

1. Intel^® Z590 Express Chipset

1. 11th Generation Intel^® Core™ i9/i7/i5 processors:
   Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2. 10th Generation Intel^® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MHz memory modules
3. 10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
   Support for DDR4 2666/2400/2133 MHz memory modules
4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

1. Realtek^® ALC1220-VB codec
   * The front panel line out jack supports DSD audio.
2. ESS ES9118 DAC chip
3. Support for DTS:X^® Ultra
4. High Definition Audio
5. 2/4/5.1/7.1-channel
6. Support for S/PDIF Out

1. Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

* Wi-Fi 6E and its 6GHz carrier frequency support may vary by country

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
   (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
   * Supported by 11th Generation processors only.
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   (The PCIEX4 slot conforms to PCI Express 3.0 standard.)

1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
   * Supported by 11th Generation processors only.

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
3. 6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

1. * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Intel^® Optane™ Memory Ready

1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2×2 support
2. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

1. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset+USB 2.0 Hub:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 3 x M.2 Socket 3 connectors
10. 6 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
14. 2 x USB 3.2 Gen 1 headers
15. 2 x USB 2.0/1.1 headers
16. 1 x noise detection header
17. 2 x Thunderbolt™ add-in card connectors
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x power button
20. 1 x reset button
21. 2 x temperature sensor headers
22. 1 x Clear CMOS jumper
23. 2 x BIOS switches
24. Voltage Measurement Points

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

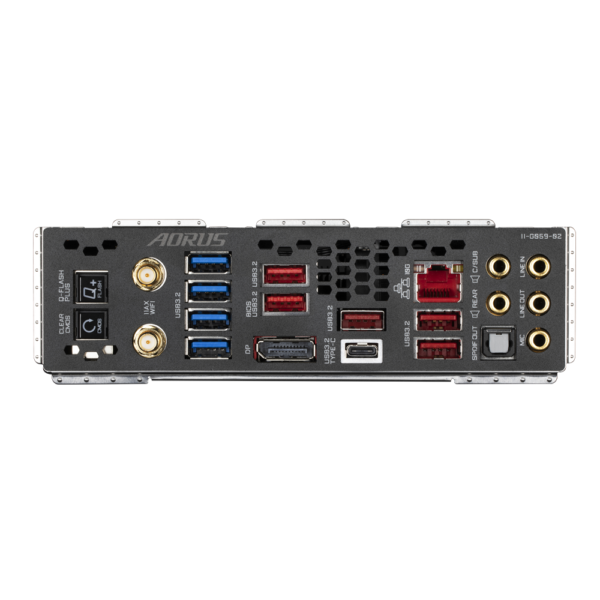

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 2 x SMA antenna connectors (2T2R)
4. 1 x DisplayPort
5. 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
6. 5 x USB 3.2 Gen 2 Type-A ports (red)
7. 4 x USB 3.2 Gen 1 ports
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
7. Noise detection

1. 2 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   System Information Viewer
2. Support for Q-Flash Plus
3. Support for Q-Flash
4. Support for Xpress Install

1. Norton^® Internet Security (OEM version)
2. cFosSpeed

1. Support for Windows 10 64-bit

1. ATX Form Factor; 30.5cm x 24.4cm
