SPECIFICATIONS
Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (fully modular)
Fan Size 135 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 150 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100~240 VAC
Power Watt 1000W
Power Excursion 2000W (*up to 200% of the PSU’s rated power for
100μs)
Input Frequency Range 50~60 Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP

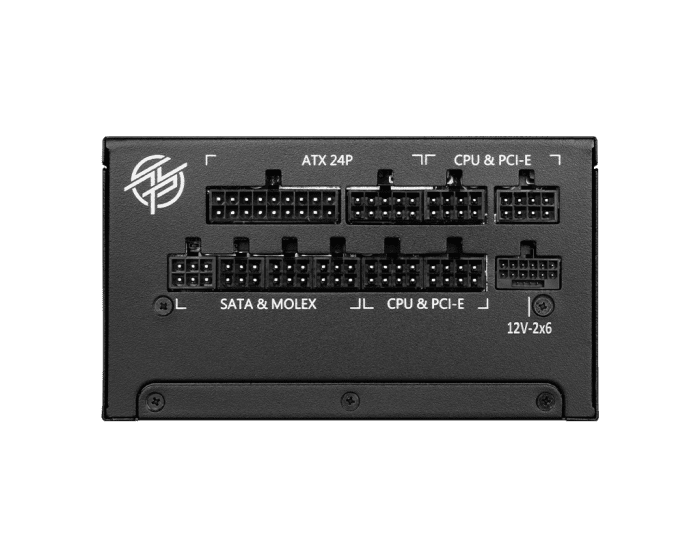

ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.0 (16 pin) 1 (600W)
PCI-E (6+2 pin) 6
SATA (15 pin) 12
MOLEX (4 pin) 4
FDD (4 pin) 1
MPG A1000G PCIE5
Supports Nvidia®
GeForce RTXTM 40 Series
graphics cards
Full modular design
Flat cables
80 Plus Gold certified for high efficiency
100% all Japanese 105o
C capacitor
Active PFC design
Industrial level protection with
OVP,OCP,OPP,OTP, SCP,UVP
LLC Half Bridge Topology with DC-DC
module design
