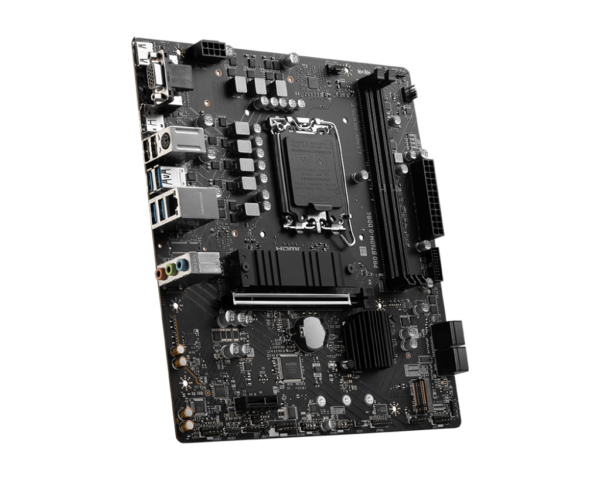

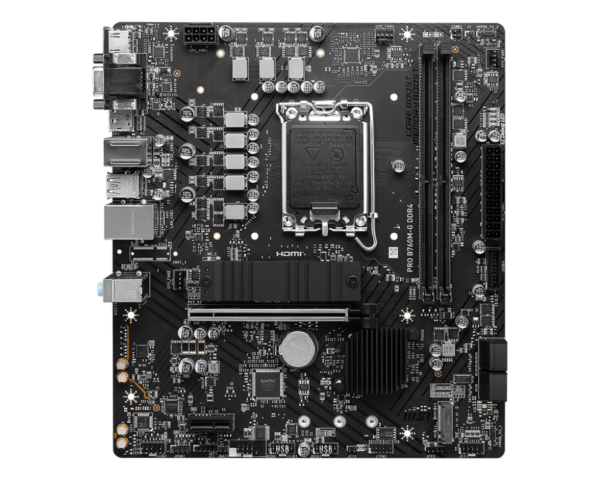

MSI PRO B760M-G DDR4 LGA 1700





PRO B760M-G DDR4

  • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
EGP 5,500.00

Category:
Tags: , , , ,
Brands:: MSI
MSI

Description

CHIPSET INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8125B 2.5Gbps LAN
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS

  1. HDMI™
  2. VGA
  3. DisplayPort
  4. Keyboard / Mouse
  5. 2.5G LAN
  6. Audio Connectors
  7. USB 2.0
  8. USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION (W × L) mATX
220mmx243.84mm

Additional information

MOTHERBOARD CHIPSET

B760

MOTHERBOARD FORM FACTOR

M-ATX

MOTHERBOARD MANUFACTURERS

MSI

MOTHERBOARD SERIES

INTEL B760

MOTHERBOARD PLATFORM

INTEL

MOTHERBOARD SOCKET

LGA 1700
