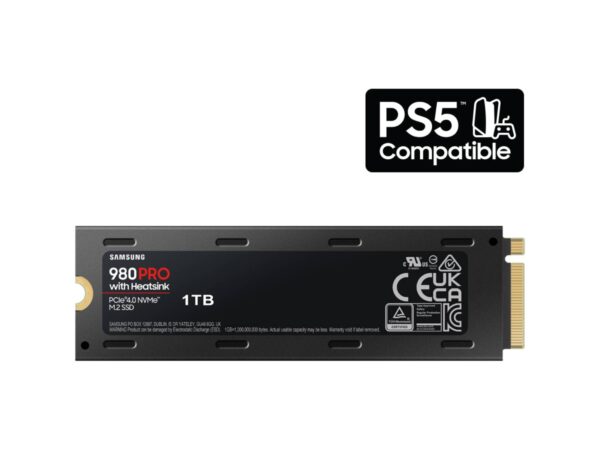

SAMSUNG 980 PRO With Heatsink 1TB GEN4.0

Product Type

NVMe™ SSD

Family Line

980 PRO with Heatsink PCIe® 4.0 NVMe™ SSD

Capacity

1TB

Interface

PCIe^® 4.0

Compatibility

PC & Playstation^® 5

Encryption

AES 256-bit (SED), TCG V2.0, Encrypted Drive (IEEE1667)

Interface

PCIe Gen 4.0 x4, NVMe 1.3c

Read/Write Speeds

7,000/5,000MB/s

Usage Application

Client PCs, Game Consoles

Capacity

1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Sequential Read Speed

Up to 7,000 MB/s * Performance may vary based on system hardware & configuration

Sequential Write Speed

Up to 5,000 MB/s * Performance may vary based on system hardware & configuration

Compatibility

980 PRO is backward compatible with PCIe 3.0. Sequential performances (up to): 3450 MB/s (1TB), 3470 MB/s (2TB) for writes. Random (up to): 690K IOPS (1TB), 680K IOPS (2TB) for reads, 660K IOPS (1TB), 630K IOPS (2TB) for writes.

Cache Memory

Samsung 1GB Low Power DDR4 SDRAM

Trim Support

Supported

S.M.A.R.T. Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

WWN Support

Not supported

Device Sleep Mode Support

Yes

Internal Storage

Samsung V-NAND 3-bit MLC

Thermal protection

Heatsink

Heatsink

Yes

M.2 2280

Yes

Average Power Consumption (system level)

*Average: 6.2 W*Maximum: 8.9 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 35 mW * Actual power consumption may vary depending on system hardware & configuration

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Shock

1,500 G & 0.5 ms (Half sine)

Product

M.2 (2280) with Heatsink complying PCI-SIG® D8 standard

Product

24 x 80 x 8.6 mm (with heatsink)

Product

Max 30.5g
