GPU

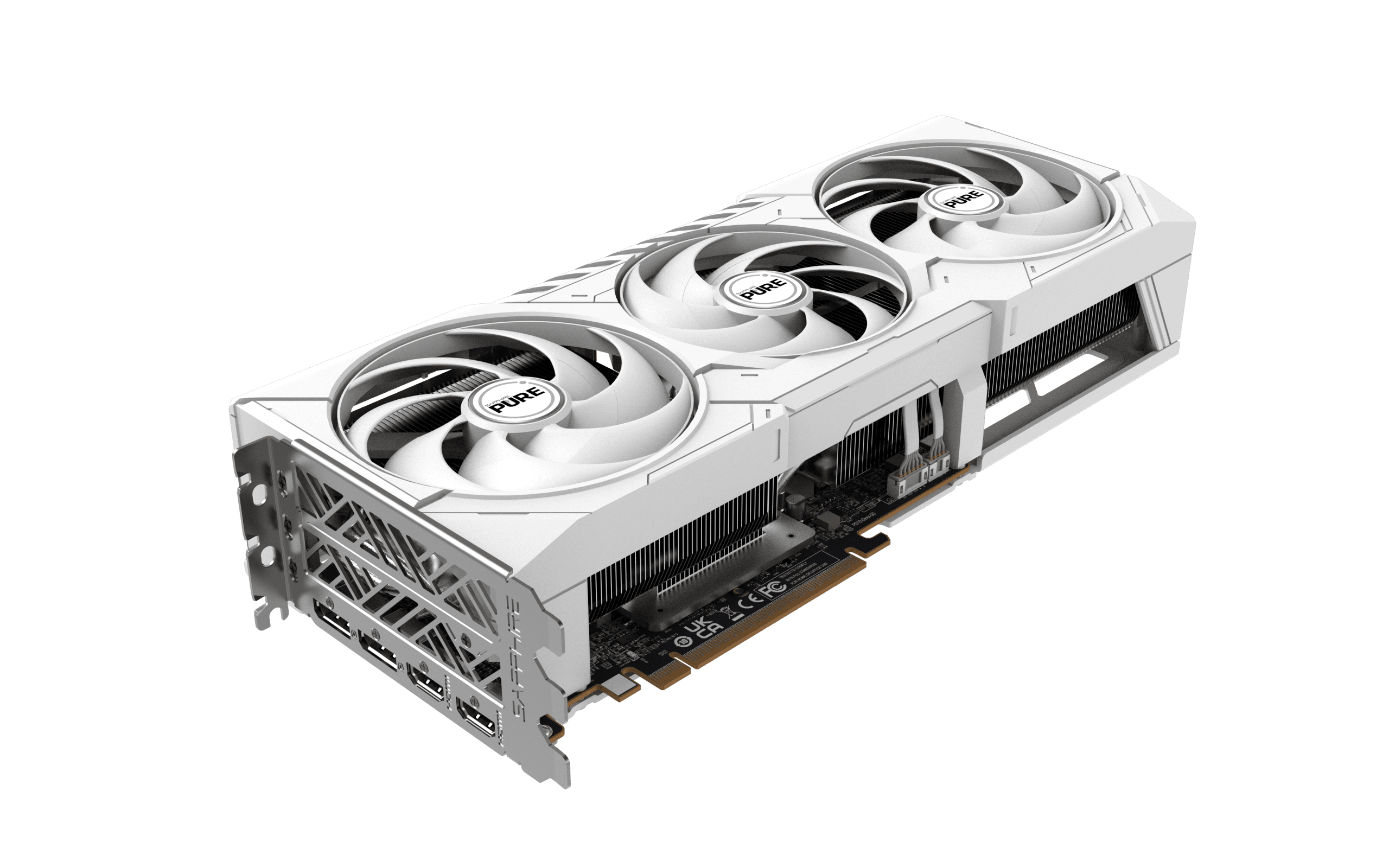

AMD Radeon™ RX 9070 XT Graphics Card
AMD RDNA™ 4 Architecture
AMD RDNA™ 4 Architecture
Engine Clock
- Boost Clock: Up to 3010 MHz
- Game Clock: Up to 2460 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
4096
Compute Units
64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
64
AI Accelerator
128
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
20 Gbps Effective
Displays
Maximum 4 Displays
Resolution
- HDMI®: 7680×4320
- DisplayPort™ 2.1a: 7680×4320
Interface
PCI-Express 5.0 x16
Output
- 2x HDMI®
- 2x DisplayPort™ 2.1a
BIOS Support
- UEFI
Game Index
4K
Sapphire Features
- Honeywell PTM7950 Thermal Interface Material (TIM)
- AeroCurve Fan Blade
- Free Flow
- FrameDefense
- Integrated Cooling Module
- Tri-X Cooling Technology
- High TG Copper PCB
- Optimized Composite Heatpipes
- Metal Backplate
- ARGB SAPPHIRE Logo
- Two-Ball Bearing Fans
- 14-Phase Digital Power Design
- Fuse Protection
- Intelligent Fan Control
- Precision Fan Control
- TriXX Supported
- Performance vs. Efficiency Quicksets
- Glow!
- TriXX Boost
- External RGB LED MB Synchronization
Accessories Bundled
- L-Shape Support Bracket
- 3pin 5V ARGB Cable
AMD Features
- AMD RDNA™ 4 Architecture
- 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- AMD HYPR-RX with AFMF 2
- AMD FidelityFX™ Super Resolution 4 with AI Upscaling
- DisplayPort™ 2.1a
- AMD Radiance Display™ Engine
- AMD Fluid Motion Frames 2 technology
- AMD Radeon™ Anti-Lag 2 technology
- AV1 Encode/Decode
- AMD FidelityFX™ technologies
- Microsoft® DirectX® 12 Ultimate
- AMD Noise Suppression
- AMD Freesync™ technology
- 16 GB of GDDR6 on 256-bit Memory Bus
- AMD smart technologies
- AMD Software: Adrenalin Edition™ application
Cooler Type
- Tri-X Cooling
- AeroCurve Fan Blade
- Free Flow
- Integrated Cooling Module
- High TG Copper PCB
- Optimized Composite Heatpipes
- Two-Ball Bearing
Form Factor
3 slot, ATX
Dimension: 320(L)X 120.25(W)X 61.6 (H)mm
Dimension: 320(L)X 120.25(W)X 61.6 (H)mm
Power Consumption
317W Typical Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
- Minimum 750 Watt Power Supply
- 2 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
- Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
- Colors of PCB or other components may differ from those illustrated.
- SAPPHIRE reserves the right to update or revise specifications without prior notice.
- All trademarks and logos are acknowledged as the property of their respective holders.
