Model
ASUS A31 PLUS Case
Case Size
Mid Tower
Motherboard Support
ATX
Micro-ATX
Mini-ITX
BTF motherboard compatible
Micro-ATX
Mini-ITX
BTF motherboard compatible
Drive Bays
2 x 2.5″/3.5″ Combo Bay
Expansion Slots
7
Front I/O Port
1 x headphone / Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen 2×2 Type C
2 x USB 3.2 Gen1
1 x USB 3.2 Gen 2×2 Type C
Tempered Glass
Front Side
Left Side
Left Side
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
Cooling Support (Top)
3 x 120 mm
2 x 140 mm
2 x 140 mm
Cooling Support (Rear)
1 x 120 mm
1 x 140 mm
1 x 140 mm
Pre-installed Fans (Rear)
1 x 120 mm
ARGB
ARGB
Pre-Installed Fan (Side)
3 x 120 mm
ARGB
ARGB
Maximum CPU Cooler Height
165 mm
Maximum GPU Length
380 mm
Maximum PSU Length
200 mm
Removable Dust Filters
Top
Bottom
Bottom

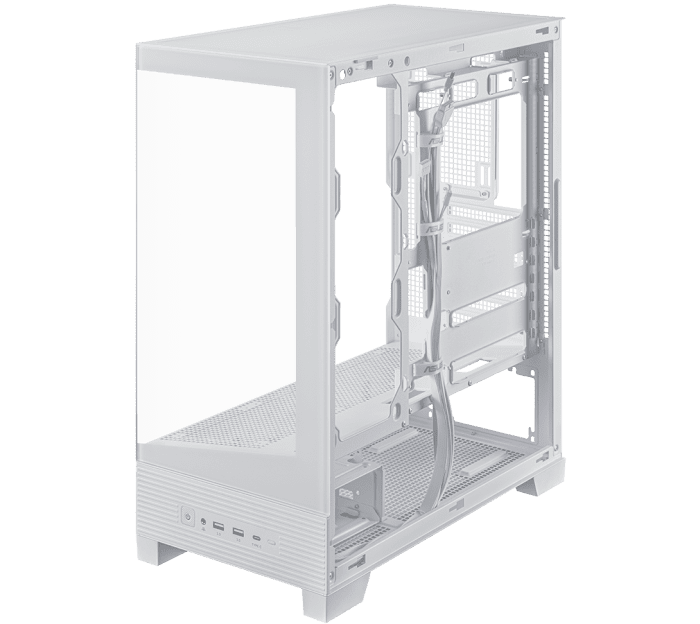

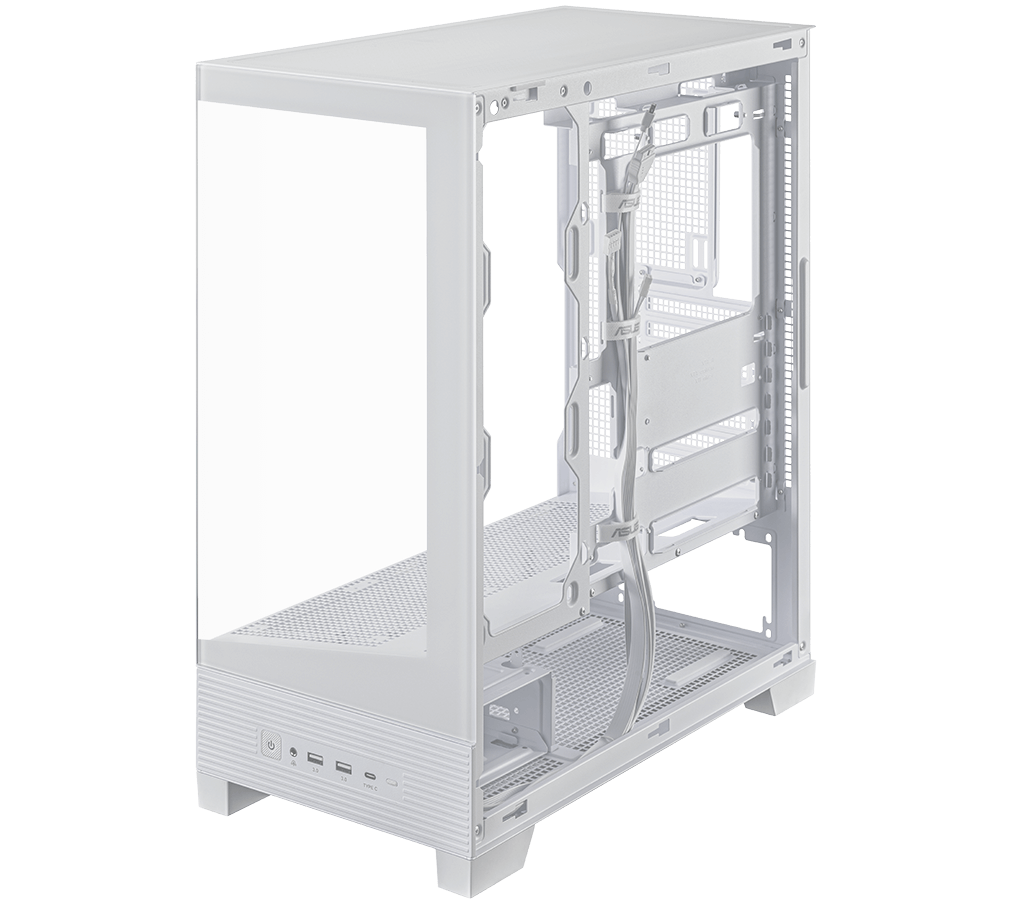

Maximum Cable Management Space
34 mm
Dimensions
238 x 511 x 435 mm
Weight
9.1 Kg
BTF motherboard compatible
Yes
