Model

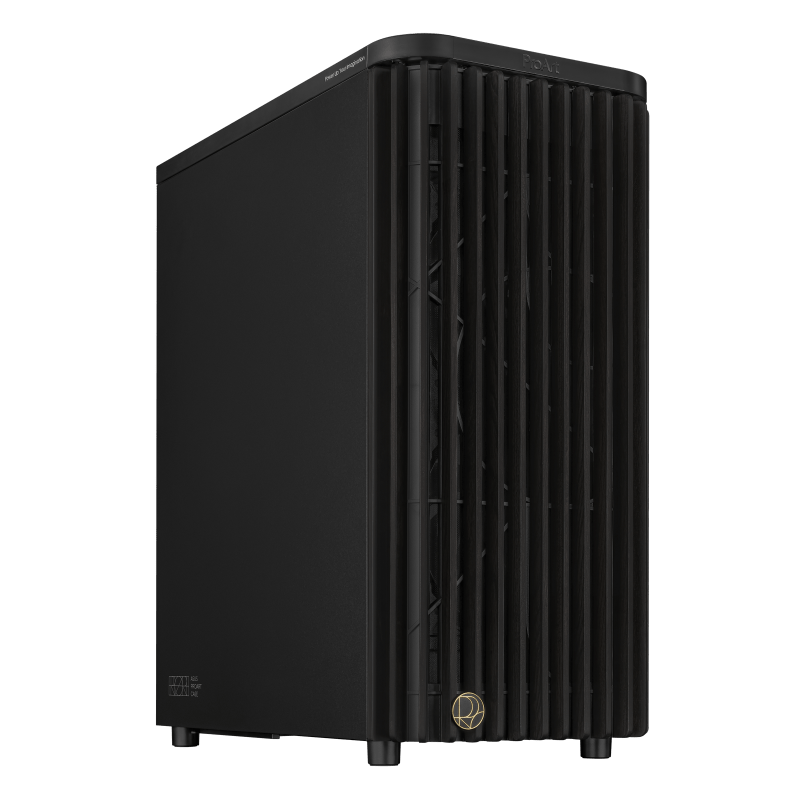

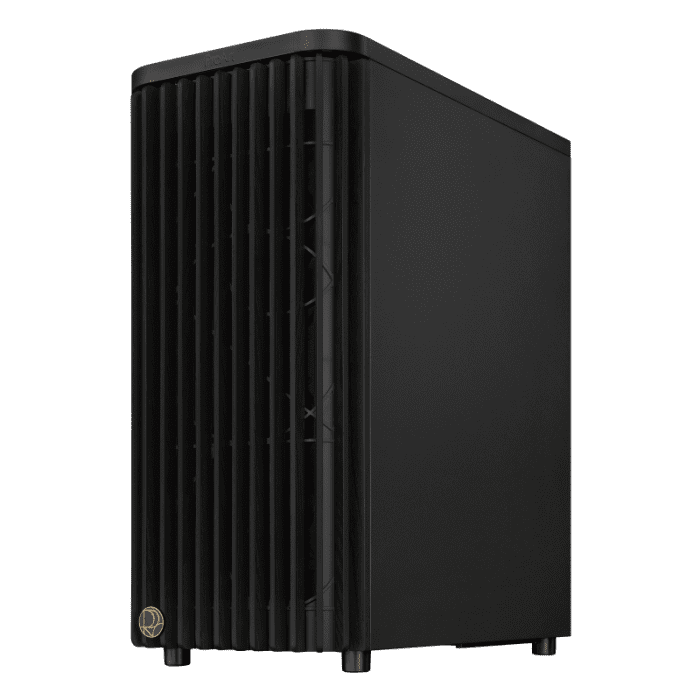

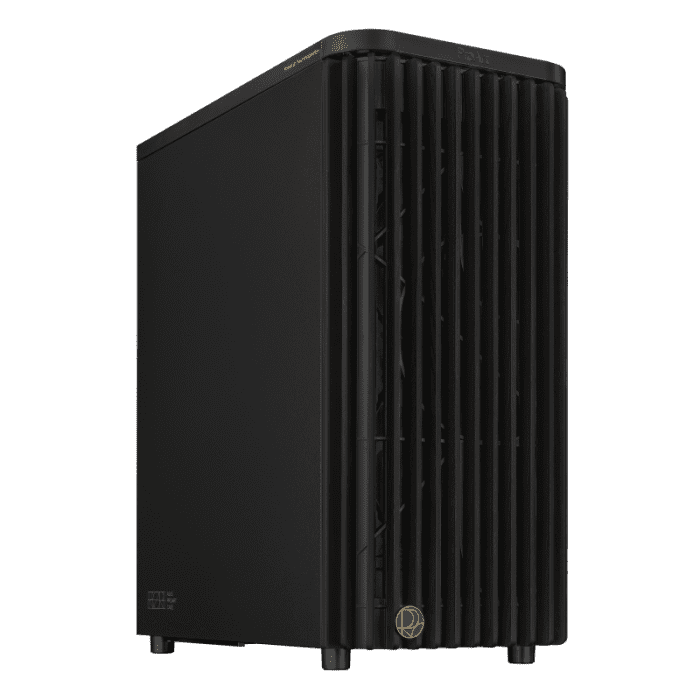

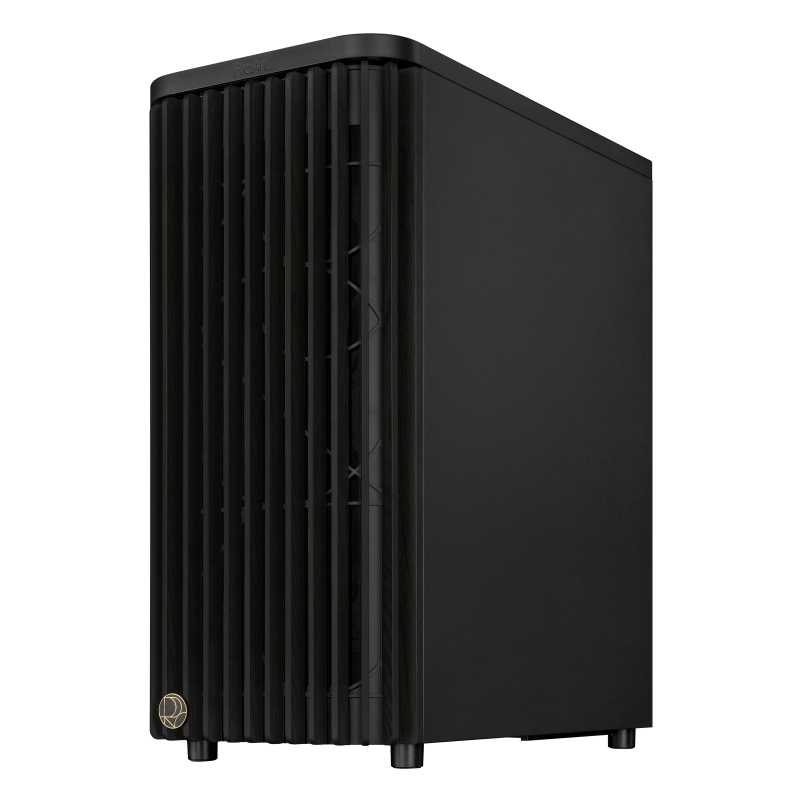

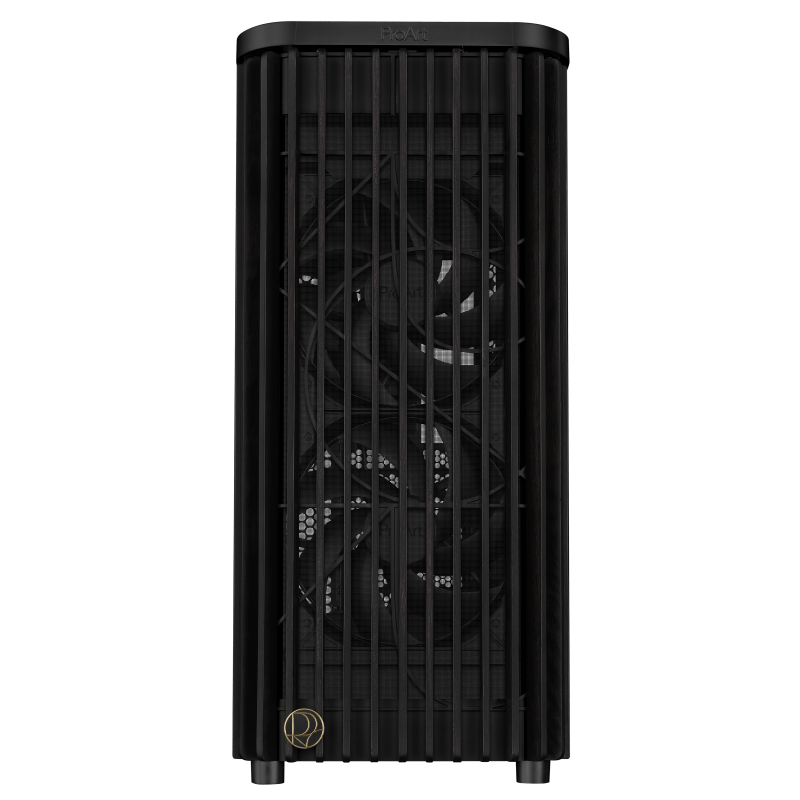

ProArt PA401 Wood Edition – Metal Panel
Motherboard Support
ATX
Drive Bays
2 x 2.5″ Bay
2 x 2.5″/3.5″ Combo Bay
2 x 2.5″/3.5″ Combo Bay
Expansion Slots
7

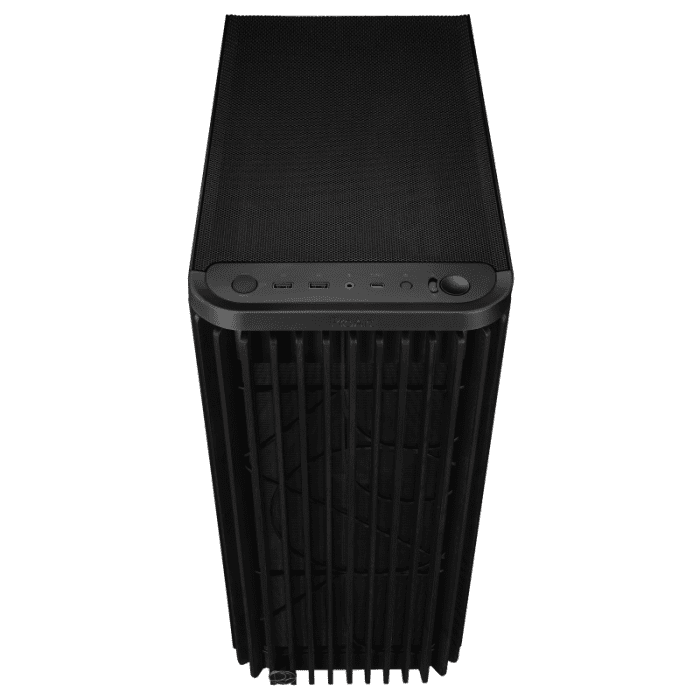

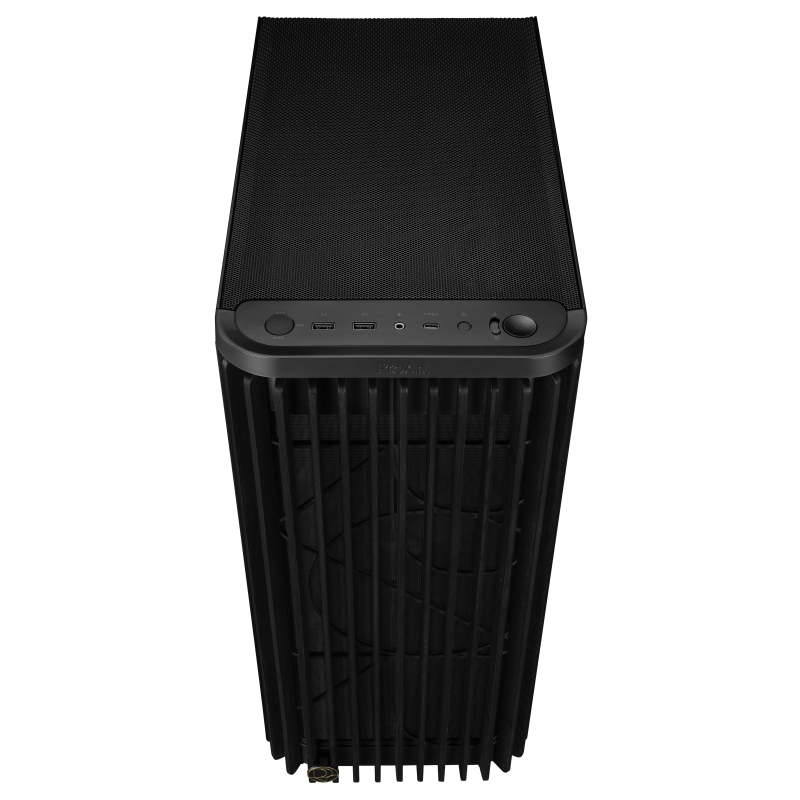

Front I/O Port
1 x headphone / Microphone
2 x USB 3.2 Gen1
1 x USB 3.2 Gen 2×2 Type C
2 x USB 3.2 Gen1
1 x USB 3.2 Gen 2×2 Type C
Radiator Support (Top)
120 mm
140 mm
240 mm
140 mm
240 mm
Cooling Support (Front)
2 x 140 mm
2 x 160 mm
2 x 160 mm
Cooling Support (Top)
2 x 120 mm
2 x 140 mm
2 x 140 mm
Cooling Support (Rear)
1 x 120 mm

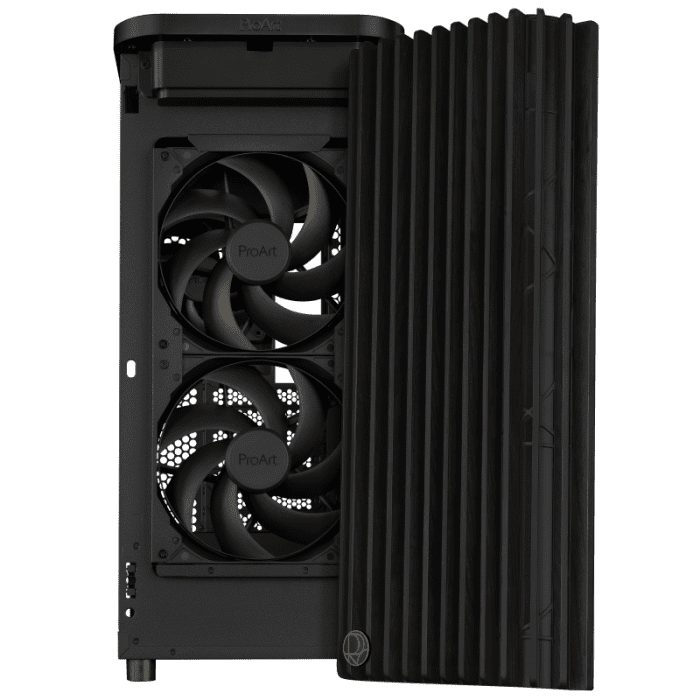

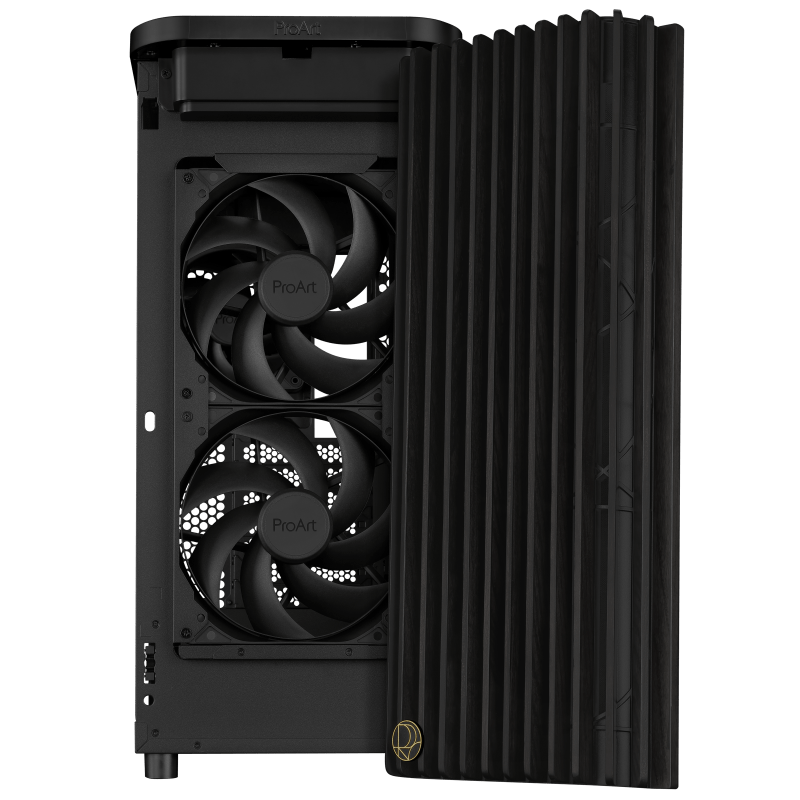

Pre-installed Fans (Front)
2 x 160 mm
Pre-installed Fans (Rear)
1 x 120 mm
Maximum CPU Cooler Height
160 mm
Maximum GPU Length
315 mm
Maximum PSU Length
170 mm
Removable Dust Filters
Front
Bottom
Bottom
Dimensions
412 x 225 x 503 mm (D*W *H)
Weight
8.61 Kg
Accessory
Pre-installed Fan Hub Support PWM Fan Output x 5
