| Model Number |
H700-IGNN-S00 |
|
| Exterior Color |
Titanium Grey |
|
| Materials – Exterior |
Steel, Plastic |
|
| Materials – Left Side Panel |
Tempered Glass, Steel, Plastic |
|
| Dimensions (L x W x H) |
556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions) |
|
| Motherboard Support |
Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB |
|
|
|
| 2.5″ / 3.5″ Drive Bays (Combo) |
9 (4*HDD bracket, 5*Screw+Rubber) |
|
| I/O Panel – USB Ports |
1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0) |
|
| I/O Panel – Audio In / Out |
1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack |
|
| Pre-installed Fans – Front |
2x SickleFlow 200 ARGB PWM |
|
| Pre-installed Fans – Rear |
2x SickleFlow 120 ARGB PWM |
|
| Pre-installed Fans – Bottom |
1x SickleFlow 120 ARGB PWM |
|
| Fan Support – Top |
2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket) |
|
| Fan Support – Front |
2x 200mm |
|
| Fan Support – Rear |
2x 120mm |
|
| Fan Support – Bottom |
3x 120/140mm |
|
| Fan Support – Side |
4x 120mm / 3x 140mm |
|
| Radiator Support – Top |
Up to 2x 360mm / 1x 420mm |
|
| Radiator Support – Rear |
Up to 240mm |
|
| Radiator Support – Bottom |
Up to 420/360mm |
|
| Radiator Support – Side |
Up to 480/420/360mm |
|
| Clearance – CPU Cooler |
166mm / 6.53 inch |
|
| Clearance – PSU |
200mm / 7.87″ |
|
|
|
| Cable Routing – Behind Motherboard Tray |
90-101mm |
|
| Included Accessories |

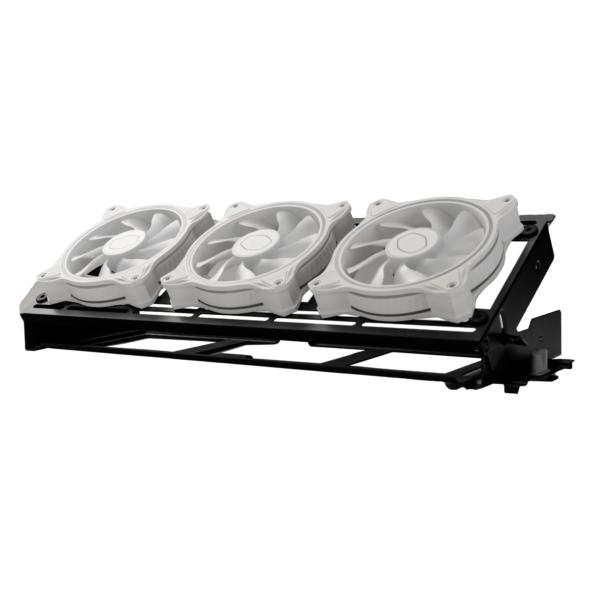

1x Rotatable Radiator Bracket, 1x LED Controller A1 (ARGB Gen2), 1x ARGB/PWM Hub |
|
| Dust Filters |
Bottom, Right side |
|
| Power Supply Support |
Bottom Mount, ATX |
|
|
|
|
|
|
|
| Note |
* For regular 30mm thick radiators, for thicker please reference compatibility sheet. |
|
