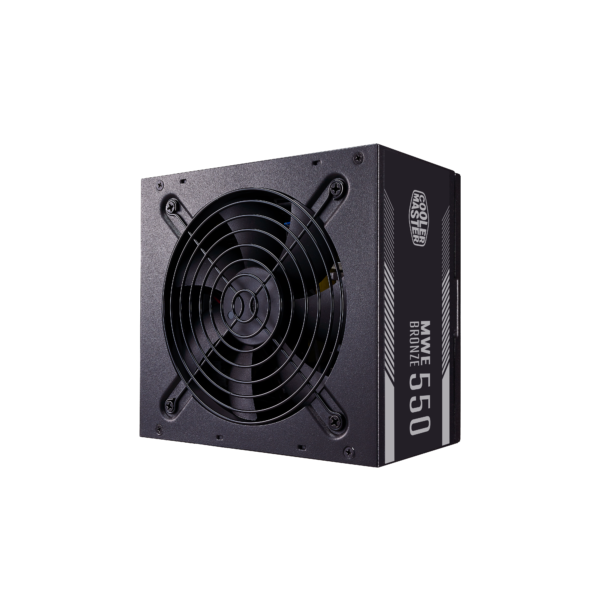

Product Name MWE 550 Bronze V2
Item Code MPE-5501-ACAAB
ATX Version ATX 12V Ver. 2.52
PFC Active PFC
Input Voltage 100-240V
Input Current 8-4A
Input Frequency 50-60Hz
Dimensions (L x W x H) 140 x 150 x 86mm
Fan Size 120
Fan Bearing HDB
Fan Speed 1500 RPM
Noise @ 20% 11.13dB-A
Noise @ 50% 15.6dB-A
Noise @ 100% 31.0dB-A
Efficiency 85% Typically
80 PLUS Rating 80 PLUS Bronze
ErP 2014 Lot 3 Yes
Operating Temperature 40°C
Power Good Signal 100 – 500 ms
Hold Up Time >18ms at 100% full load@230Vac
MTBF >100,000 hours
Protections OVP / OPP / SCP / UVP / OTP
Regulatory CCC, CE, TUV-RH, RCM, EAC, cTUVus,
FCC, BSMI, KC, CB
Connectors ATX 24 Pin x1
EPS 4+4 Pin x1
SATA x6
Peripheral 4 Pin x4
PCI-e 6+2 Pin x2
AC INPUT 100-240V~ 8-4A 50-60Hz
DC OUTPUT +3.3V +5V +12V -12V +5Vstb
20A 20A 45.8A 0.3A 3A
TOTAL POWER 120W 549.6W 3.6W 15W
550W
COOLER MASTER MWE 550W 80+ BORNZE FIXED CABLES
EGP1,200.00
80 PLUS BRONZE EFFICIENCY
The efficiency of your power supply unit is important because it directly affects you system’s performance and your power bill. The efficiency rating does not reflect the quality or reliability of a PSU. It only reflects the unit’s ability to move power from the wall to your components. The higher a PSU’s efficiency is, the lower the total amount of power it needs to power your system. The MWE Bronze series has an 80 PLUS Bronze efficiency rating, meaning it has a guaranteed typical efficiency of 85%.
| POWER CERTIFICATION |
80+ BRONZE |
|---|---|
| POWER MODULAR |
FIXED CABLES |
| POWER WATTAGE |
500W-550W |
Out of stock
