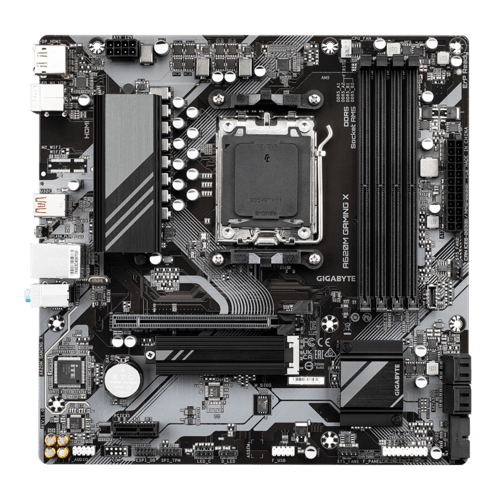

GIGABYTE A620M GAMING X AM5

1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

(Please refer “CPU Support List” for more information.)

1. AMD A620

1. Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)

1. 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
   * Support for DisplayPort 1.4 version.
2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

1. 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

Chipset:

1. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support
3. 1 x USB 3.2 Gen 1 port on the back panel

Chipset:

1. 1 x USB Type-C^® port with USB 3.2 Gen 1 support, available through the internal USB header
2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 1 x M.2 Socket 3 connector
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
12. 1 x USB 3.2 Gen 1 header
13. 1 x USB 2.0/1.1 header
14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
15. 1 x Clear CMOS jumper

1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
3. 1 x USB 3.2 Gen 2 Type-A port (red)
4. 2 x USB 3.2 Gen 1 ports
5. 2 x USB 2.0/1.1 ports
6. 1 x HDMI port
7. 1 x DisplayPort
8. 1 x Q-Flash Plus button
9. 1 x RJ-45 port
10. 3 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the fan you install.

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus

1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. Micro ATX Form Factor; 24.4cm x 24.4cm
