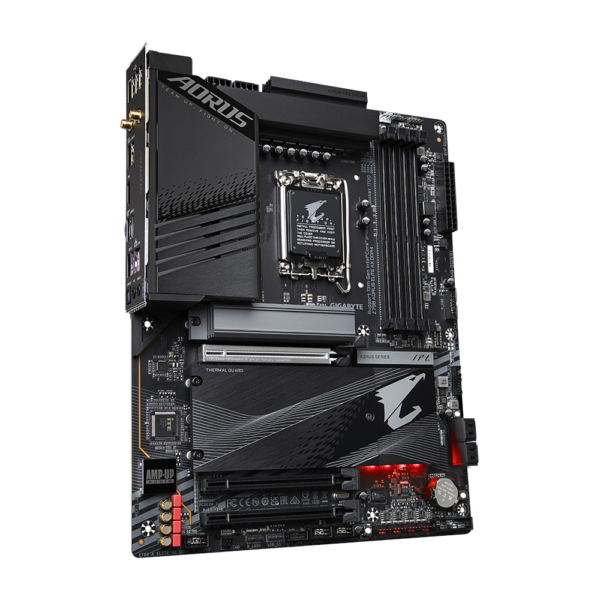

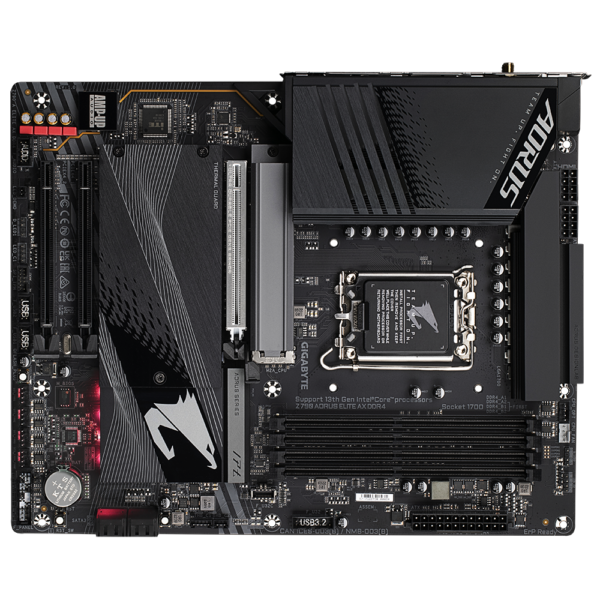

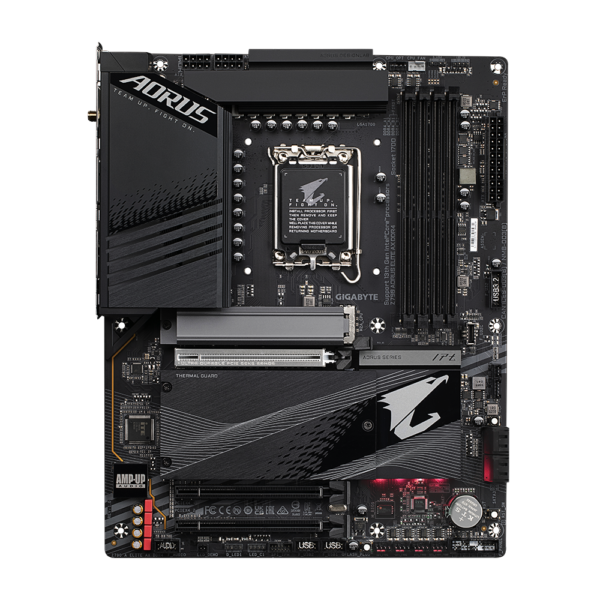

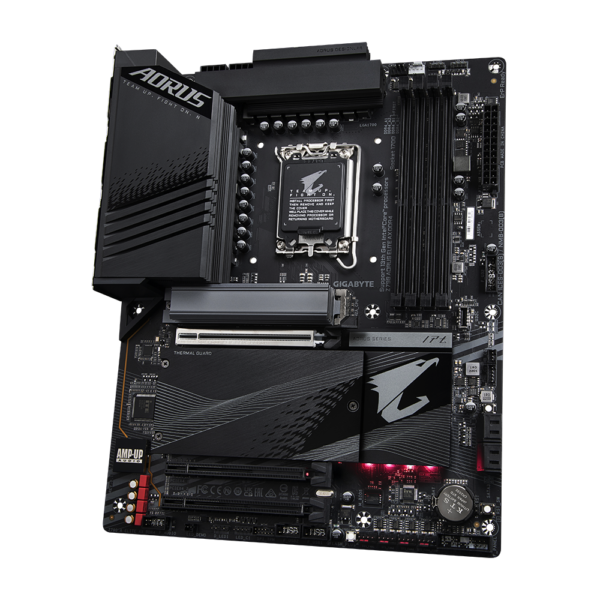

GIGABYTE Z790 AORUS ELITE AX DDR4 LGA 1700

Key Feature

Intel^® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Twin 16*+1+2 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs with XMP Memory Module Support
Next Generation Storage：4*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard III: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：HDMI, Front USB-C^® 10Gb/s, Rear USB-C^® 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

* 8+8 phases parallel power design

EGP 11,900.00

Category: MOTHERBOARD
Tags: #AORUS, #ARGB, #GAMING, #GEN 13, #GIGABYTE, #LGA 1700, #RGB, #Z790

Brands:: AORUS , GIGABYTE

Description

CPU
1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
2. L3 cache varies with CPU
(Please refer “CPU Support List” for more information.)
Chipset
1. Intel^® Z790 Express Chipset
Memory
1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
  * Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out
LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel^® Wi-Fi 6E AX211 (For PCB rev. 1.0)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek^® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
3. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
* Refer to “2-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
USB
Chipset:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2×2 support
2. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 4 x M.2 Socket 3 connectors
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 2 x Thunderbolt™ add-in card connectors
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x reset button
19. 1 x Q-Flash Plus button
20. 1 x Clear CMOS button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

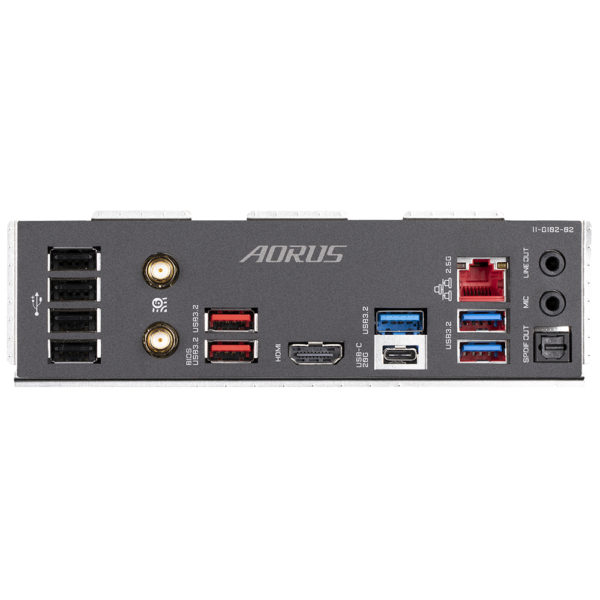

Back Panel Connectors
1. 1 x USB Type-C^® port, with USB 3.2 Gen 2×2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red)
3. 3 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI 2.0 port
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 2 x audio jacks
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
4. Support for Smart Backup
Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
Zhttps://www.gigabyte.com/Motherboard/Z790-AORUS-ELITE-AX-DDR4-rev-1x#kf

Additional information

MOTHERBOARD CHIPSET	Z790
MOTHERBOARD FORM FACTOR	ATX
MOTHERBOARD MANUFACTURERS	AORUS, GIGABYTE
MOTHERBOARD SERIES	INTEL Z790
MOTHERBOARD PLATFORM	INTEL
MOTHERBOARD SOCKET	LGA 1700
