Description
Model

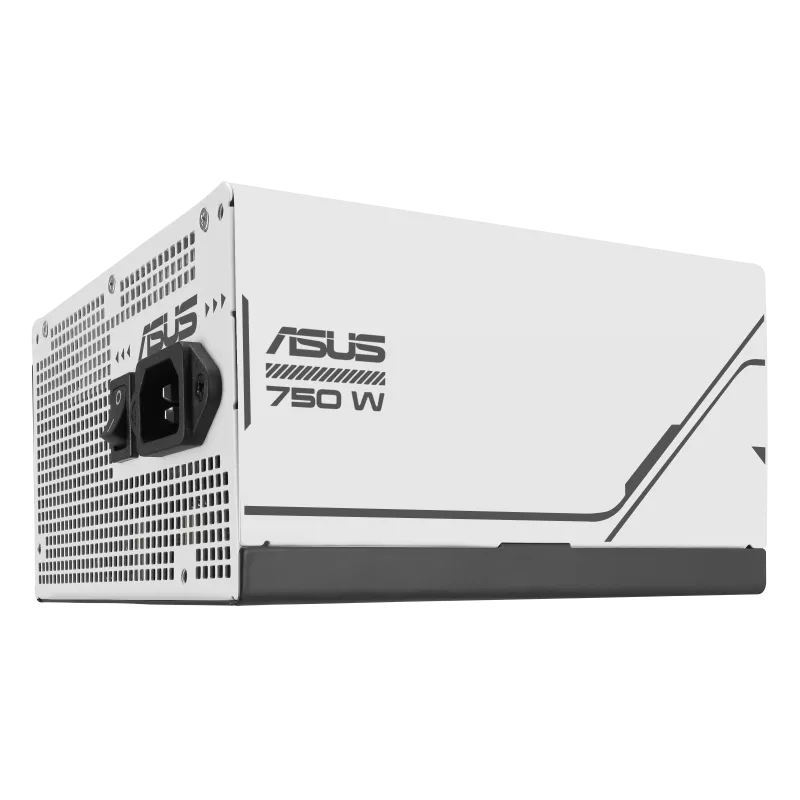

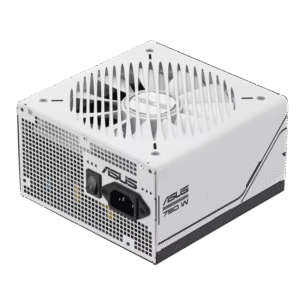

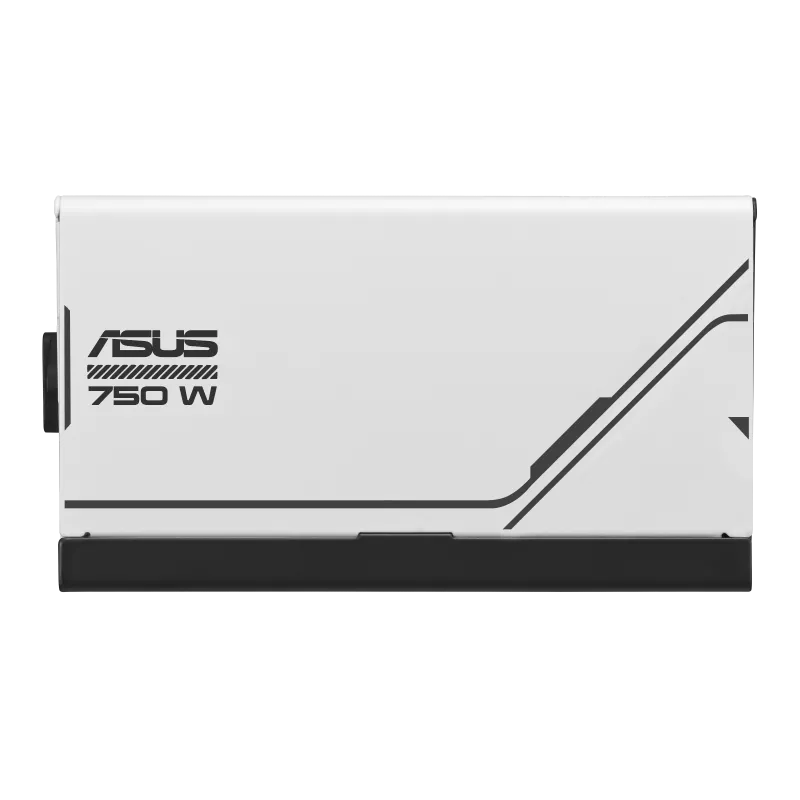

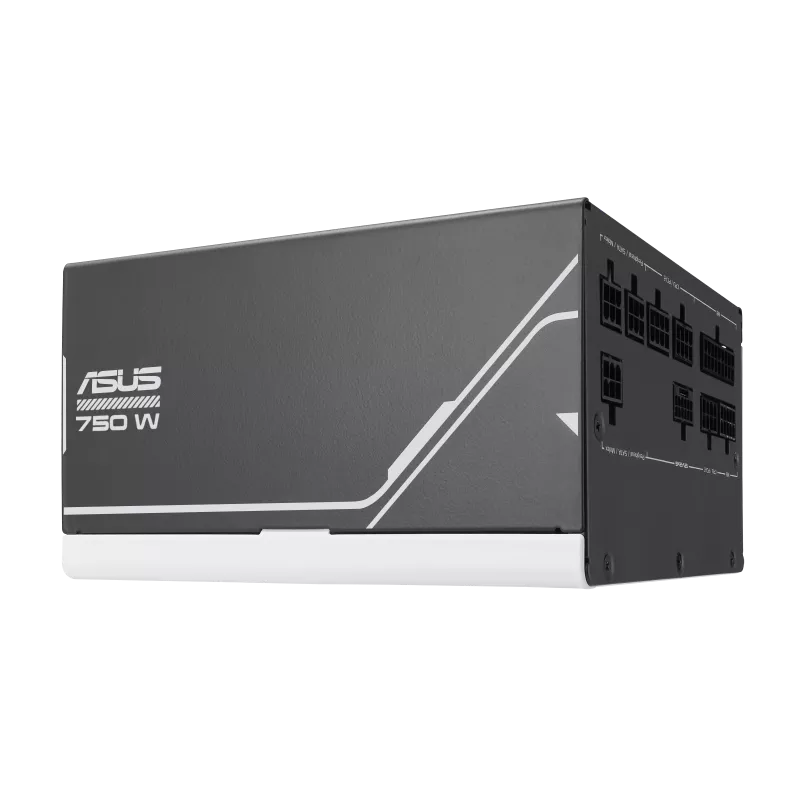

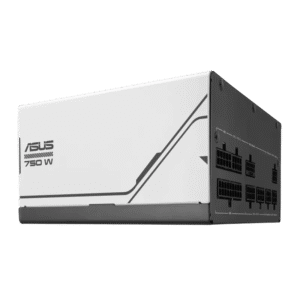

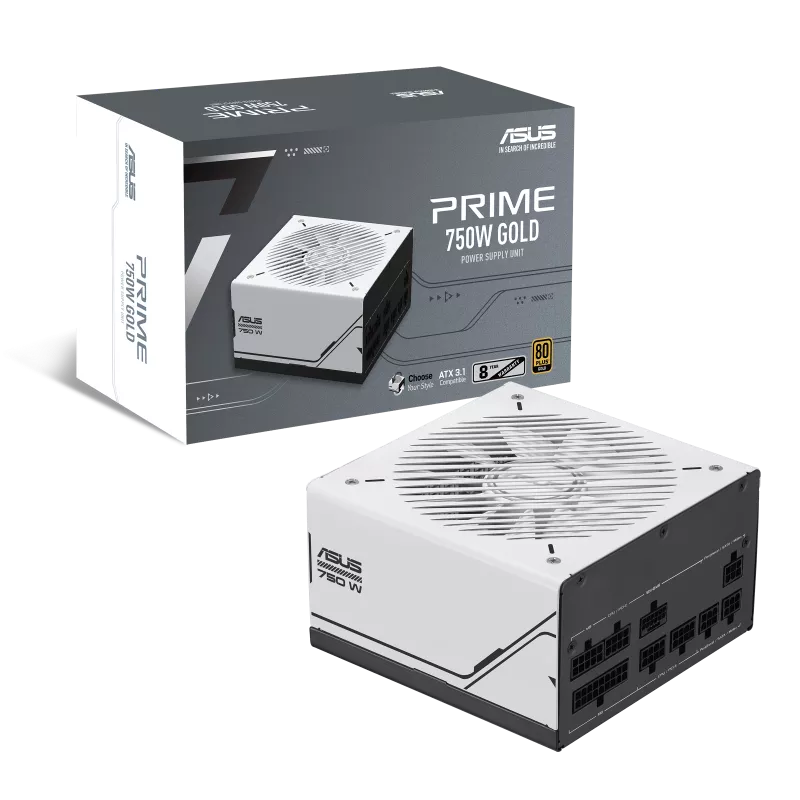

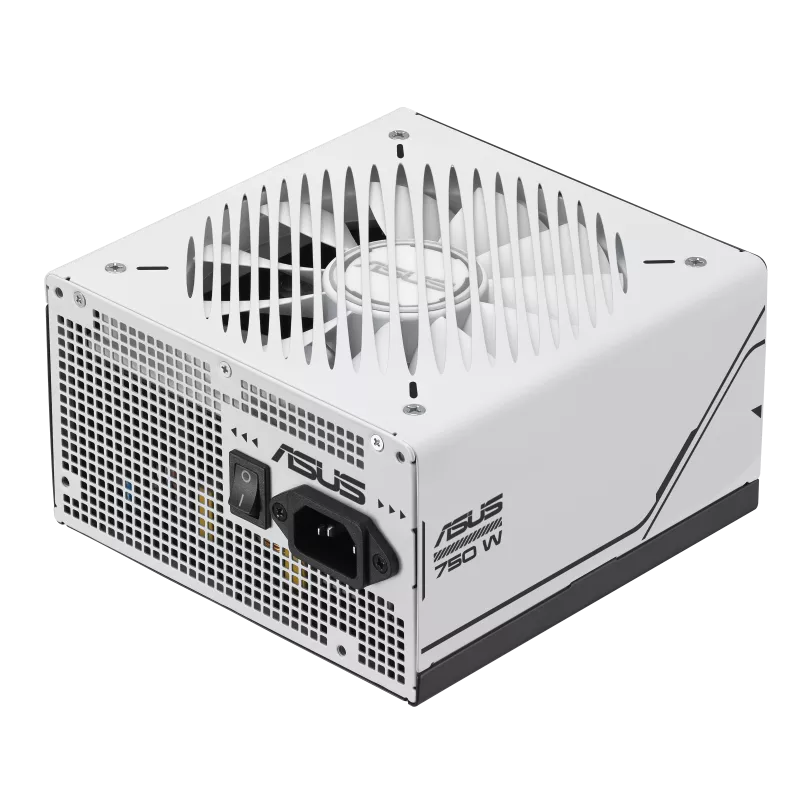

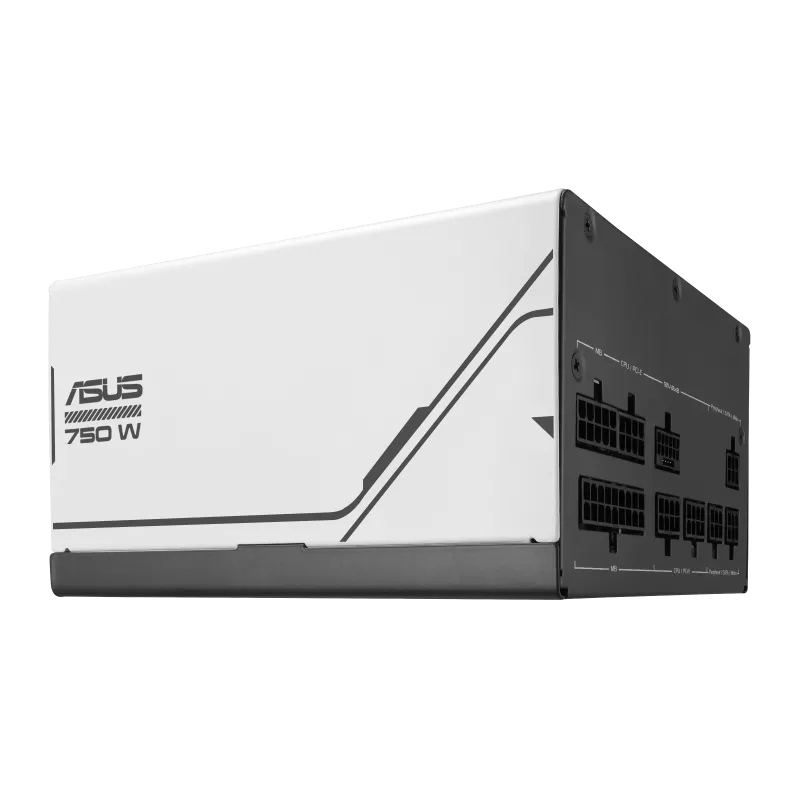

AP-750G
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A20A62A 0.3A 2.5A
Combined Load
110W 110W 744W 3.6W 12.5W
Total Output
750W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3

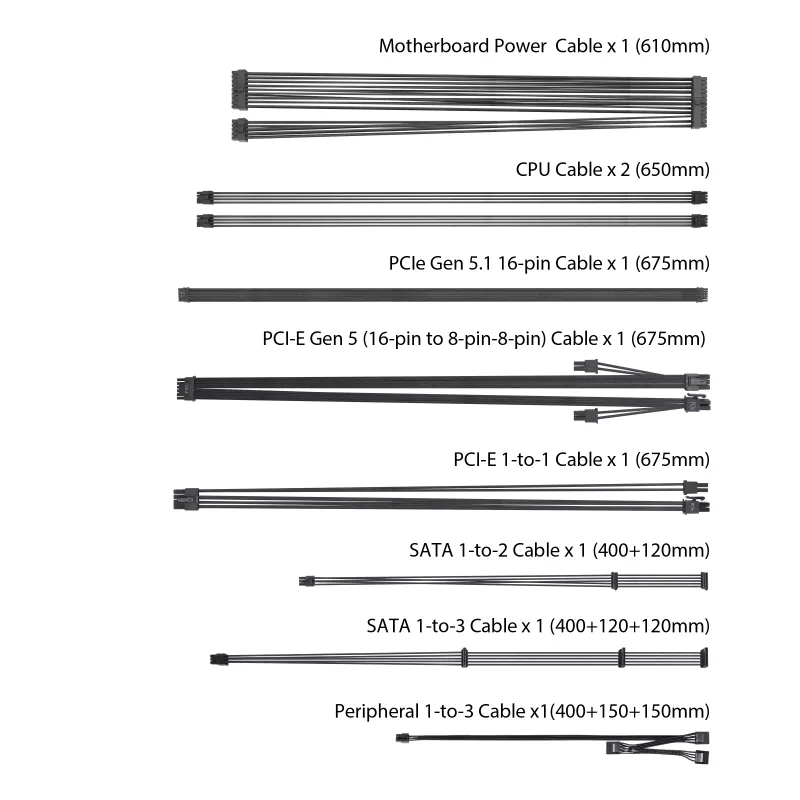

Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1
Weight
1.466 kg (single PSU)
0dB Technology
No
