Description
Model750: MPX-7503-AFAG-2***
ATX VersionATX 12V Ver. 3.1
PFCActive PFC
Input Voltage100-240V
Input Current10-5A
Input Frequency50-60Hz
Dimensions (L x W x H)160 x 150 x 86 mm
Fan Size120mm
Fan BearingHDB
Fan Speed2500 RPM
Efficiency≥90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ErP 2014 Lot 3Yes
Operating Temperature0-40°C
Power Good Signal100 – 150 ms
Hold Up Time≥16ms at 80% Load
MTBF>100,000 Hours
ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
RegulatorycTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region’s requests.)

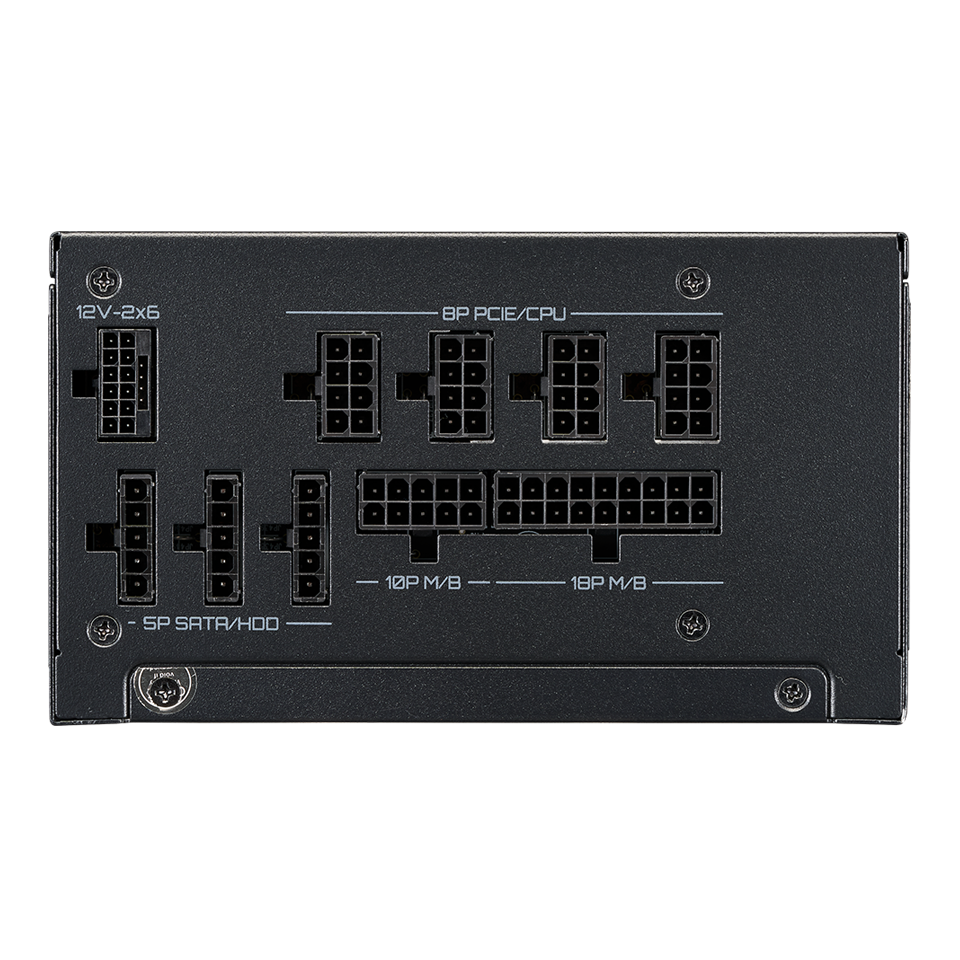

ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors6
Peripheral 4 Pin Connectors2
PCI-e 6+2 Pin Connectors4
12V-2×6 Connectors1
SeriesMWE Gold Series
CategoryAbove 750W
ModularFully Modular
80 Plus EfficiencyGold
Form FactorATX
Watts750W
