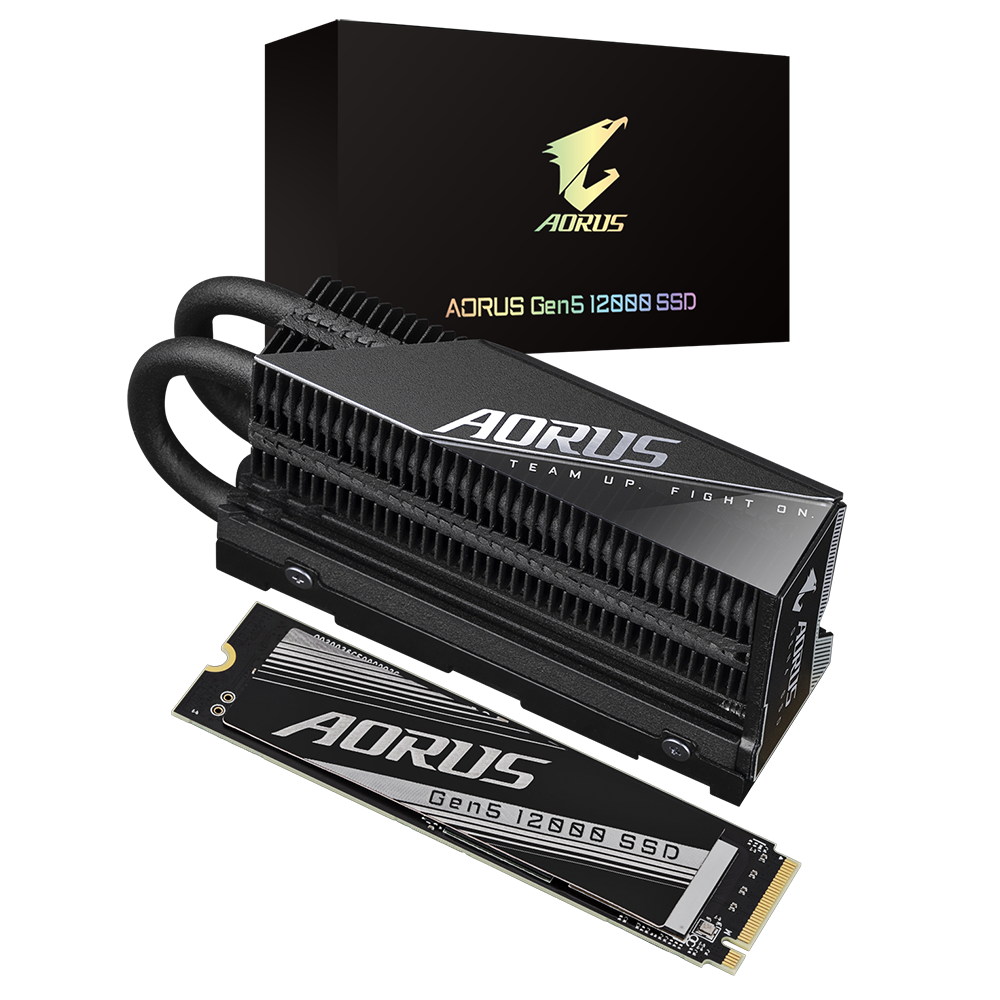

GIGABYTE AORUS Gen5 12000 SSD 1TB

Description

• • Interface
    PCI-Express 5.0×4, NVMe 2.0
  • Form Factor
    M.2 2280
  • Total Capacity
    1000GB
  • NAND
    3D TLC NAND Flash
  • External DDR Cache
    LPDDR4 2GB
  • Sequential Read speed
    Up to 11,700 MB/s
  • Sequential Write speed
    Up to 9,500MB/s
  • Dimension
    SSD without Heatsink: 80 x 22 x 3.5mm
    SSD with Heatsink: 92 x 23.5 x 44.7 mm
    Please refer to the file to check the M.2 Thermal Guard XTREME Incompatible List
  • Mean time between failure (MTBF)
    1.6 million hours
  • Max. Operating Power
    11W
  • Power Consumption (Idle, PS3)
    <144mW
  • Power Consumption(PS4, L1.2)
    <85mW
  • Temperature (Operating)
    0°C to 70°C
  • Temperature (Storage)
    -40°C to 85°C
  • Warranty
    1. Limited 5-years or 700TBW.
    2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
    *TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

    3. When the usage of an NVME SSD as indicated by the “Percentage Used” (SMART ID: 05) in SMART page of “GIGABYTE SSD toolbox” reaches 100 means out of warranty. (A new unused product will show the number of 0)

  • Note
    • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
    • Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
    • Speeds based on internal testing. Actual performance may vary.
    • 1GB = 1 billion bytes. Actual useable capacity may vary.
    * To keep AORUS Gen5 12000 SSD from overheating, please adopt the motherboard build-in heatsink or Thermal Guard Xtreme heatsink to prevent throttling.
