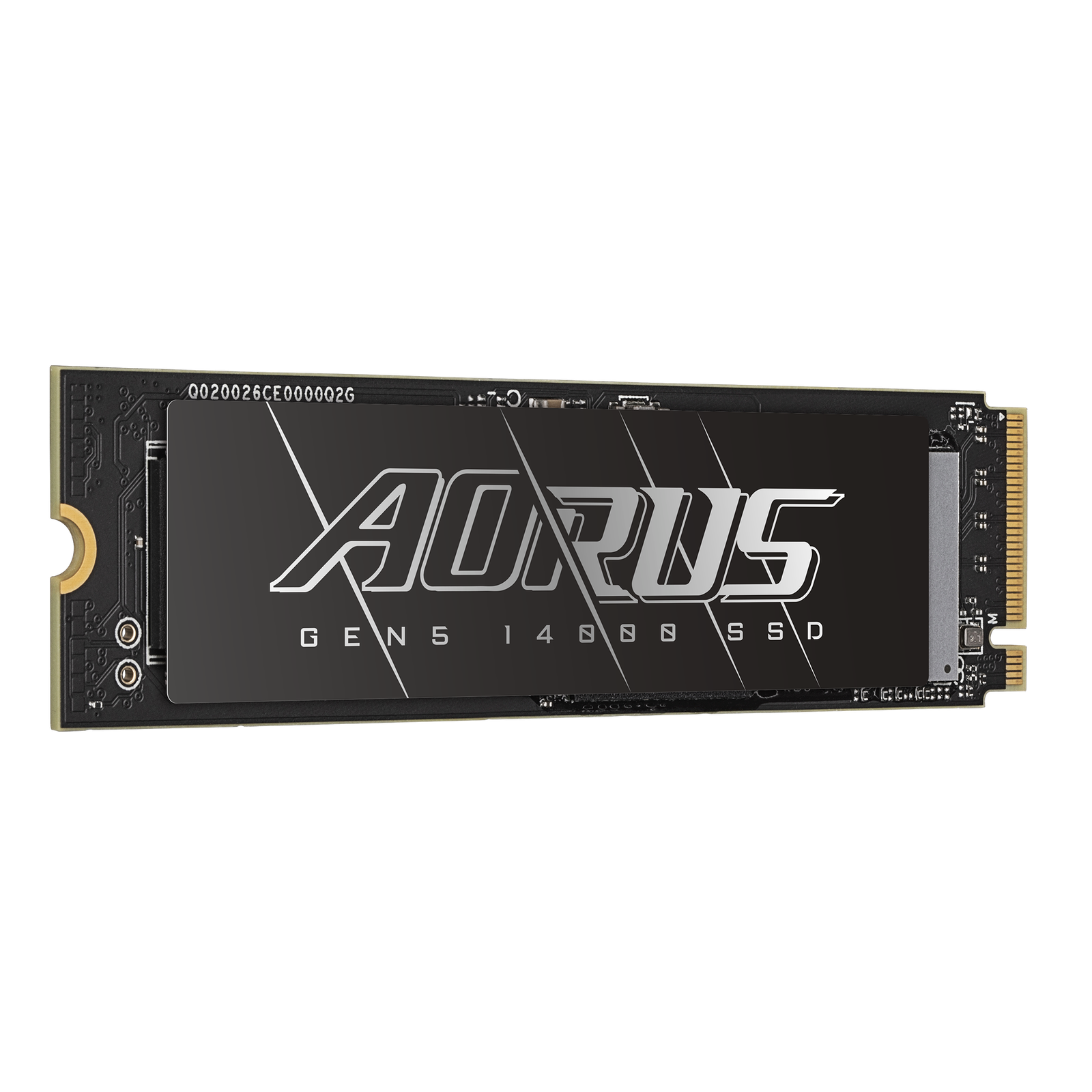

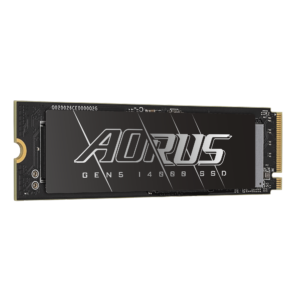

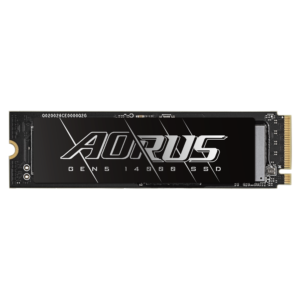

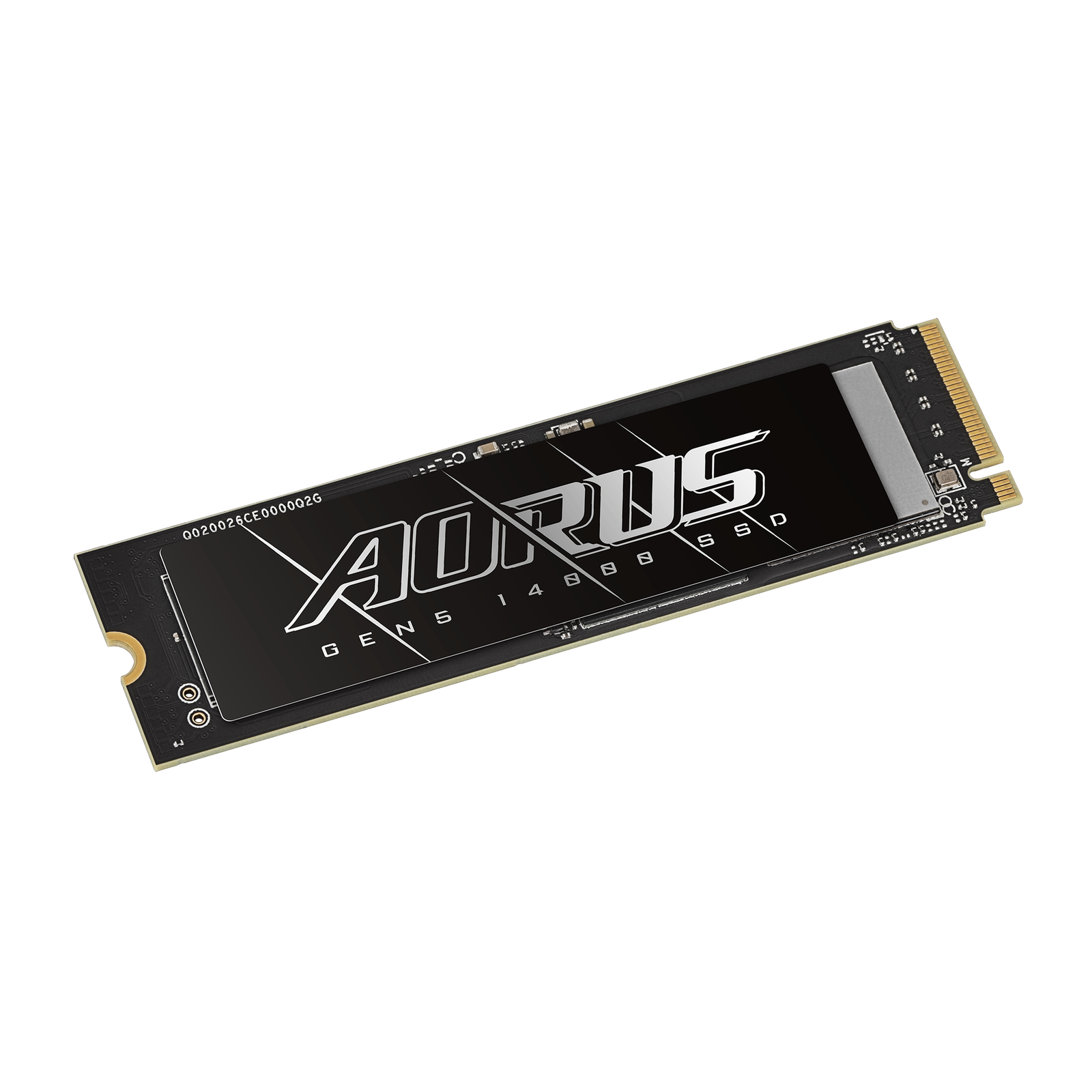

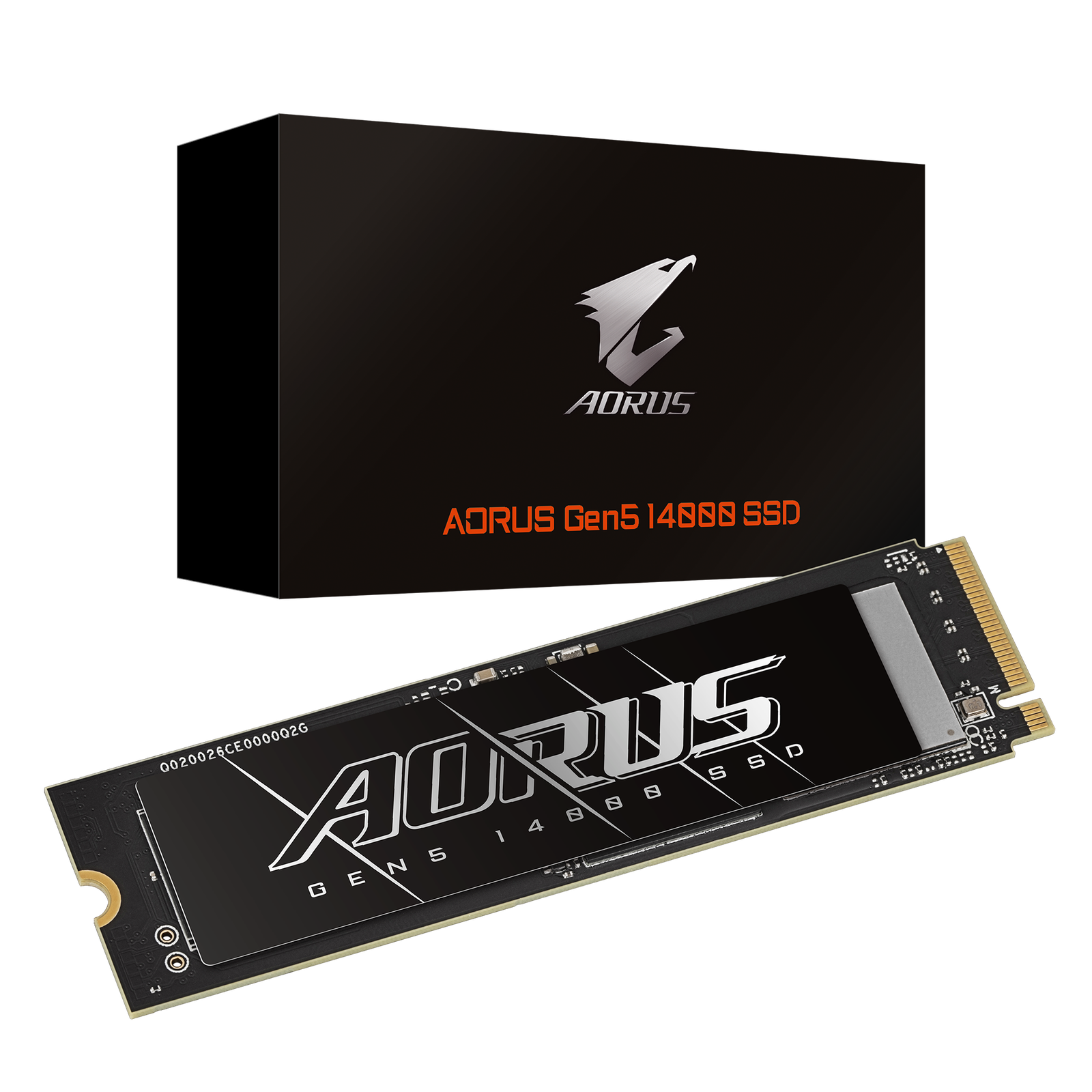

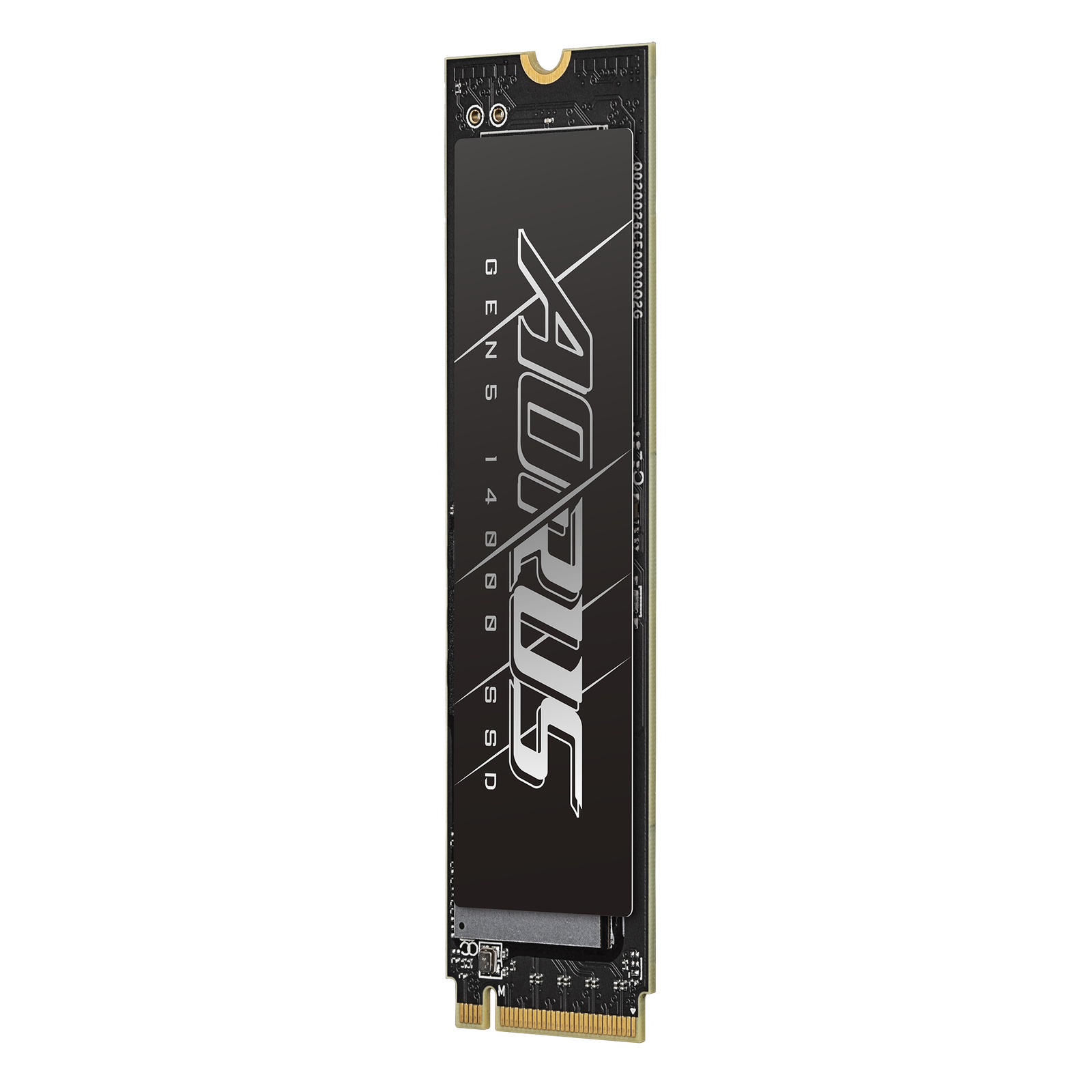

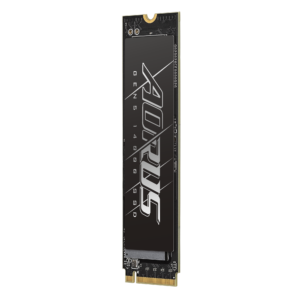

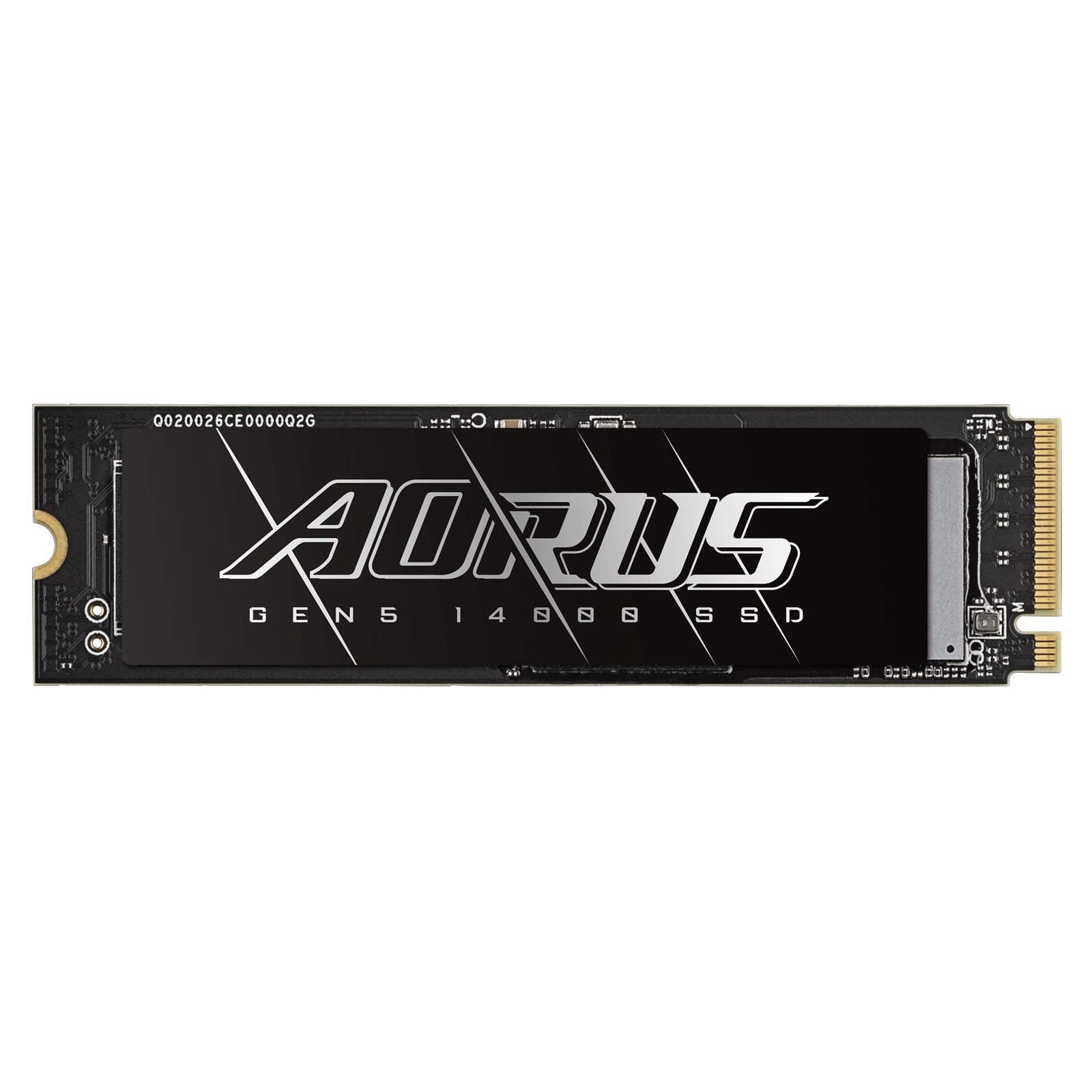

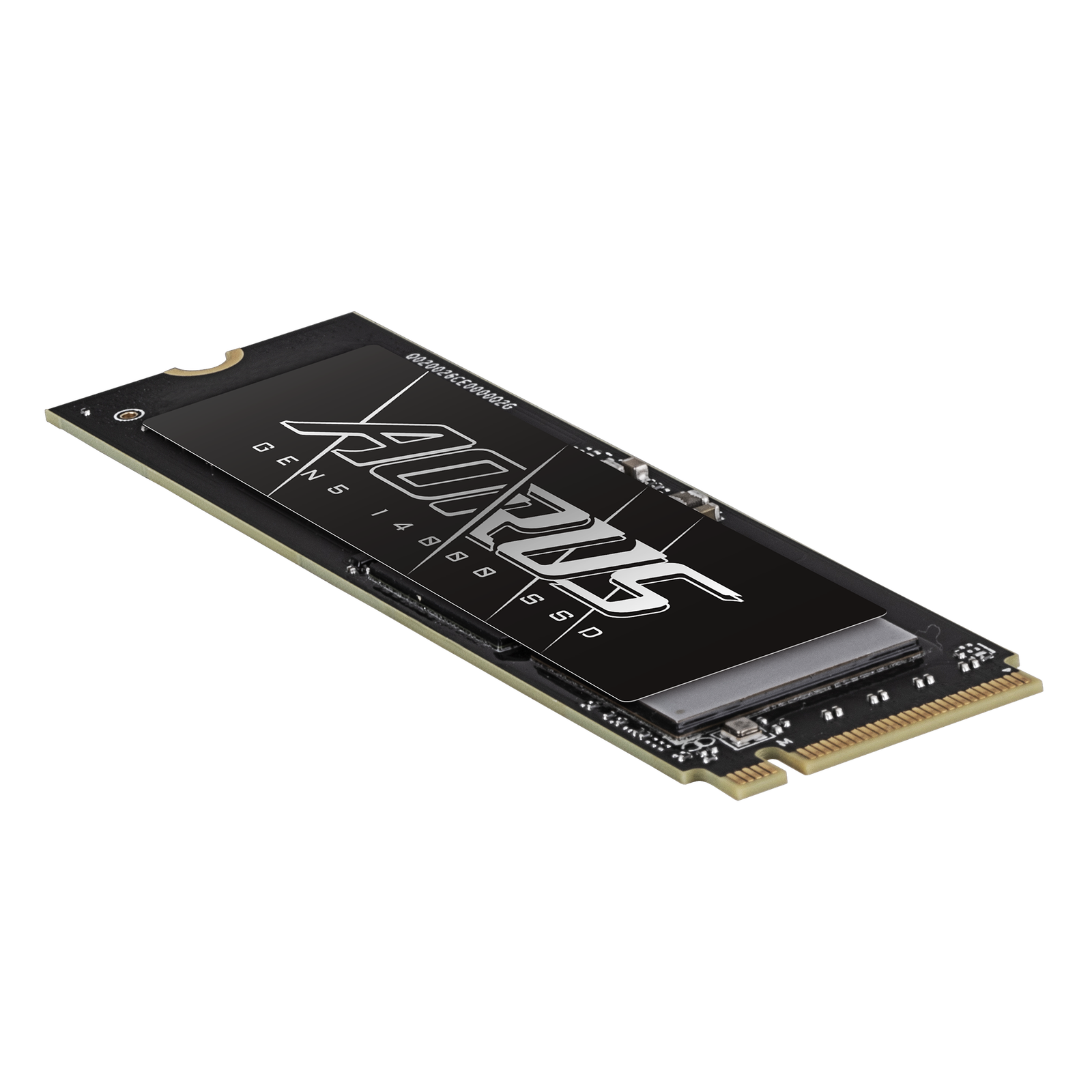

GIGABYTE AORUS Gen5 14000 SSD 1TB

Description

• • Interface
  • PCI-Express 5.0×4, NVMe 2.0
  • Form Factor
  • M.2 2280
  • Total Capacity
  • 1000GB
  • NAND
  • 3D TLC NAND Flash
  • External DDR Cache
  • LPDDR4 2GB
  • Sequential Read speed
  • Up to 13,600 MB/s
  • Sequential Write speed
  • Up to 10,200MB/s
  • Dimension
  • 80 x 22 x 3.5 mm
  • Mean time between failure (MTBF)
  • 1.6 million hours
  • Max. Operating Power
  • Read : 11.5W; Write : 11.5W
  • Power Consumption (Idle, PS3)
  • < 144mW
  • Power Consumption(PS4, L1.2)
  • < 85mW
  • Temperature (Operating)
  • 0°C to 70°C
  • Temperature (Storage)
  • -40°C to 85°C
  • Note
  • • Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
    • Performance may vary based on SSD’s firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
    • Speeds based on internal testing. Actual performance may vary.
    • 1GB = 1 billion bytes. Actual useable capacity may vary.
