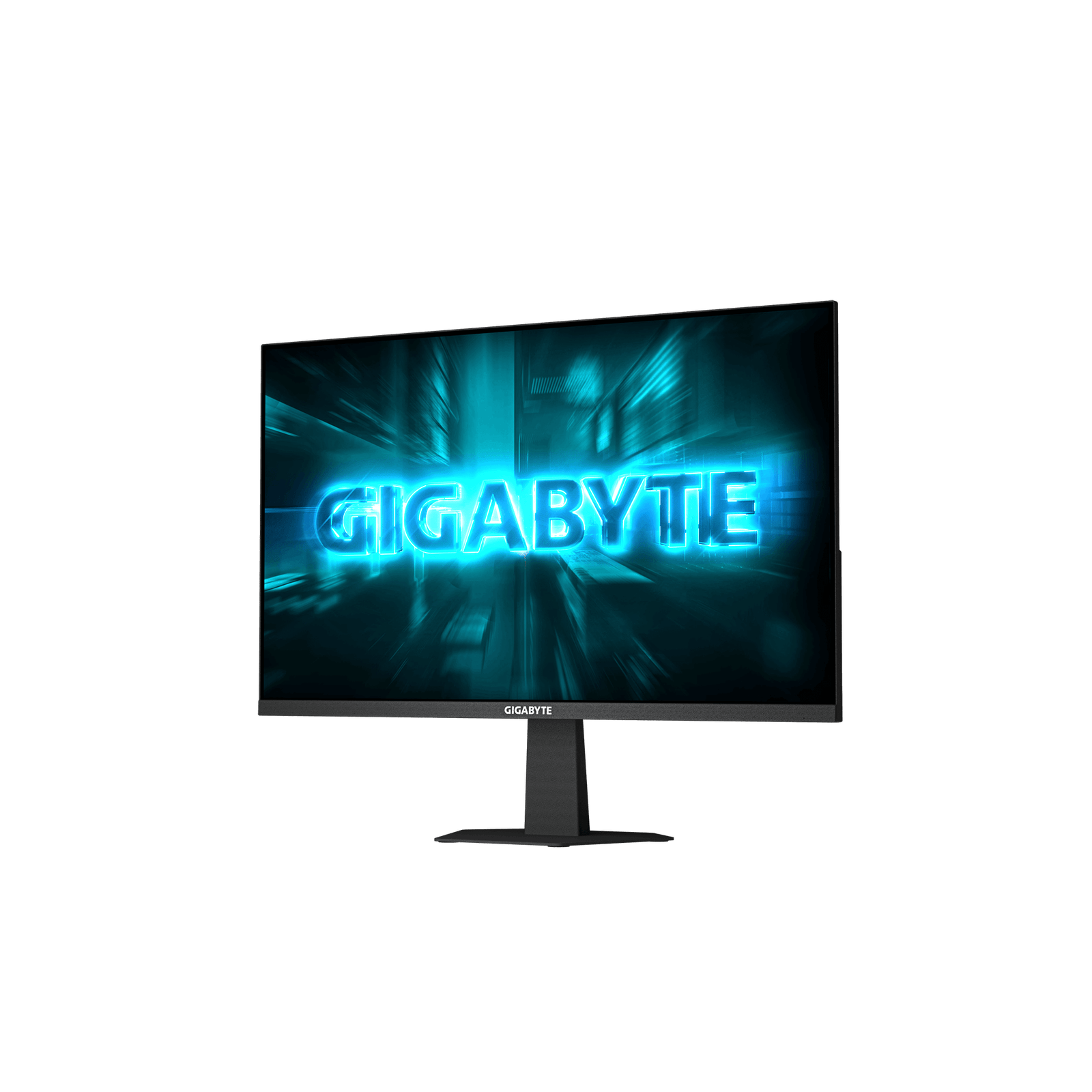

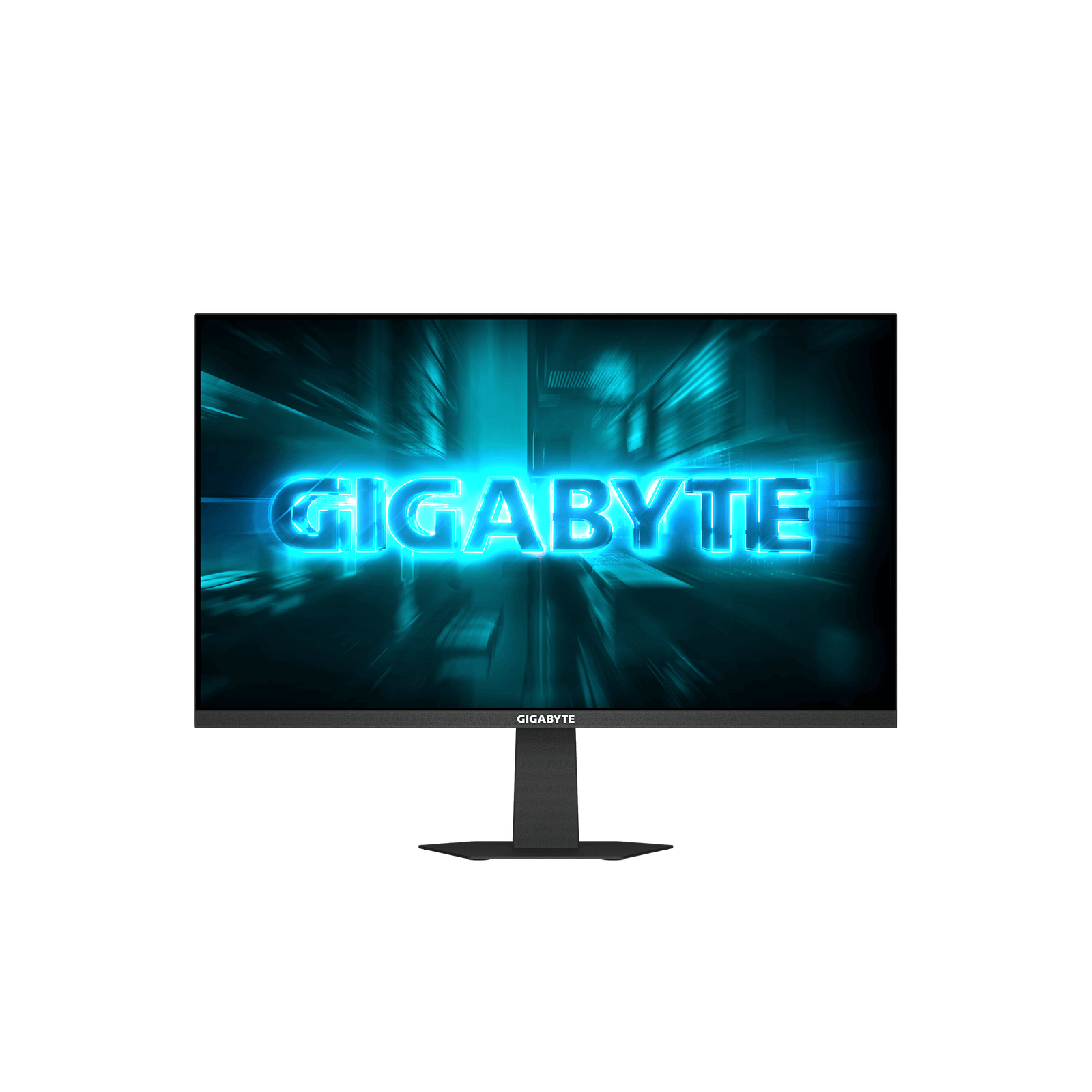

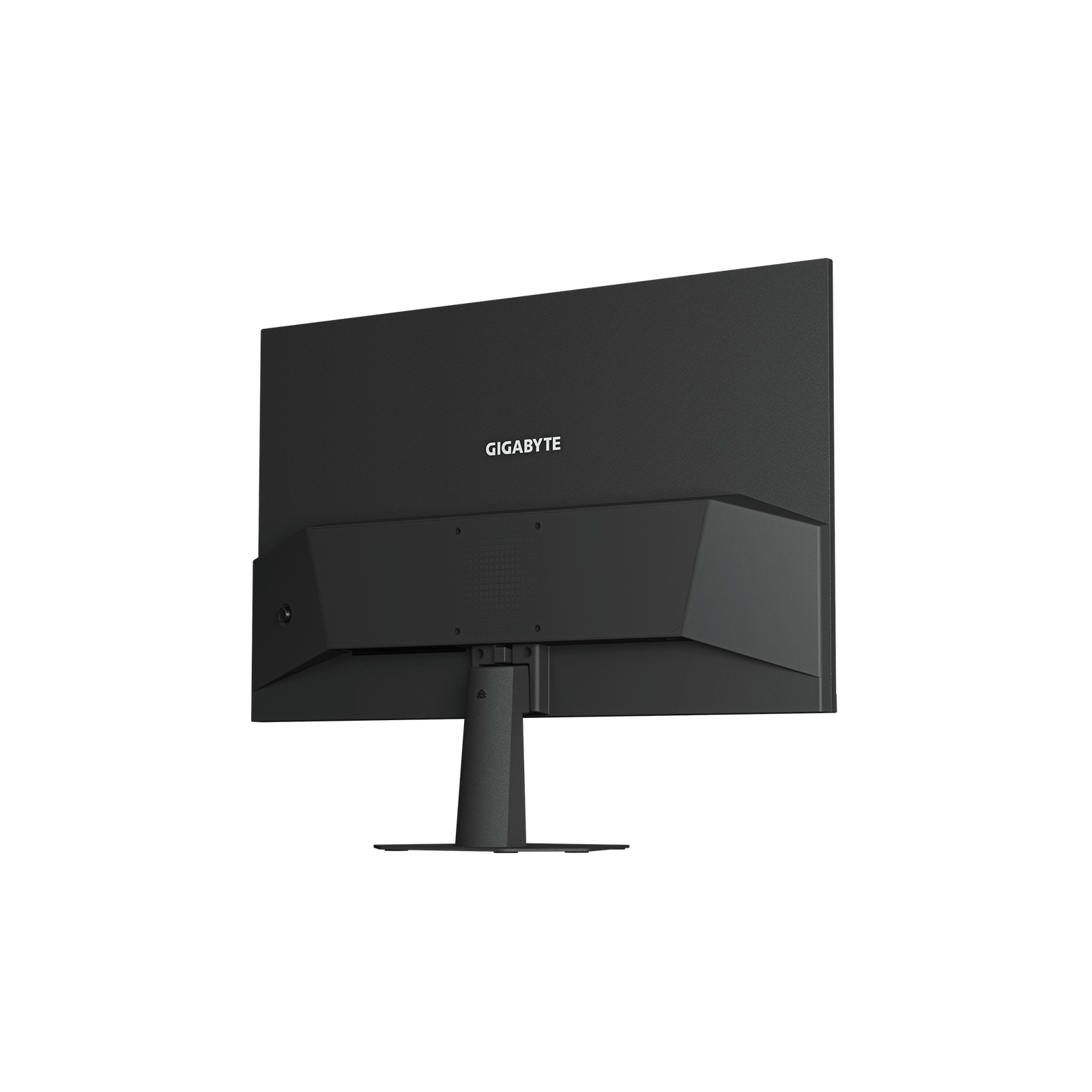

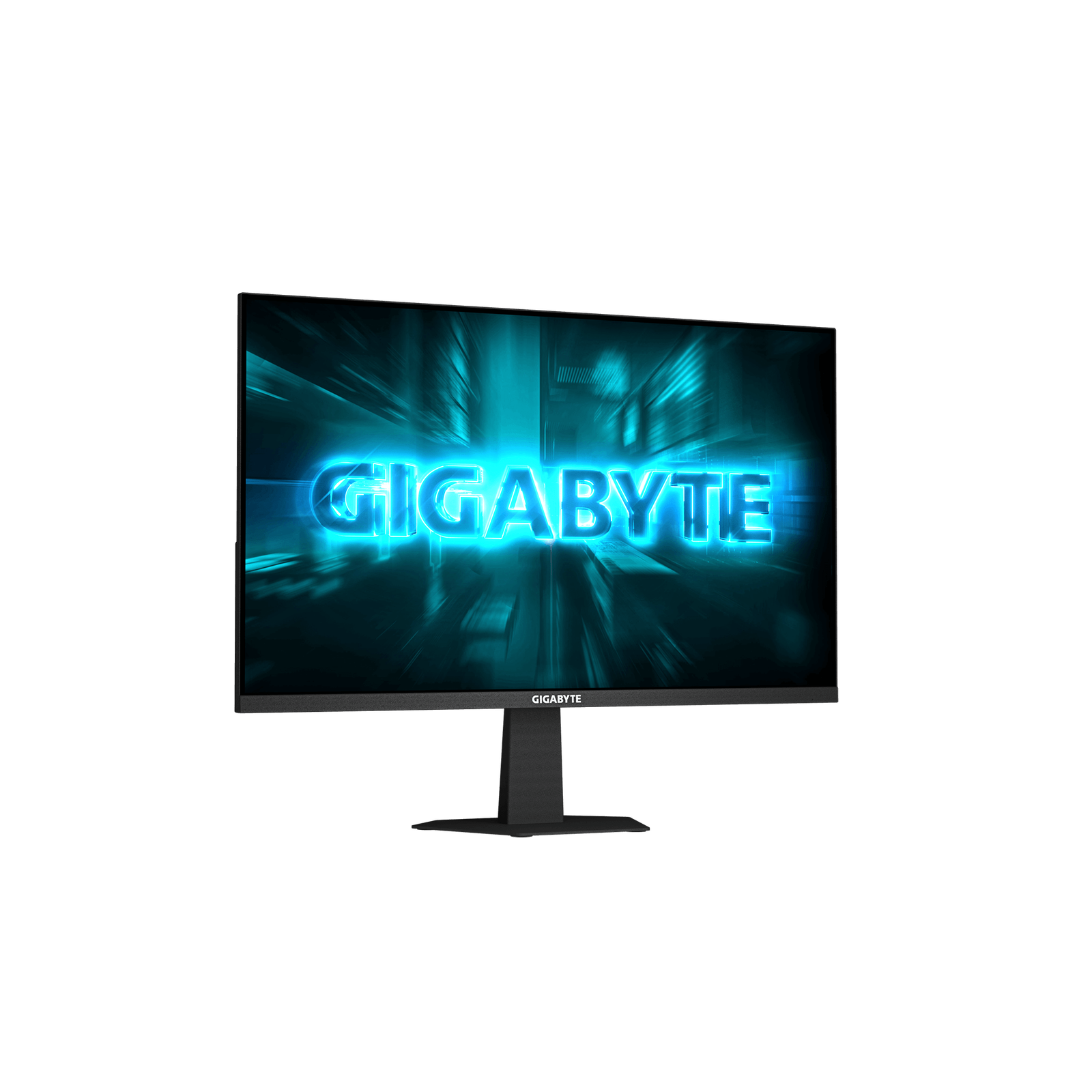

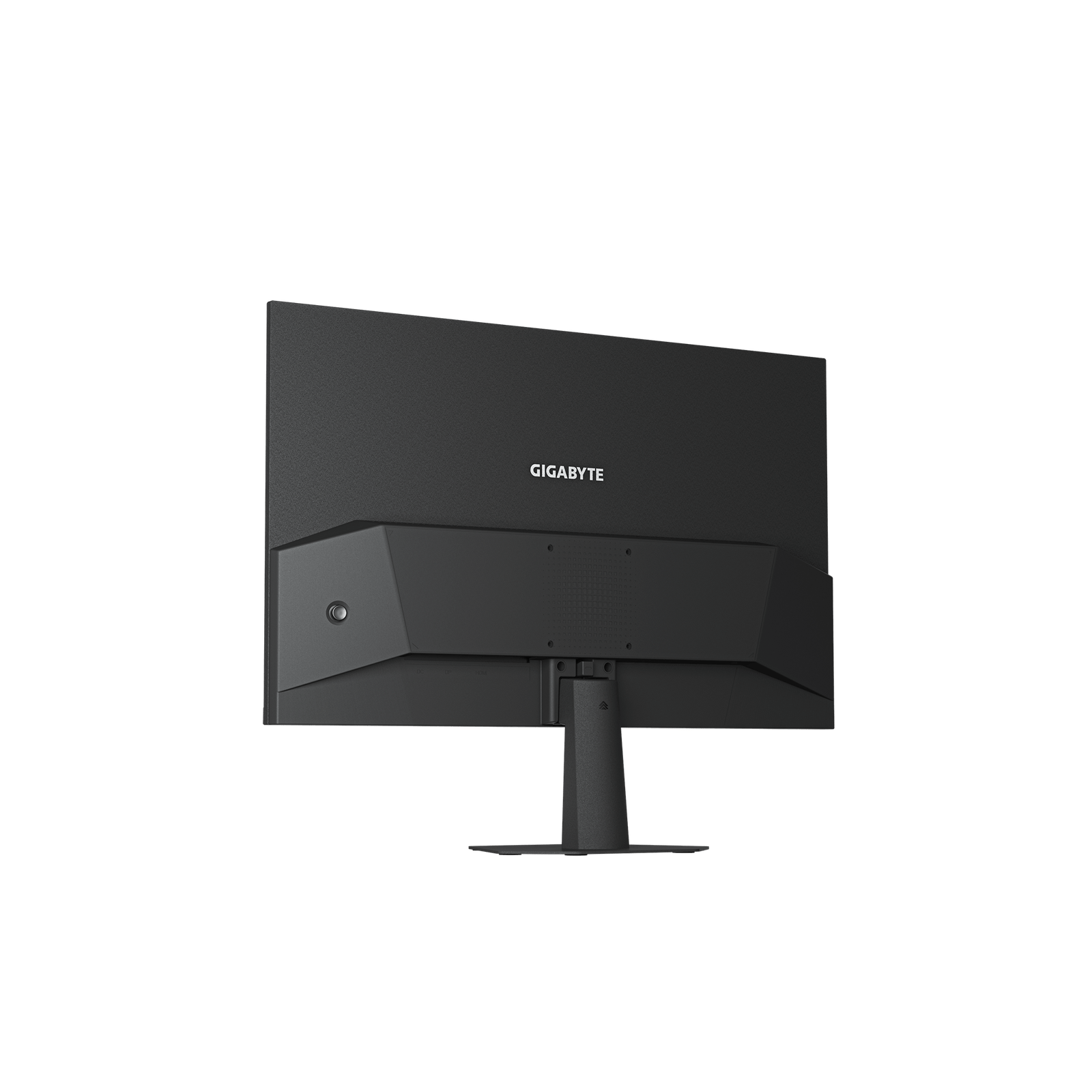

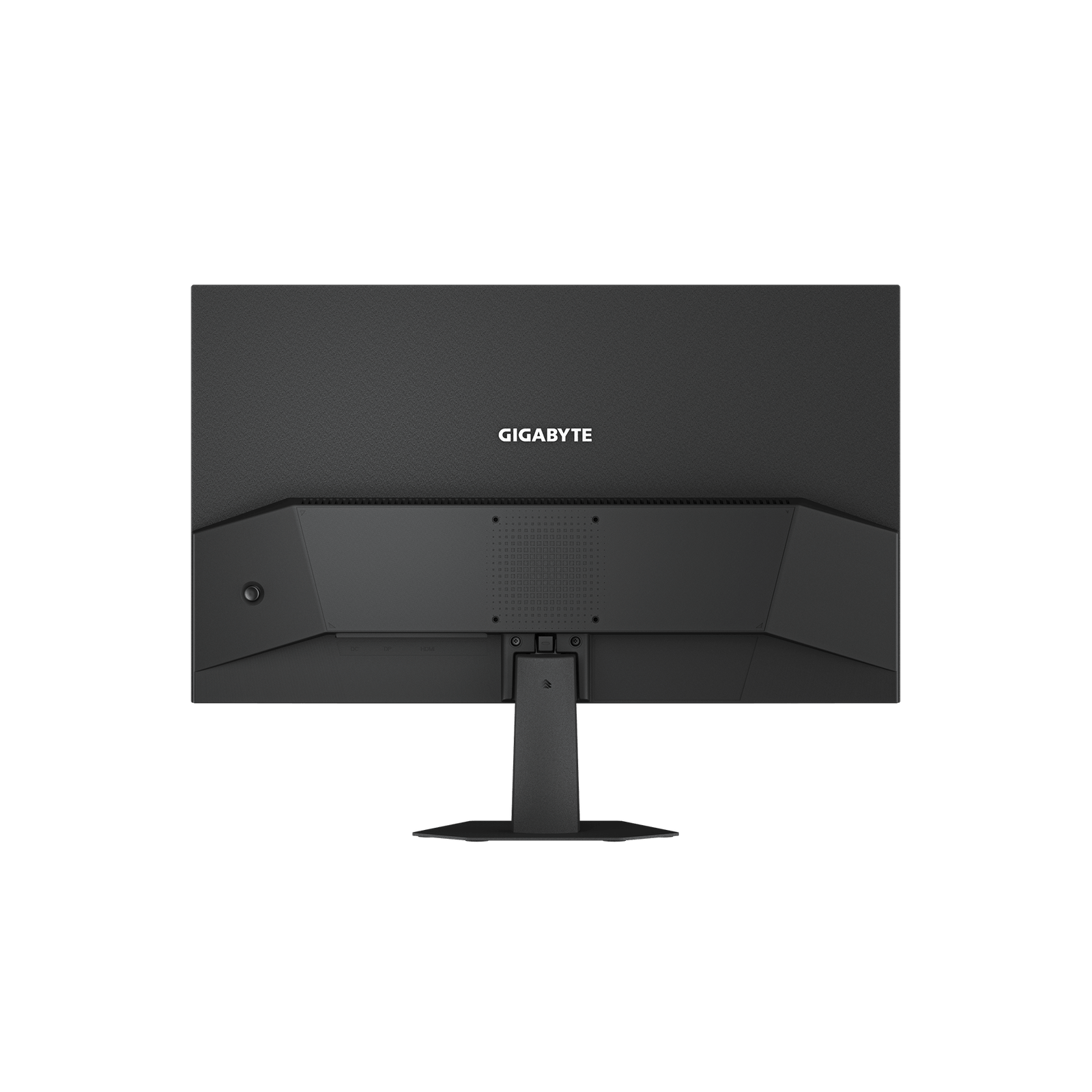

GIGABYTE GS24F14A Gaming Monitor FHD OC 175Hz

Description

• Panel Size (inch)
• 23.8″ IPS

• Panel Type
• Edge

• Display Viewing Area (HxV)
• 527.04 x 296.46 (mm)

• Color Saturation
• 90% DCI-P3

• Resolution
• 1920 x 1080(FHD)

• Display Surface
• Non-glare

• Pixel Pitch
• 0.0915 x 0.2745

• Brightness
• 400 cd/m2 (TYP)

• Contrast Ratio (Typ.)
• 1500:1

• Viewing Angle
• 178°(H)/178°(V)

• Display Colors
• 8bit（6bit + FRC）

• Refresh Rate (Max)
• 144Hz (OC 175Hz)

• Response Time
• 1ms MPRT

• HDR Support
• HDR10

• Flicker-free
• Yes

• Connectivity
• 2 x HDMI 2.0
  1 x Displayport 1.4
  1 x Earphone Jack

• Earphone Jack
• Yes

• Power Type
• Adaptor

• Power Consumption
• 11W

• Power Saving Mode
• <0.5W

• Power Off Mode
• <0.3W

• Voltage
• AC 100-240V ~ 50/60Hz

• Tilt(angle)
• -5°~+20°

• Swivel(angle)
• N/A

• Pivot(angle/direction)
• N/A

• Height Adjustment (mm)
• N/A

• VESA Wall Mounting(mm)
• 75 x 75 mm

• Kensington lock
• Yes

• Phys. Dimension with Stand(WxHxD)
• 537.7 x 414.5 x 152 mm

• Phys. Dimension w/o stand  (WxHxD)
• 537.7 x 317 x 37.5 mm

• Box Dimension (WxHxD)
• 653 x 436 x 133 mm

• Net Weight with stand (Esti.)
• 3.16 kg

• Net Weight without stand (Esti.)
• 2.65 kg

• Gross Weight (Esti.)
• 4.1 kg

• Accessories
• Power cable/HDMI cable/QSG/Warranty card

• Note

• *To enable OSD Sidekick (integrated in GCC), it requires connection between PC and monitor with HDMI/DP cable.
  **The test condition follows CEC standards.
