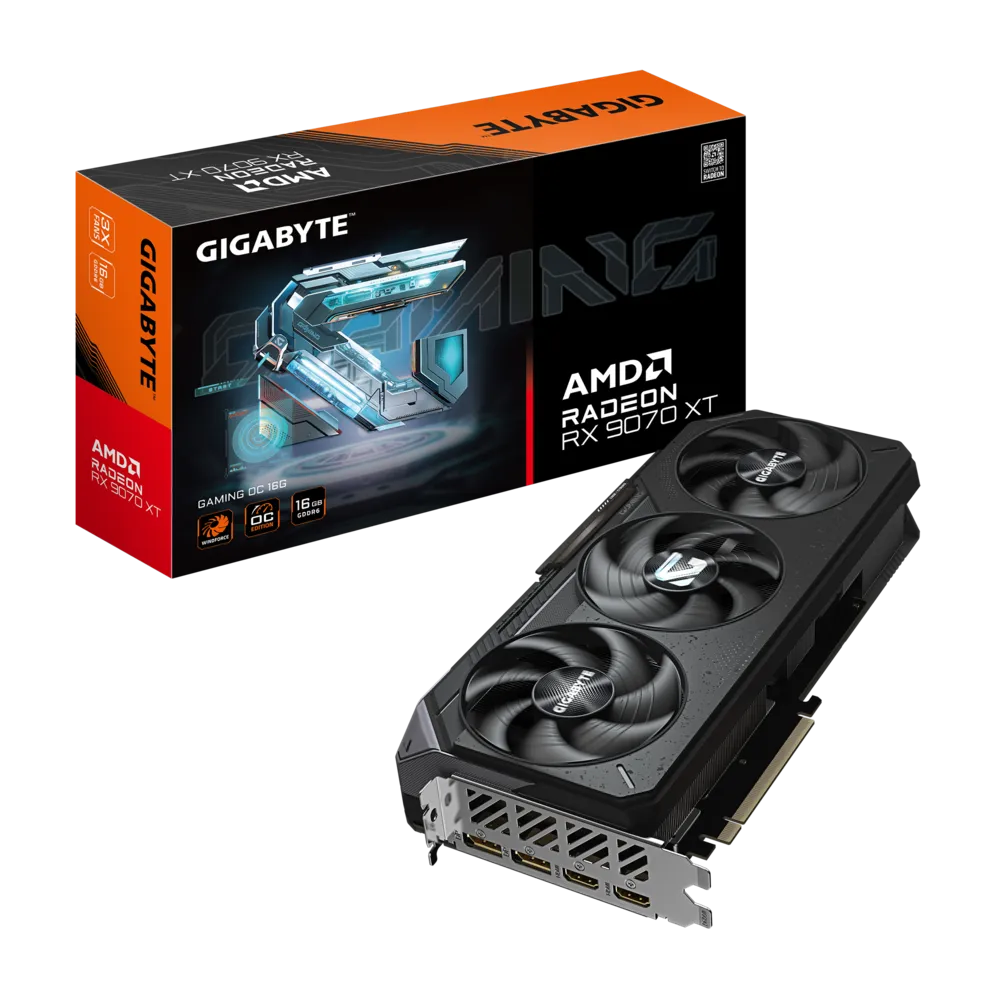

GIGABYTE Radeon™ RX 9070 XT GAMING OC 16G

Description

• Graphics Processing
  Radeon™ RX 9070 XT
• Core Clock
  Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
  Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)
• Stream Processors
  4096
• Memory Clock
  20 Gbps
• Memory Size
  16GB
• Memory Type
  GDDR6
• Memory Bus
  256 bit
• Card Bus
  PCI-E 5.0
• Digital max resolution
  7680×4320
• Multi-view
  4
• Card size
  L=288 W=132 H=56 mm
• PCB Form
  ATX
• DirectX
  DirectX 12 API
• OpenGL
  4.6
• Recommended PSU
  850W
• Power Connectors
  8 pin*3
• Output
  DisplayPort 2.1a *2
  HDMI 2.1b *2
• Accessories
  Quick guide
• Note
  * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
  * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
