Description
Compatibility | Intel LGA1851/1700/1200/115X |
AMD AM5/AM4 | |
TDP | 350W |
Radiator Dimension | 396×120×27mm |
Radiator Material | Aluminum |
Tube Material | Premium Sleeved Tubing |
Tube Length | 465mm |

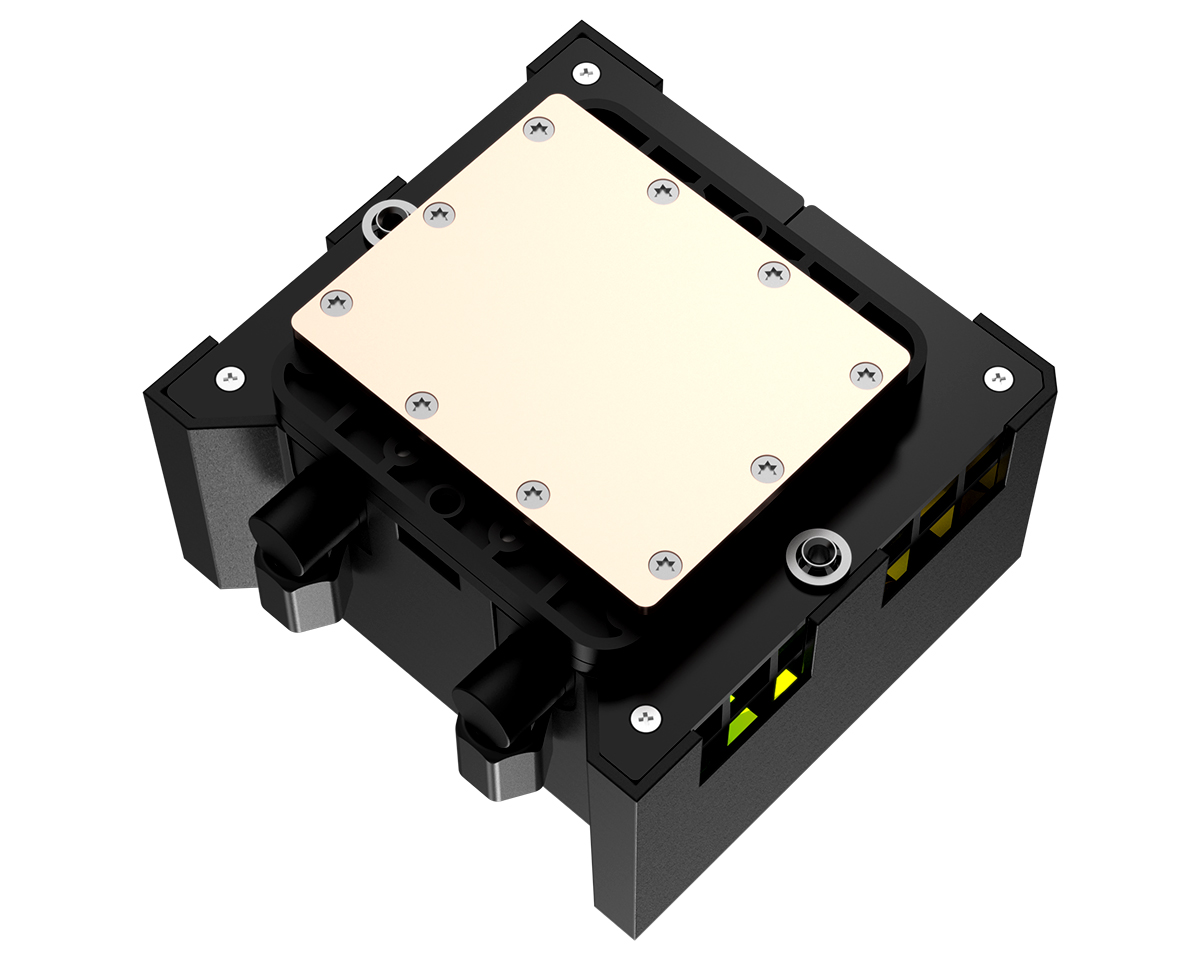

Waterblock Dimension | 94x90x62mm |
Cold Plate Material | Copper |
Pump Current | 0.45A MAX. |
Pump Speed | 2900RPM |
Pump Bearing | Ceramic Bearing |
Pump Life Expectancy | 50,000 Hrs |
Pump Noise Level | ≤25dB(A) |
Rated Voltage | 12VDC |
Operating Voltage | 10.8～13.2VDC |
Started Voltage | 7VDC |
Power Input | 3W |
Connector | 4Pin PWM |
| Fan on Radiator | Fan on Pump | |
| Fan Model | DF-125-ARGB-K | |
| Fan Dimension | 120×120×25mm | 70×70×15mm |
| Fan Speed | 0～2150±10%RPM | 800～2800±10%RPM |
| Max. Static Pressure | 2.83mmH2O | 1.92mmH2O |
| Max. Air Flow | 85CFM | 23CFM |
| Noise Level | 32.5dB(A) Max. | 28dB(A) Max. |
| Current Input | 0.18A | 0.08A |
| LED Lighting | 5V ARGB | 5V ARGB |
| Bearing | Hydraulic Bearing | Ball Bearing |
