KINGSTON 32GB DDR5 5600

Description

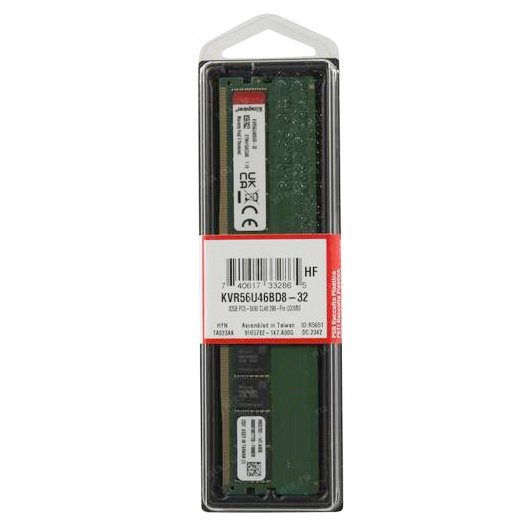

KVR56U46BD8-32

KVR56U46BD8-32
32GB 2Rx8 4G x 64-Bit
PC5-5600 CL46 288-Pin DIMM
Continued >>
FEATURES

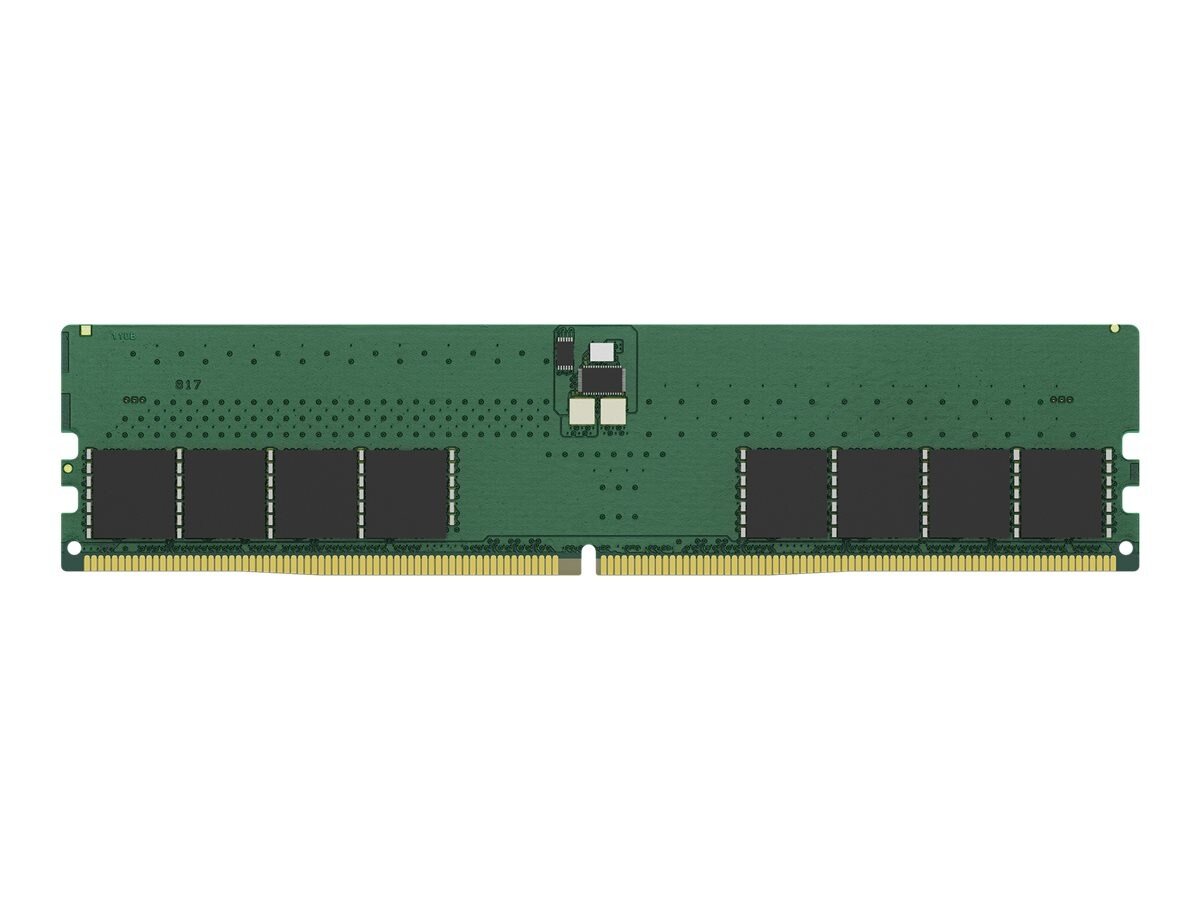

This document describes ValueRAM’s KVR56U46BD8-32 is a 4G x
64-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8,
memory module, based on sixteen 2G x 8-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR5-5600 timing of
46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The
electrical and mechanical specifications are as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
46 cycles
48ns(min.)
295ns(min.)
32ns(min.)
94 V – 0
0o
C to +85o
C
-55o
C to +100o
C
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
