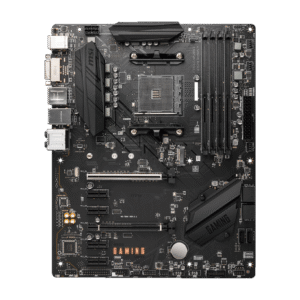

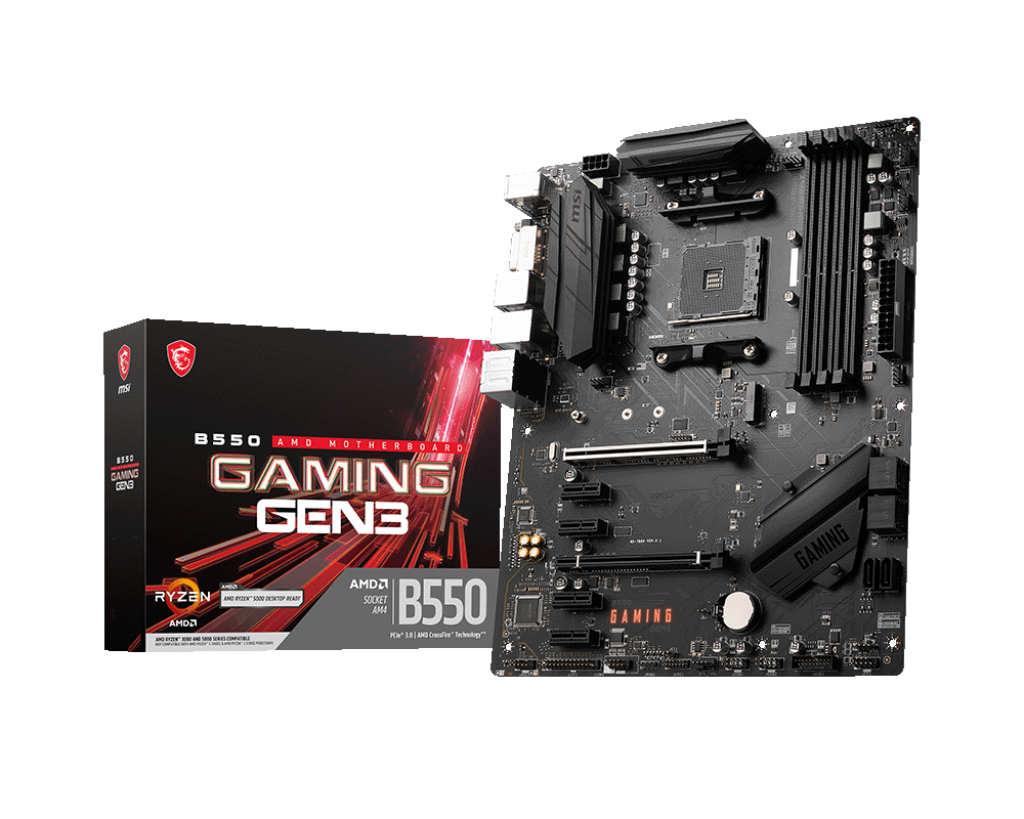

MSI B550 GAMING GEN3

Description

• CPU

  Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Processor socket AM4

  See supported processors

  CHIPSET

  AMD^® B550 Chipset

  MEMORY

  • 4x DDR4 memory slots, supporting up to 128GB ¹
    • Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 4400 MHz
      • 1DPC 2R max speed 3733 MHz
      • 2DPC 1R max speed 3866 MHz
      • 2DPC 2R max speed 3466 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory

  1. Please refer www.msi.com for more information on compatible memory.

  See supported memory

  EXPANSION SLOTS

  • 2x PCIe x16 slots
    • PCI_E1 slot (From CPU)
      • Supports PCIE 3.0 x16
    • PCI_E4 ¹(From B550 chipset)
      • Supports PCIe 3.0 x4
  • 4x PCIe x1 slots
    • PCI_E2, E3, E5 and E6 slots (From B550 chipset)
    • Supports PCIe 2.0 X1

  1. PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.

  MULTI-GPU

  • Supports AMD CrossFire™ Technology

  ONBOARD GRAPHICS

  • 1x DVI-D port, support a maximum resolution of 1920×1200 @60Hz ¹
  • 1x HDMI™ 2.0b port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz ¹/²
  • Maximum shared memory of 16 GB

  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

  SATA PORTS

  • 6x SATA 6Gb/s ports (From B550 chipset)

  M.2 SSD SLOTS

  • 1x M.2 slot (Key M)
    • M2_1 slot (From CPU)
      • Supports PCIe 3.0 x4
      • Supports SATA 6Gb/s
      • Supports 2260/ 2280/ 22110 storage devices

  RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

  AUDIO

  Realtek^® ALC897 Codec

  • 7.1-Channel High Definition Audio

  LAN

  • 1x Realtek^® RTL8111H LAN controller

  POWER CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector

  INTERNAL USB CONNECTORS

  • 1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset)
    • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 connectors (From B550 chipset)
    • Supports additional 4 USB 2.0 ports

  FAN CONNECTORS

  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 4x 4-pin system fan connectors

  SYSTEM CONNECTORS

  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Parallel port connector

  JUMPERS

  • 1x Clear CMOS jumper

  LED FEATURES

  • 2x 4-pin RGB LED connectors
  • 4x EZ Debug LED

  BACK PANEL PORTS

  1. Keyboard / Mouse
  2. USB 3.2 Gen 1 5Gbps Type-A
  3. LAN
  4. Audio Connectors
  5. Flash BIOS Button
  6. USB 2.0
  7. DVI-D
  8. HDMI™
  9. USB 3.2 Gen 2 10Gbps Type-A



  I/O CONTROLLER

  NUVOTON NCT6797 Controller Chip

  HARDWARE MONITOR

  • CPU/ System/ Chipset temperature detection
  • CPU/ System/ Pump fan speed detection
  • CPU/ System/ Pump fan speed control

  FORM FACTOR

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

  BIOS FEATURES

  • 1x 256 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.1, SMBIOS 2.8
  • Multi-language

  SOFTWARE

  • MSI Center
  • CPU-Z MSI GAMING
  • Google Chrome™, Google Toolbar, Google Drive
  • Norton™ Internet Security Solution
