Description
SPECIFICATIONS
Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (full modular)

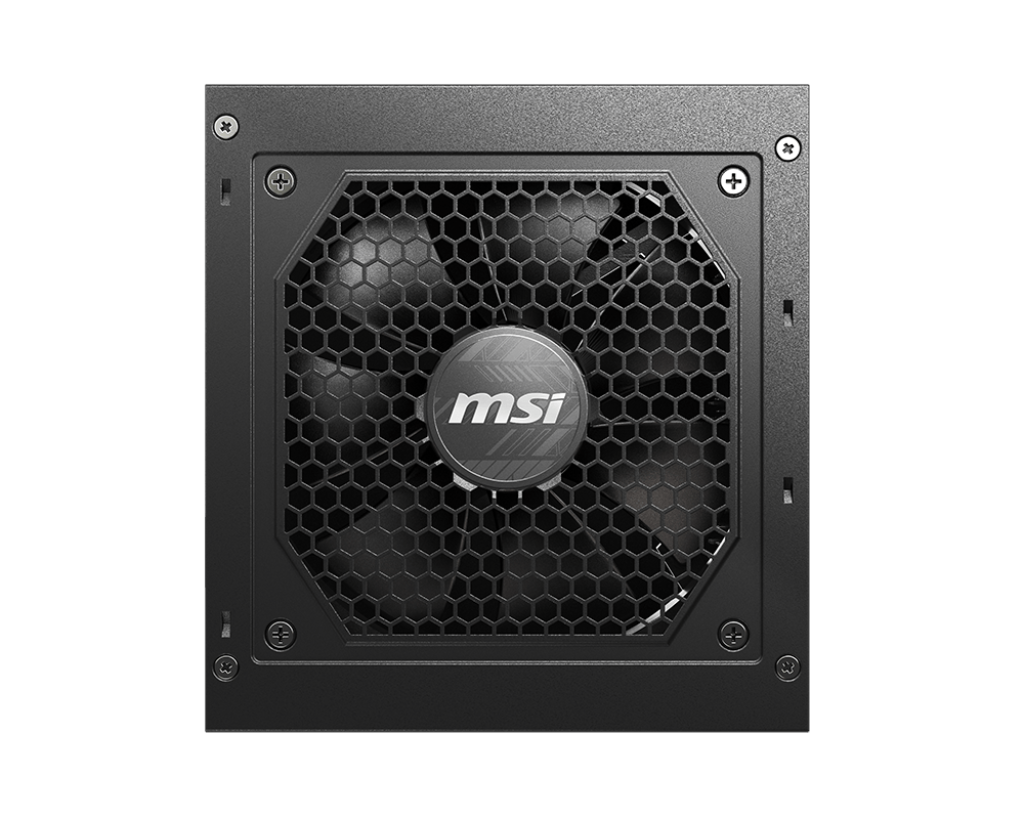

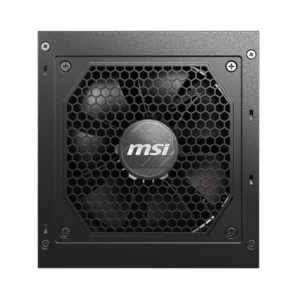

Fan Size 120 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 140 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100~240 VAC
Power Watt 850W
Power Excursion 1700W (*up to 200% of the PSU’s rated power for
100μs)
Input Frequency Range 47-63Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP

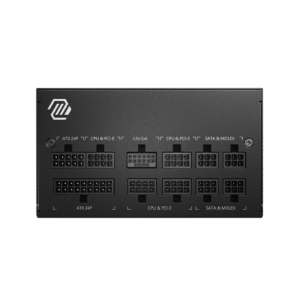

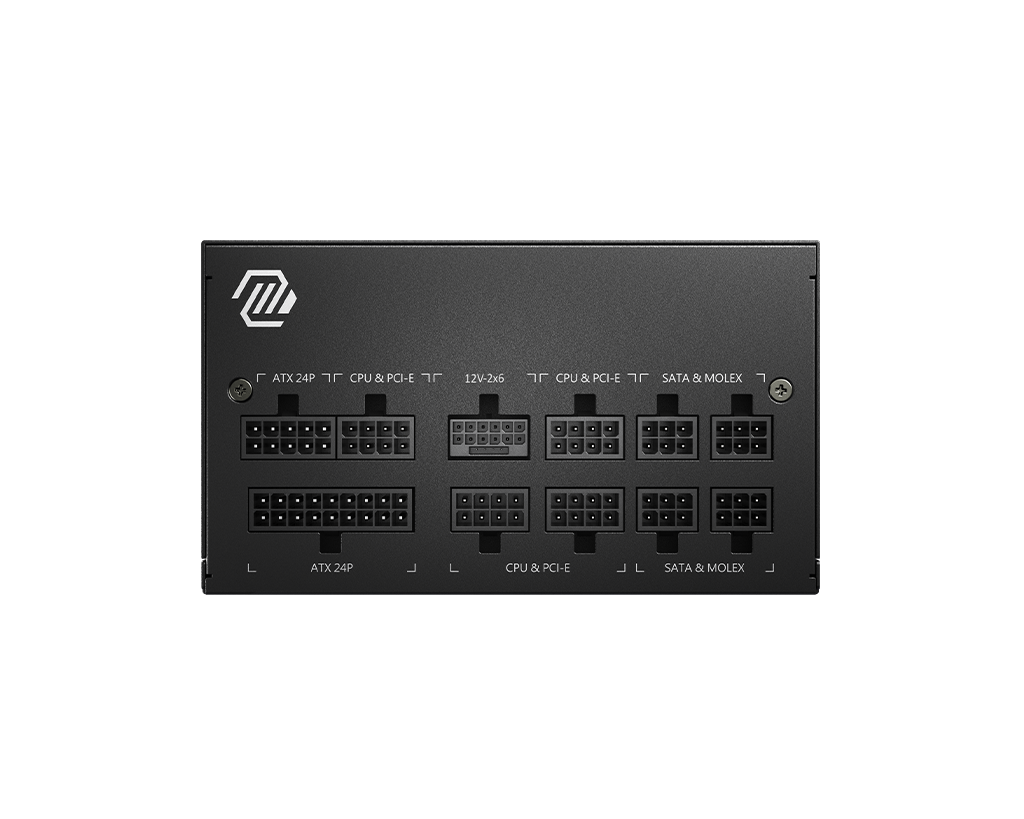

ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.0 (16 pin) 1 (600W)
PCI-E (6+2 pin) 4
SATA (15 pin) 8
PERIPHERAL (4 pin) 4
FDD (4 pin) 1
