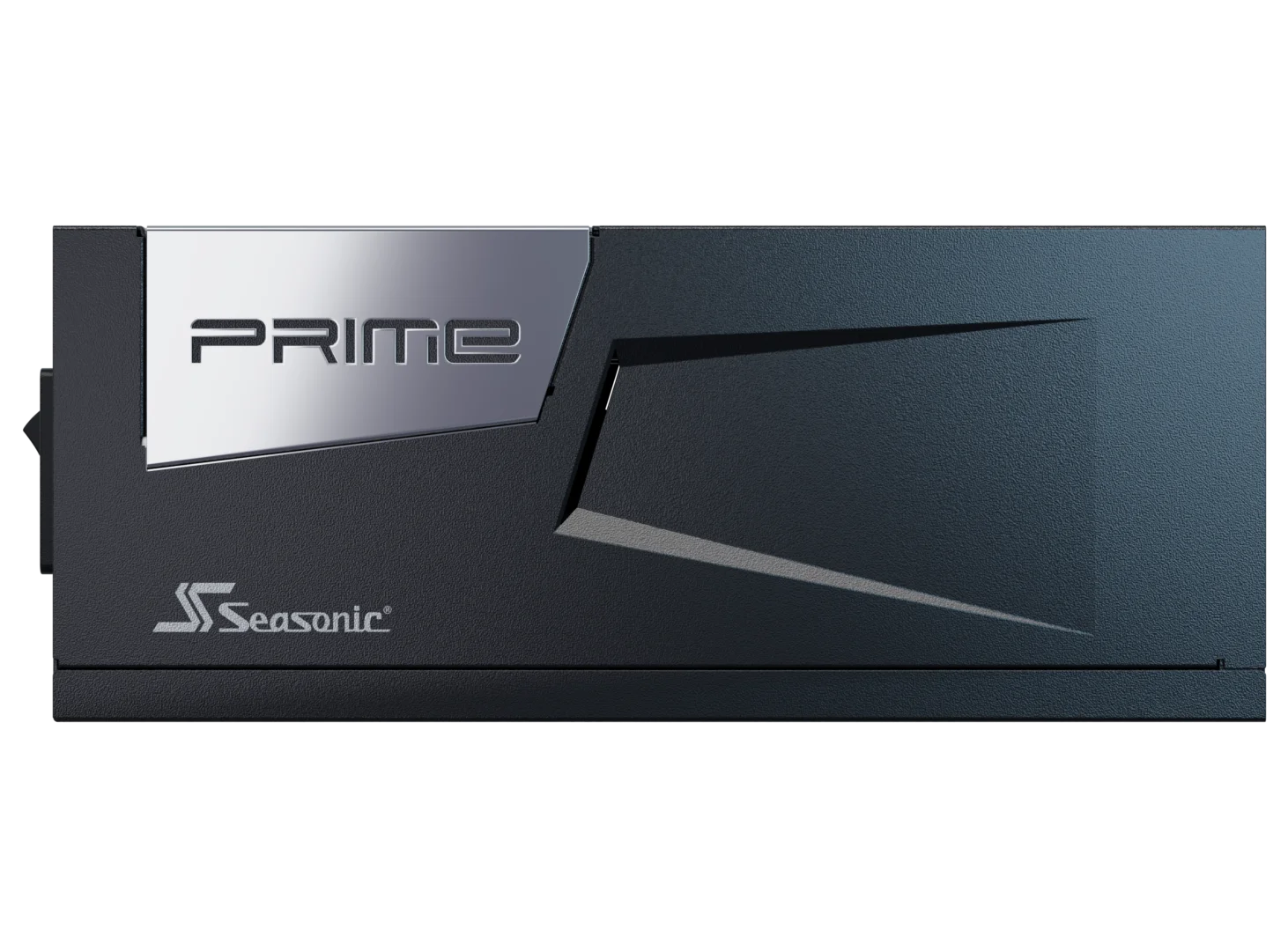

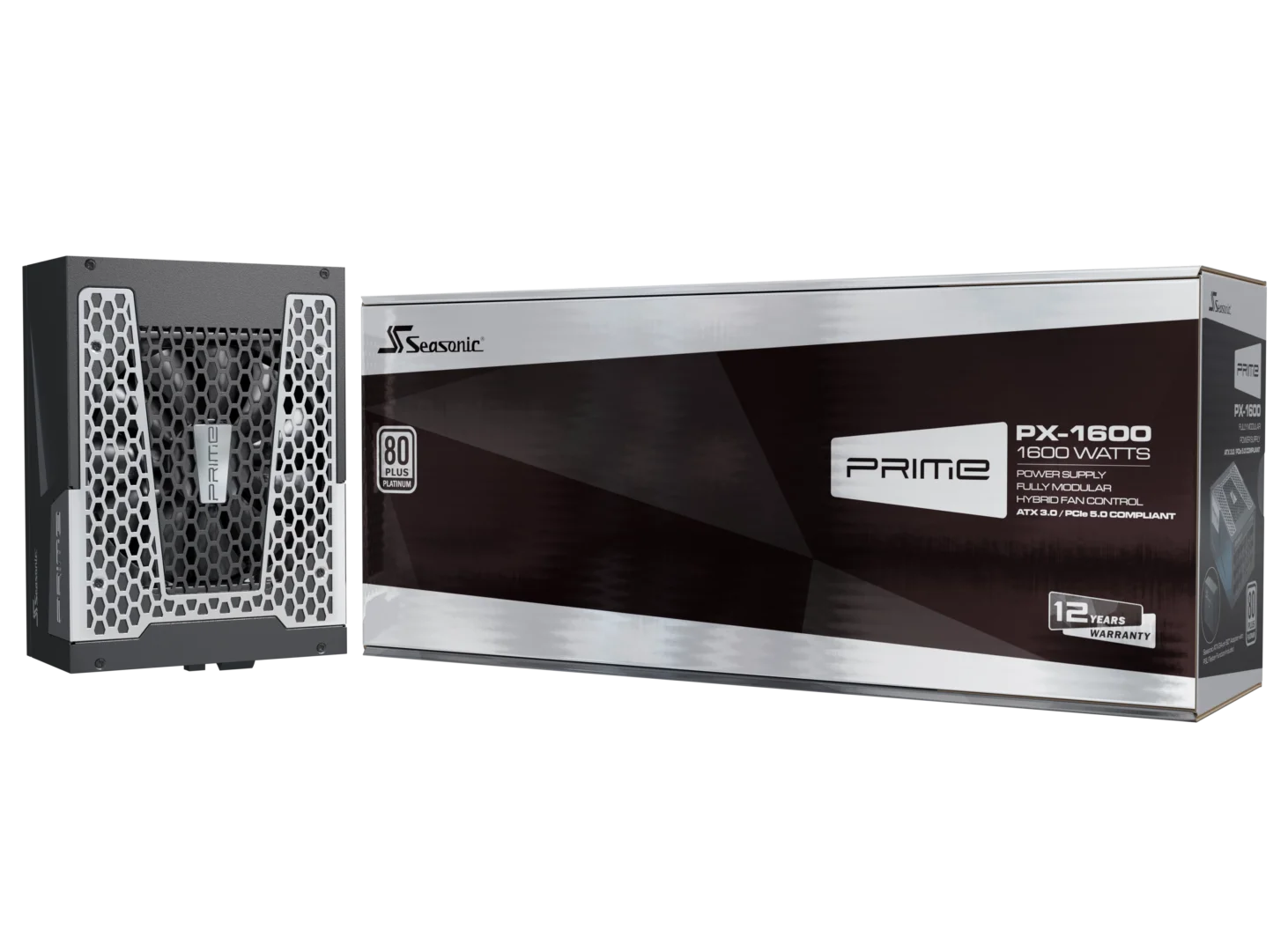

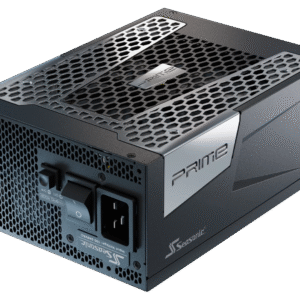

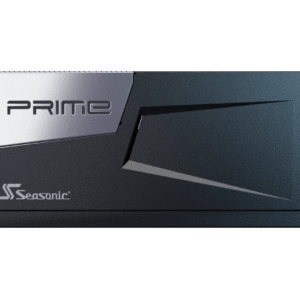

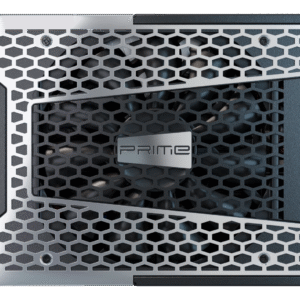

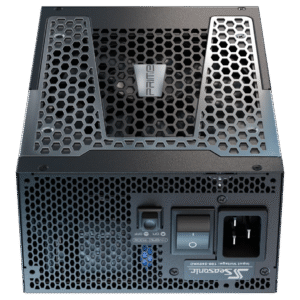

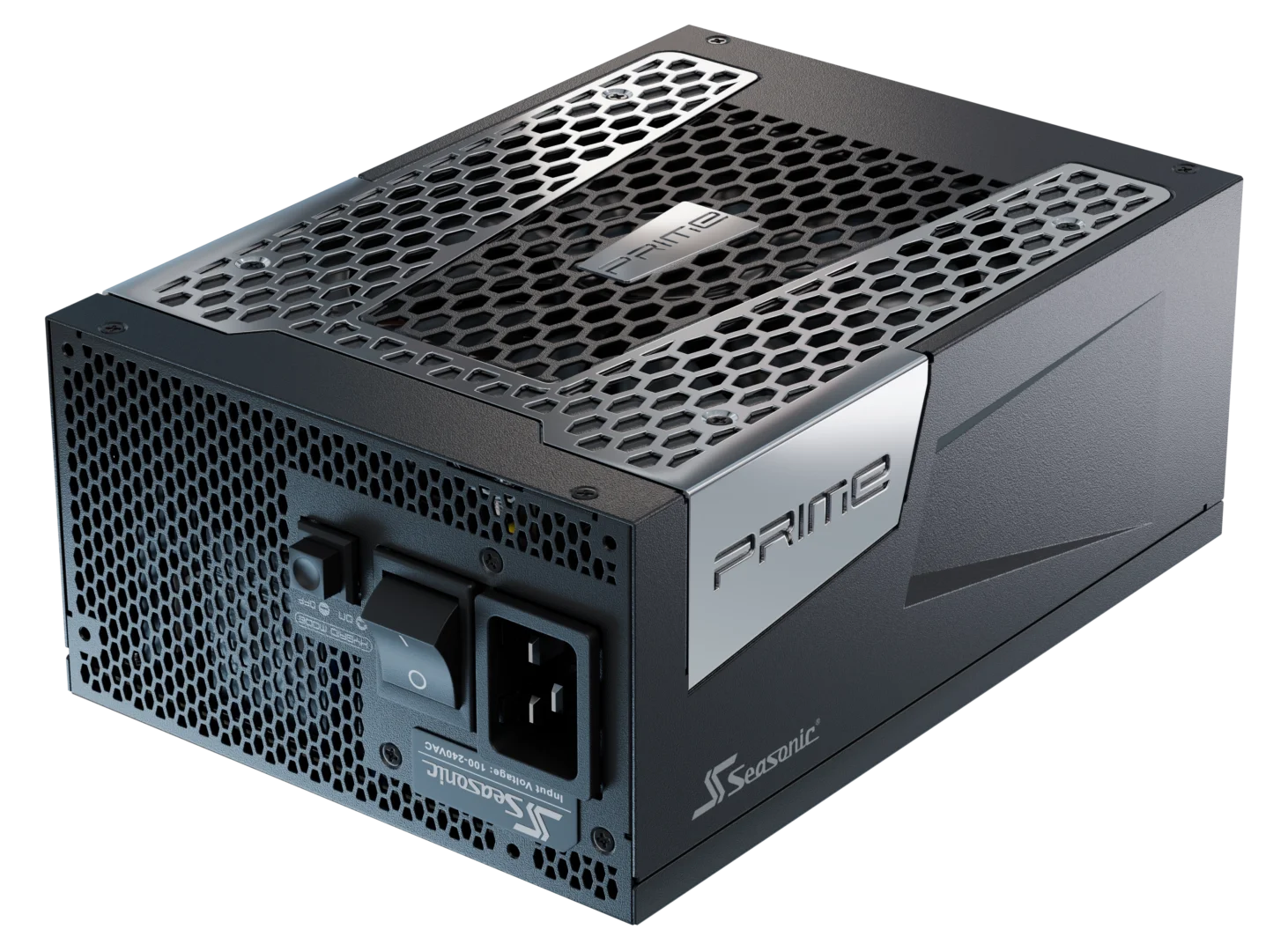

Seasonic PRIME PX ATX 3.1 1600 W
Seasonic PRIME PX ATX 3.1 1600 W - Image 2
Seasonic PRIME PX ATX 3.1 1600 W - Image 3
Seasonic PRIME PX ATX 3.1 1600 W - Image 4
Seasonic PRIME PX ATX 3.1 1600 W - Image 5
Seasonic PRIME PX ATX 3.1 1600 W - Image 6
Seasonic PRIME PX ATX 3.1 1600 W - Image 7

Seasonic

Seasonic PRIME PX ATX 3.1 1600 W

22.000,00 EGP

PRIME PX ATX 3.1 The Seasonic PRIME PX ATX 3.1 Series is built on top of all the great features of PRIME PX platform with added ATX 3.1 and PCIe 5.1 compatibility. Currently the 1600 W is equipped with native 12V-2×6 connectors and Digital Fan Control, and 105°C-rated Japanese electrolytic capacitors guarantee unwavering power delivery and long-term…

Sell with *

Total 22.000,00 EGP

Authorized dealer · 12-month warranty · Free delivery over EGP 5,000

Description

Specifications

1600 W
Technical Specifications
80PLUS®Platinum
Cybenetics Efficiency LevelTitanium
Cybenetics Noise LevelA-
Form FactorATX/EPS
Dimensions210 × 150 × 86 mm

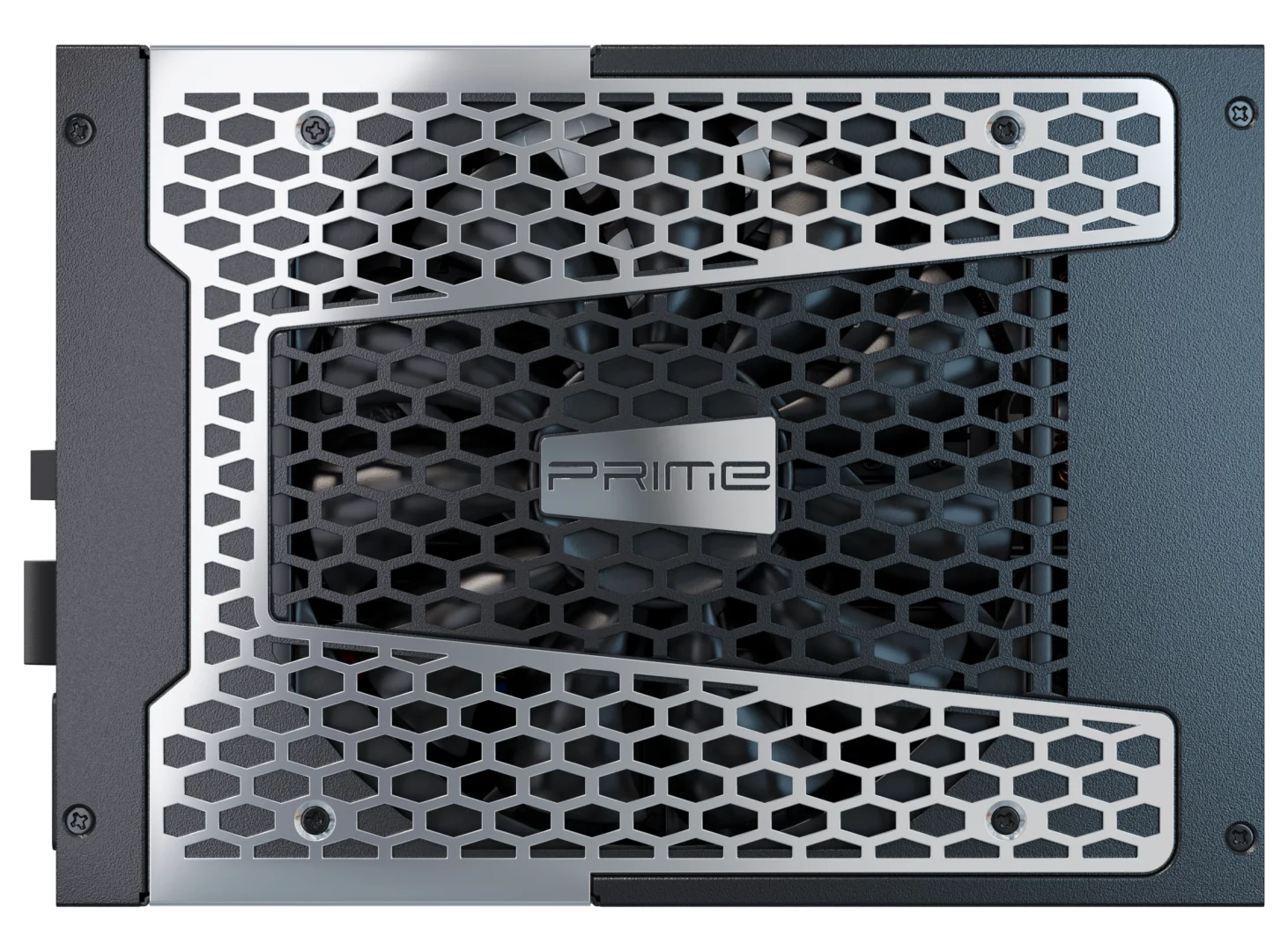

Fan InformationFan Size135 mm
Fan ControlDigital Hybrid Fan Control
Fan BearingFluid Dynamic Bearing
Life Expectancy50,000 hours at 40 °C, 15 % – 65 % RH
Cable InformationModularityFully Modular
Cable typeIndividual Black Cables with Braided Pattern
Electrical FeaturesOperating Temperature0 – 50 °C
MTBF @ 25 °C, excl. fan100,000 hours

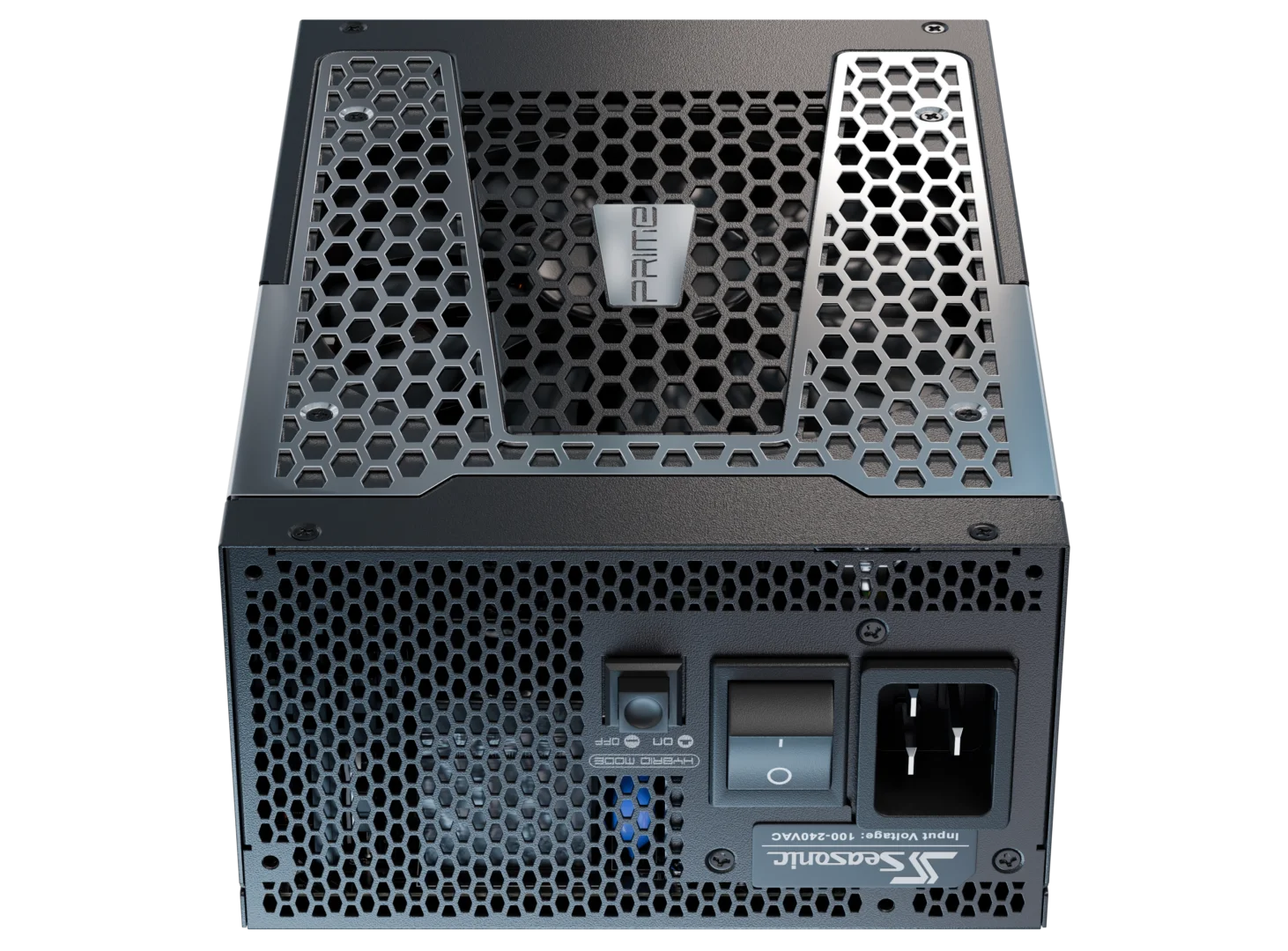

AC InputFull Range
ProtectionOPP, OVP, UVP, OCP, OTP, SCP
Safety and EnvironmentalSafety and EMCcTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental ComplianceEnergy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty12 Years
Power Output
AC Input100 V – 240 V
15 – 10 A
50 Hz – 60 Hz
DC OutputRail+3.3 V+5 V+12 V-12 V+5 VSB
Maximum Power25 A25 A133.3 A0.5 A3 A
125 W1600 W6 W15 W
Total continuous power1600 W 115-240Vac, 1300 W 100-240 Vac

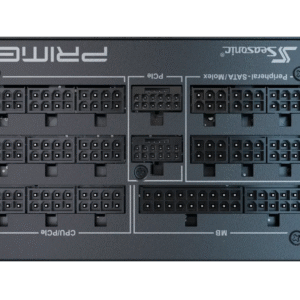

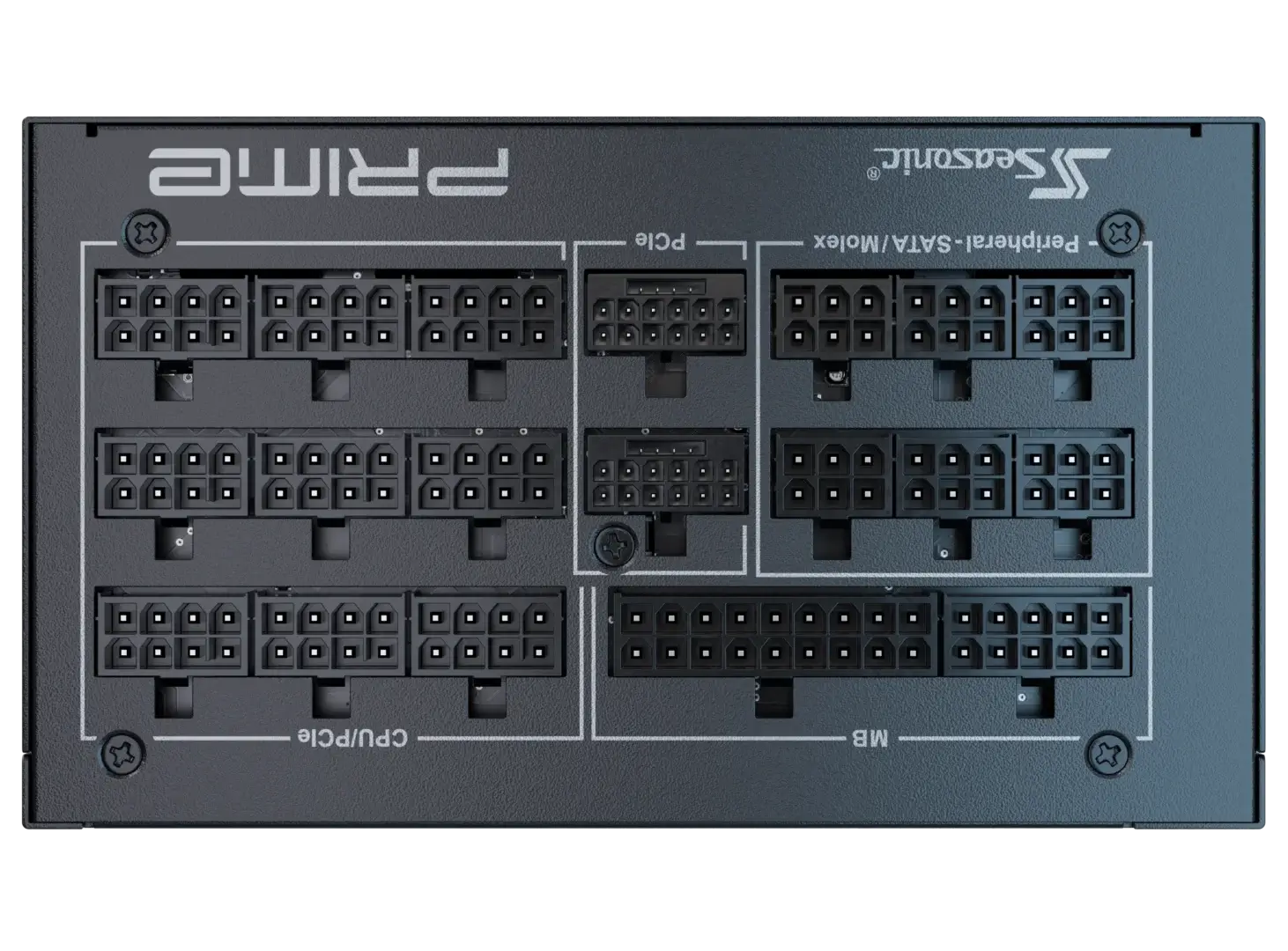

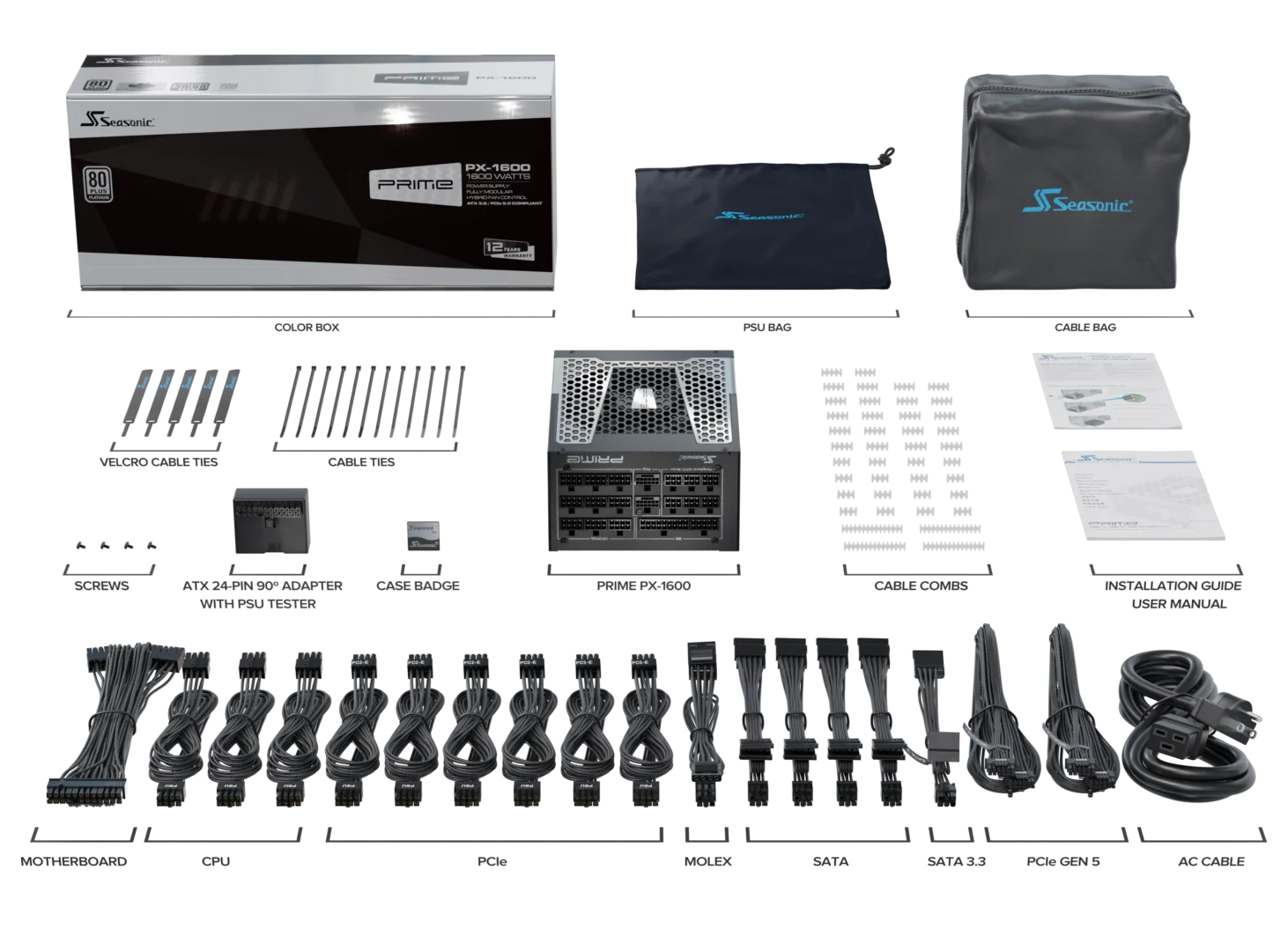

Cables

1600 W
610 mm
connector type

MB (24/20 pins)

1 connector
1 cable
700 mm
connector type

CPU (8/4 pins)

1 connector
3 cables
750 mm
connector type

PCIe (8/6 pins)

1 connector
6 cables
950 mm
connector type
connector type
connector type
connector type

SATA

4 connectors
4 cables
550 mm
connector type
connector type

SATA 3.3 V

2 connectors
1 cable
690 mm
connector type
connector type
connector type

Molex

3 connectors
1 cable
700 mm
connector type

12V-2×6 (12+4 Pins to 12+4 Pins)

1 connector
2 cables

Additional information

Brand

Seasonic

Power Supply Efficiency

80 Plus / Cybenetics Platinum

Power Supply Wattage

1600W-2000W
