Description
General Specifications
Compatibillity
Intel:
1851, 1700
AMD:
AM5, AM4
PI | NNPI:
308 | 230
TIM:
MX-6 (0.8 g)
Warranty:
6 Years
Operating Ambient Temperature:
0—40 °C
Weight:
1490 g
LED Connector:
3-Pin A-RGB Connector
All-In-One Connector:
4-Pin PWM Connector
Splitt Connector:
3x 4-Pin PWM Connector

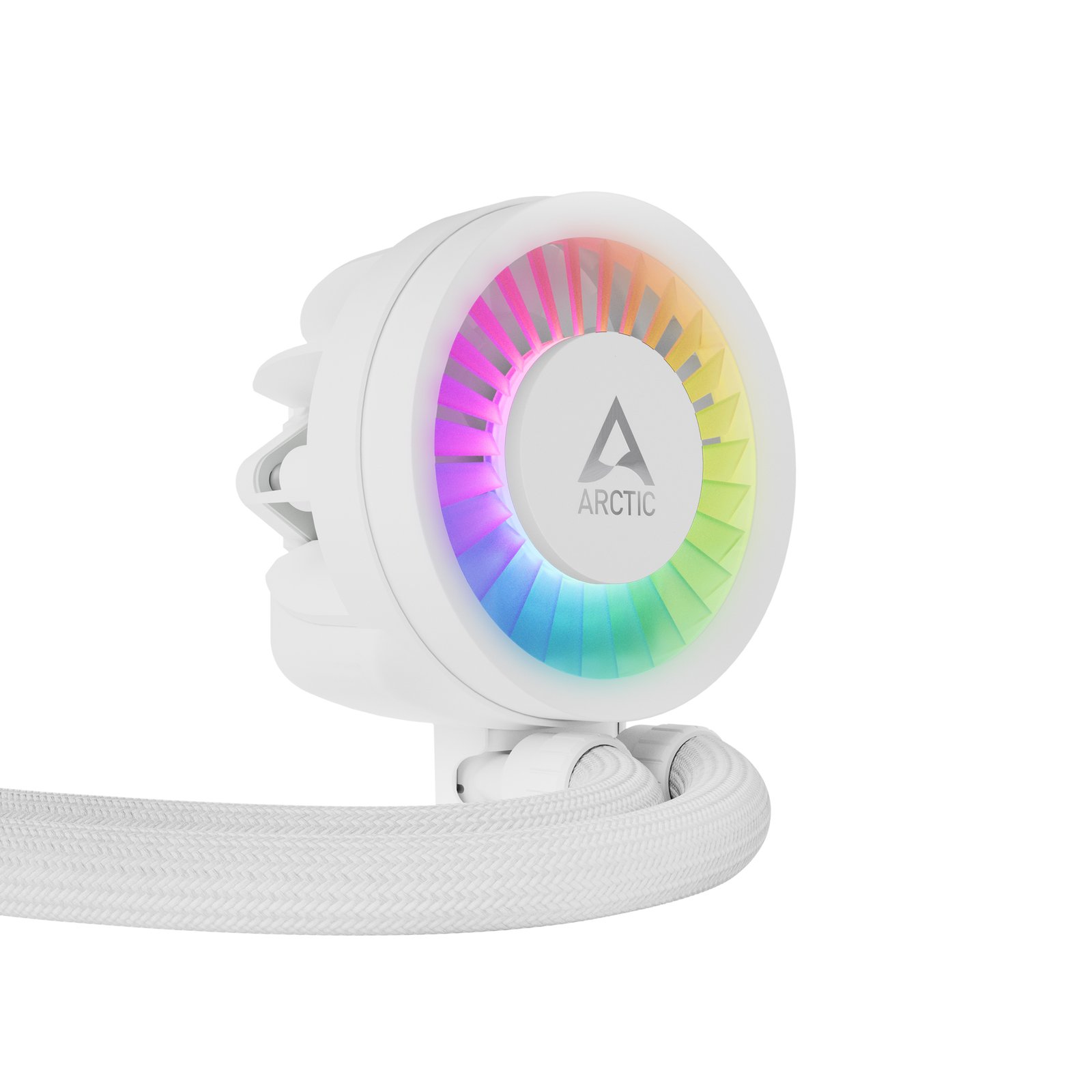

Pump
Pump:
800—2800 rpm (PWM controlled)
Current | Voltage:
0.35 A | 12 V DC
Cold Plate:
Copper, Micro Skived Fins
Tube Length:
450 mm
Tube Diameter:
Outer: 12.4 mm
Inner: 6.0 mm
Radiator
Material:
Aluminium
Dimensions:
277 (L) x 120 (W) x 38 (H) mm
VRM Module
VRM Fan:
400—2500 rpm (PWM controlled)
Current | Voltage:
0.05 A | 12 V DC
LEDs:
12x A-RGB LEDs
Current | Voltage:
0.40 A | 5 V DC
Radiator Fans
Fan:
2x P12 PWM PST A-RGB
Speed:
200—2000 rpm
Air Flow:
48.82 cfm | 82.91 m3/h
Static Pressure:
1.85 mmH2O
Bearing:
Fluid Dynamic Bearing
Current | Voltage:
0.11 A | 12 V DC
Cable Lenght:
40 mm
Connector:
4-Pin PWM Connector
RGB
LEDs:
12x A-RGB LEDs
Current | Voltage:
0.40 V | 5 V DC
Cable Lenght:
40 mm + 80 mm Splitter Cable
Connector:
3-Pin A-RGB Connector + 3-Pin Plug
