Description

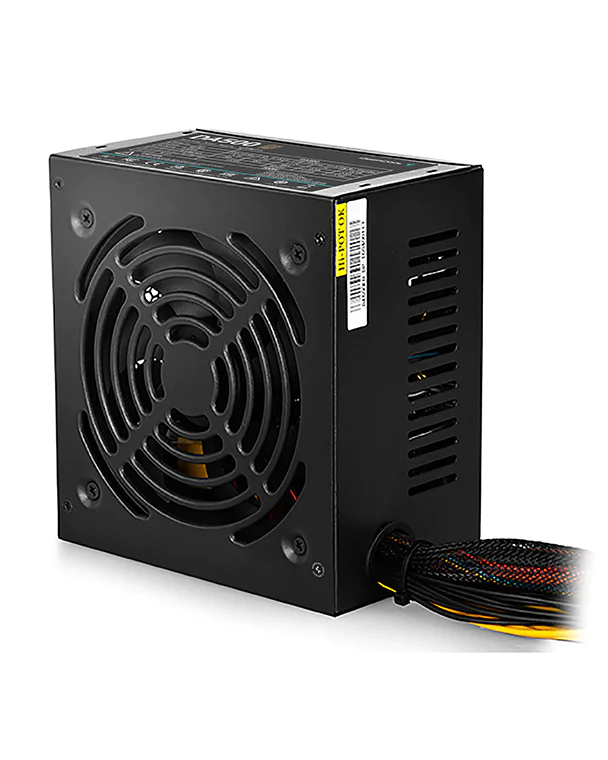

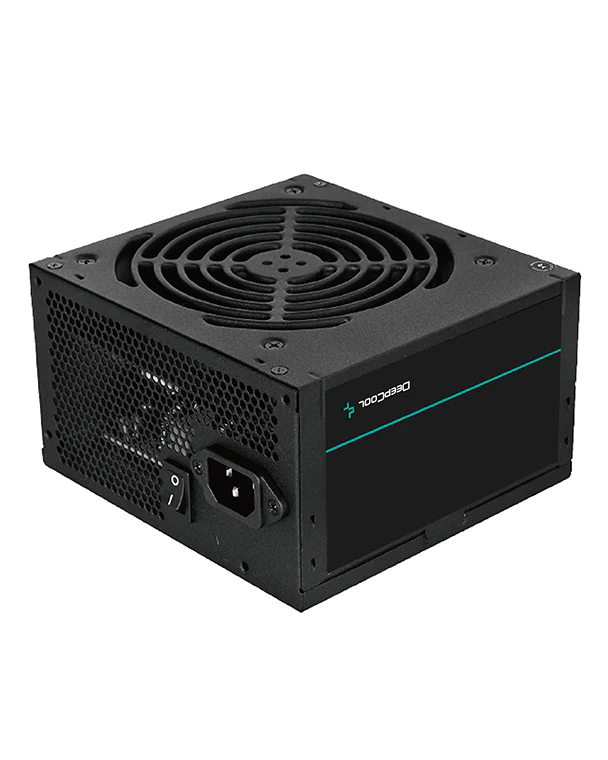

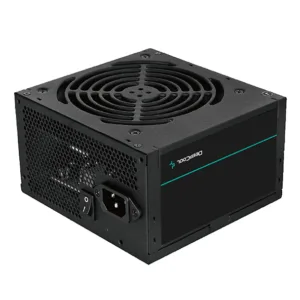

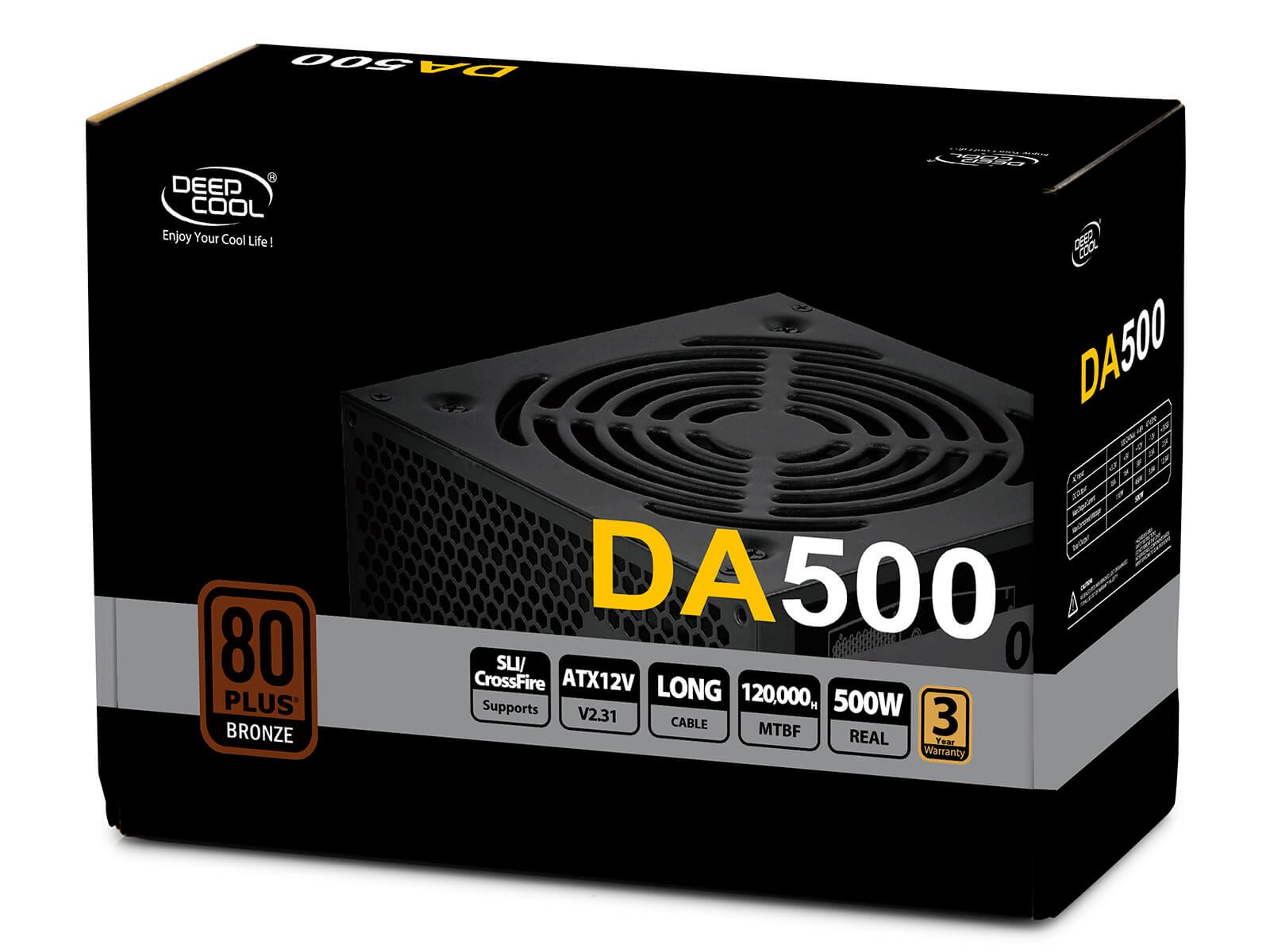

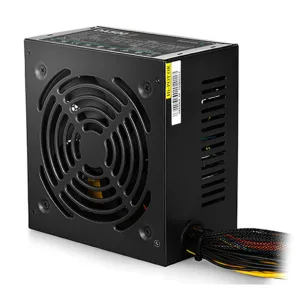

DA500
80PLUS Bronze certified 500W power supply PSU with 120mm Silent Fan.
DESCRIPTION
DA500 is certified with 80 plus bronze with up to 85% electrical efficiency enabling lower heat generation and lower operation cost. Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage. Double layer EMI filters protect from magnetic interference and restrains noise while operating.
80PLUS BRONZE
80PLUS Bronze certified provide high energy efficiency up to 85%. Click here to view the certification.

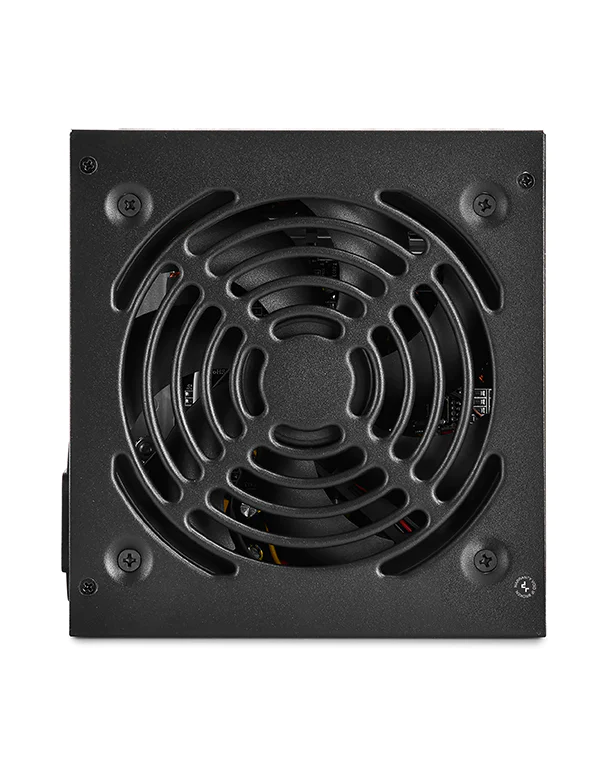

Silent and High Performance Fan
120mm silent fan to provide incredible performance-noise ratio.
Voltage Regulation
Idle/Standby Efficiency
Certification and Support
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
SATA×3+4pin Peripheral×1
X1
4pin Peripheral×2+SATA×2
X1
Technical Spec
| Model | DA500 |
| Type | ATX 12V V2.4 |
| Certifications | 80PLUS Bronze |
| Dimension | 150×140×86mm (W x L x H) |
| Output Capacity | 500W |
| Input Voltage | 100~240V |
| Input Current | 4~8A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm Black Fan |
| PFC | Active PFC (>0.99) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 85% Under Typical Load |
| Protection | OVP / UVP / SCP / OPP |
| Operation Temperature | 0~40°C |
| Regulatory | CB/CE/FCC/CCC/RCM/EAC/UKCA/S |
| MTBF | 100,000 Hours |
| EAN | 6933412798699 |
| P/N | DP-BZ-DA500N |
