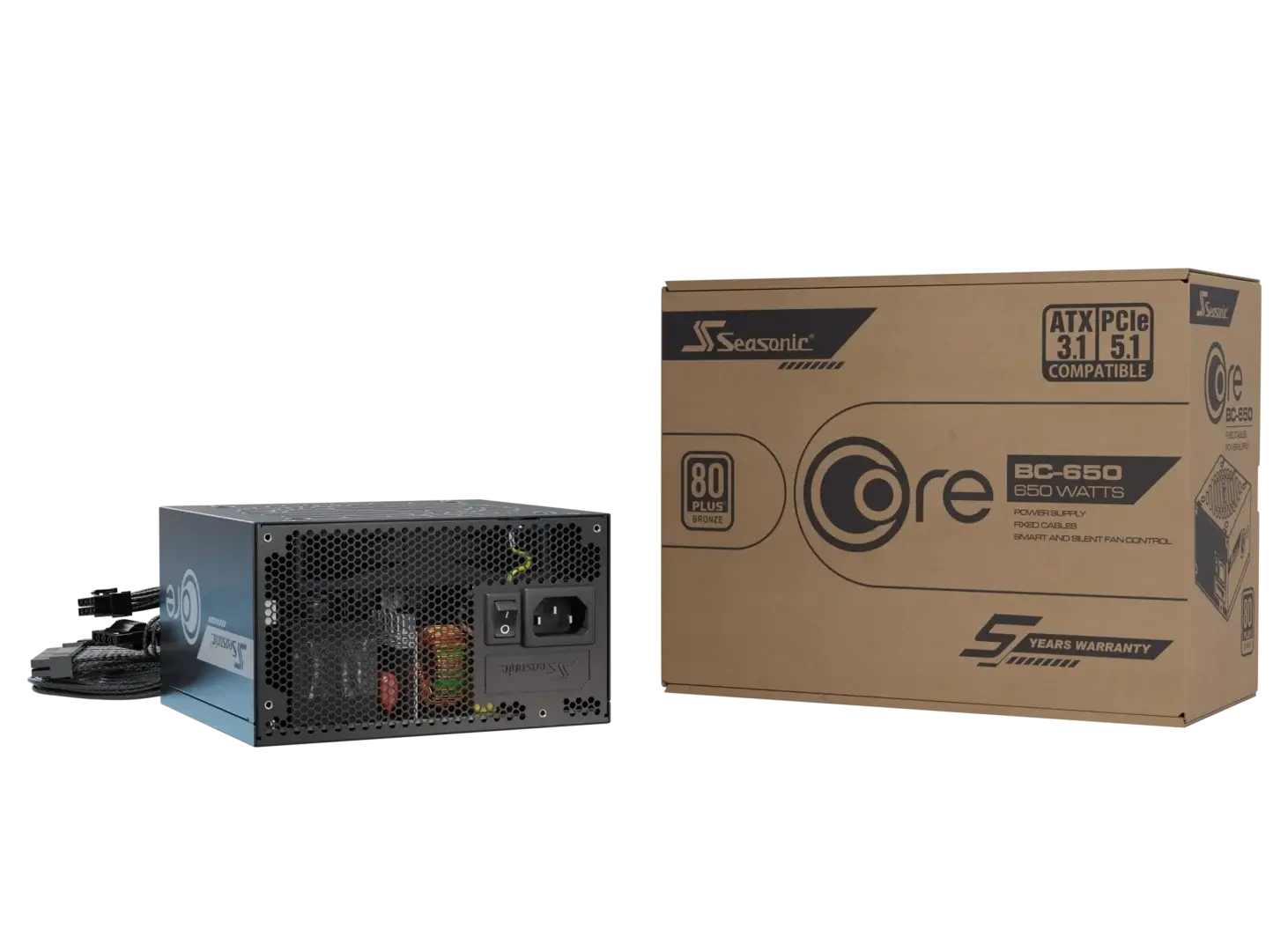

Seasonic CORE BC ATX 3.1 650 W 80 PLUS Bronze efficiency
3.100,00 EGP
CORE BC – Power Made Simple
The Seasonic CORE BC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic’s trusted quality in a compact 140 mm design with a durable scratch-resistant finish.
With 80 PLUS® Bronze efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE BC-750 and CORE BC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE BC-650 meets all ATX 3.1 requirements with traditional connectors.
Built on decades of engineering excellence, the CORE BC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply.
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Bronze | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | ATX/EPS | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | S²FC | |
| Fan Bearing | Hydro Dynamic Bearing | |
| Life Expectancy | 40,000 hours at 40 °C, 15 % – 65 % RH | |
| Cable Information | Modularity | Fixed Cables |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 – 40 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OCP, OPP, OTP, OVP, SCP, UVP | |
| Safety and Environmental | Safety and EMC | CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA |
| Environmental Compliance | Energy Star, RoHS, REACH, WEEE, ErP Lot 6 | |
| Warranty | 5 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V – 240 V | |||||
| 9 – 4.5 A | ||||||
| 50 Hz – 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 Vsb |
| Maximum Power | 20 A | 20 A | 54 A | 0.3 A | 2.5 A | |
| 100 W | 648 W | 3.6 W | 12.5 W | |||
| Total continuous power | 650W | |||||
Specifications may change without prior notice.
550 mm
MB (24/20 pins)
1 connector
1 cable
Attached
600 mm
CPU (8/4 pins)
2 connectors
1 cable
Attached
550 mm
PCIe (8/6 pins)
2 connectors
1 cable
Attached
600 mm
SATA / Molex
3 connectors
1 cable
Attached
650 W model meets ATX 3.1 requirements using standard PCIe 8-pin connectors (instead of 12V-2×6).
| Brand | Seasonic |
|---|---|
| Power Supply Efficiency | 80 Plus / Cybenetics Bronze |
| Power Supply Wattage | 600W-650W |
