Description

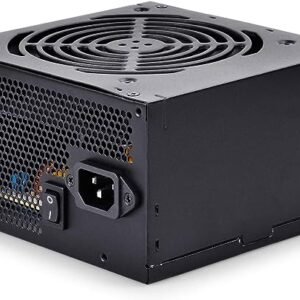

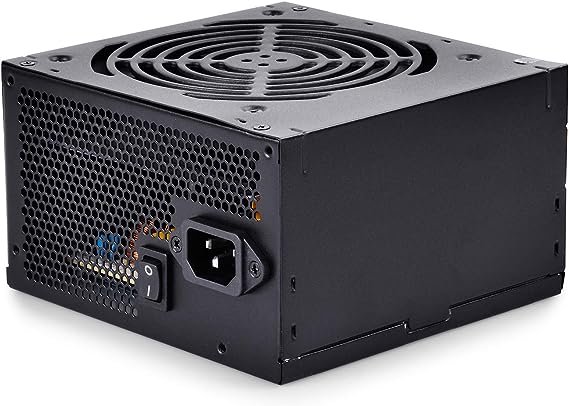

DN500
500w rated power with 80 PLUS® 230V EU certified — up to 85% efficiency
DESCRIPTION
DN 500 is certified to 80 PLUS® 230V EU, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. The PSU is designed to have < 1W power consumption under off-mode, and is therefore compliant to the Effective Radiated Power (ErP) standard. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications.
80 PLUS® 230V EU
80 PLUS® 230V EU certified provides a high energy efficiency of up to 85%. Click here to view the certification.
Silent, High Performance Fan
120 mm silent fan with temperature control that provides an incredible performance-to-noise ratio.

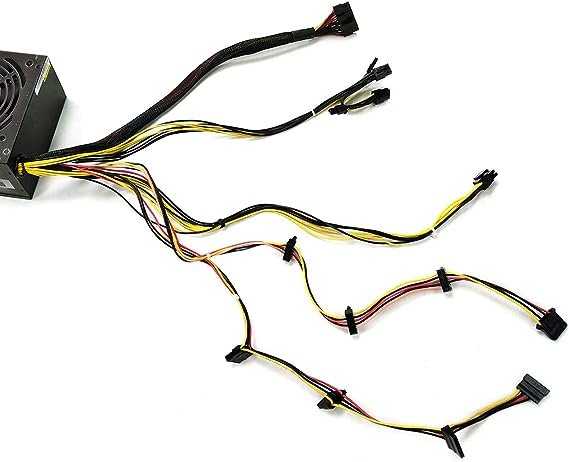

Longer Cable Design
Longer cable design for enhancing cable management.
Certification and Support
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X1
PCI-E(6+2)Pin x 2
X1
SATAx3+4pin Peripheralx1
X1
4pin Peripheralx2+ SATAx2
X1

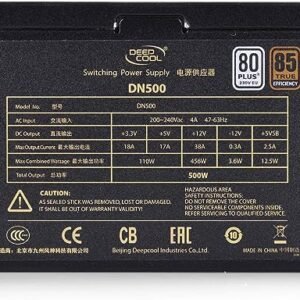

Technical Spec
| Model | DN500 |
| Type | ATX 12V V2.4 |
| Dimension | 150×140×86mm (W x L x H) |
| Output Capacity | 500W |
| Input Voltage | 200-240V |
| Input Current | 4A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm |
| PFC | Active PFC (>0.99) |
| Power Good Signal | 100-500ms |
