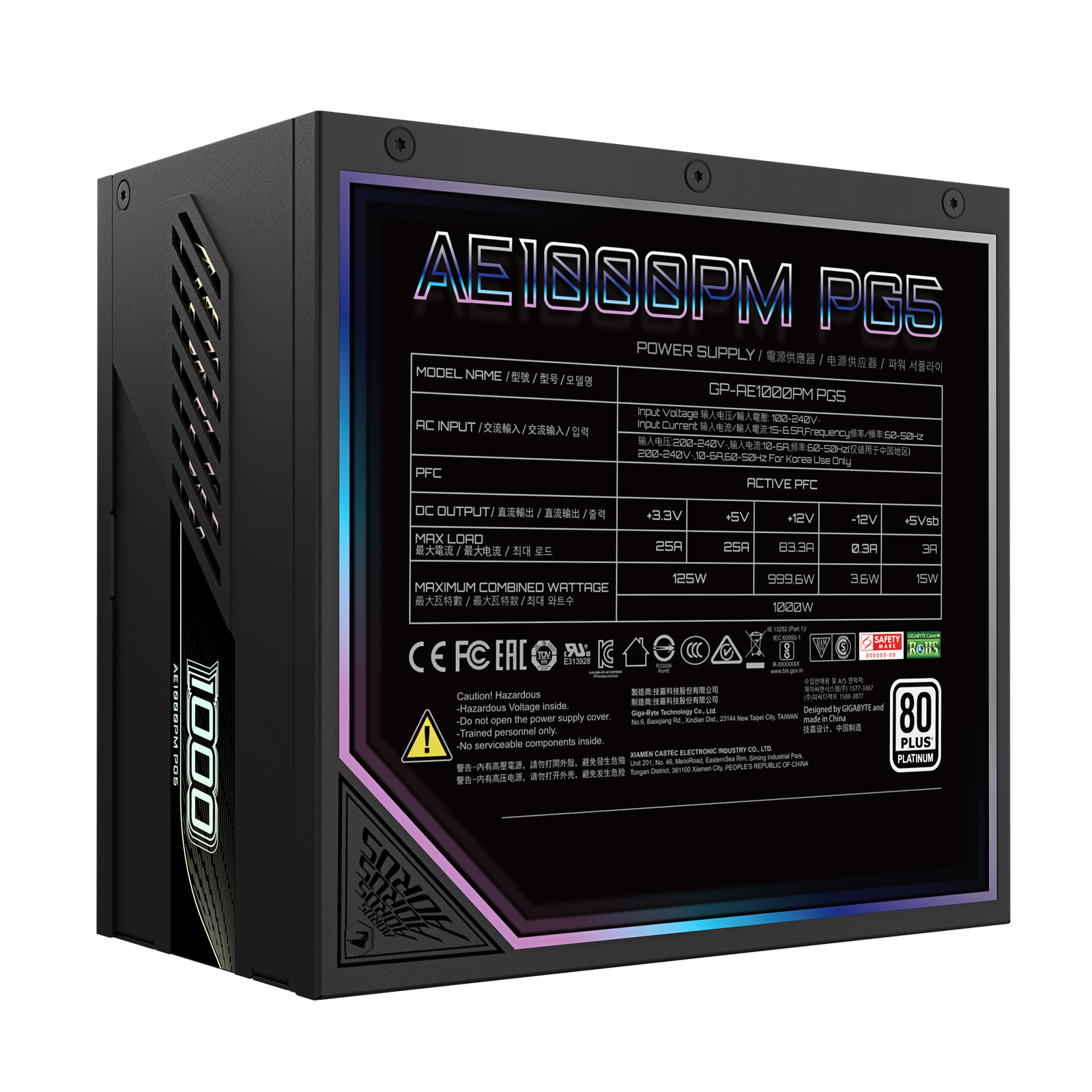

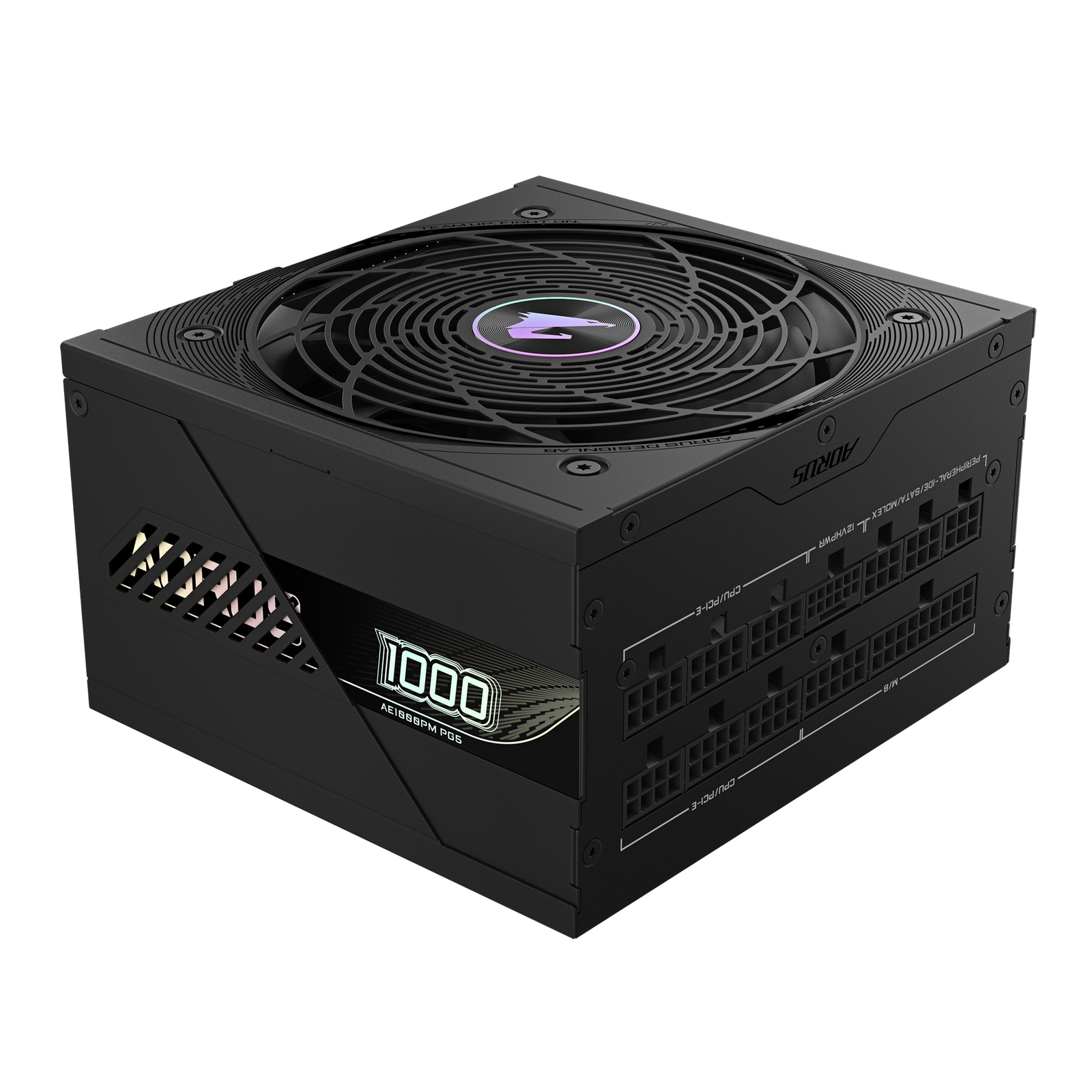

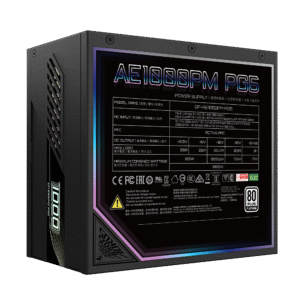

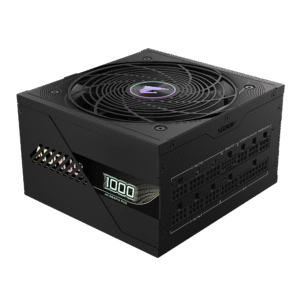

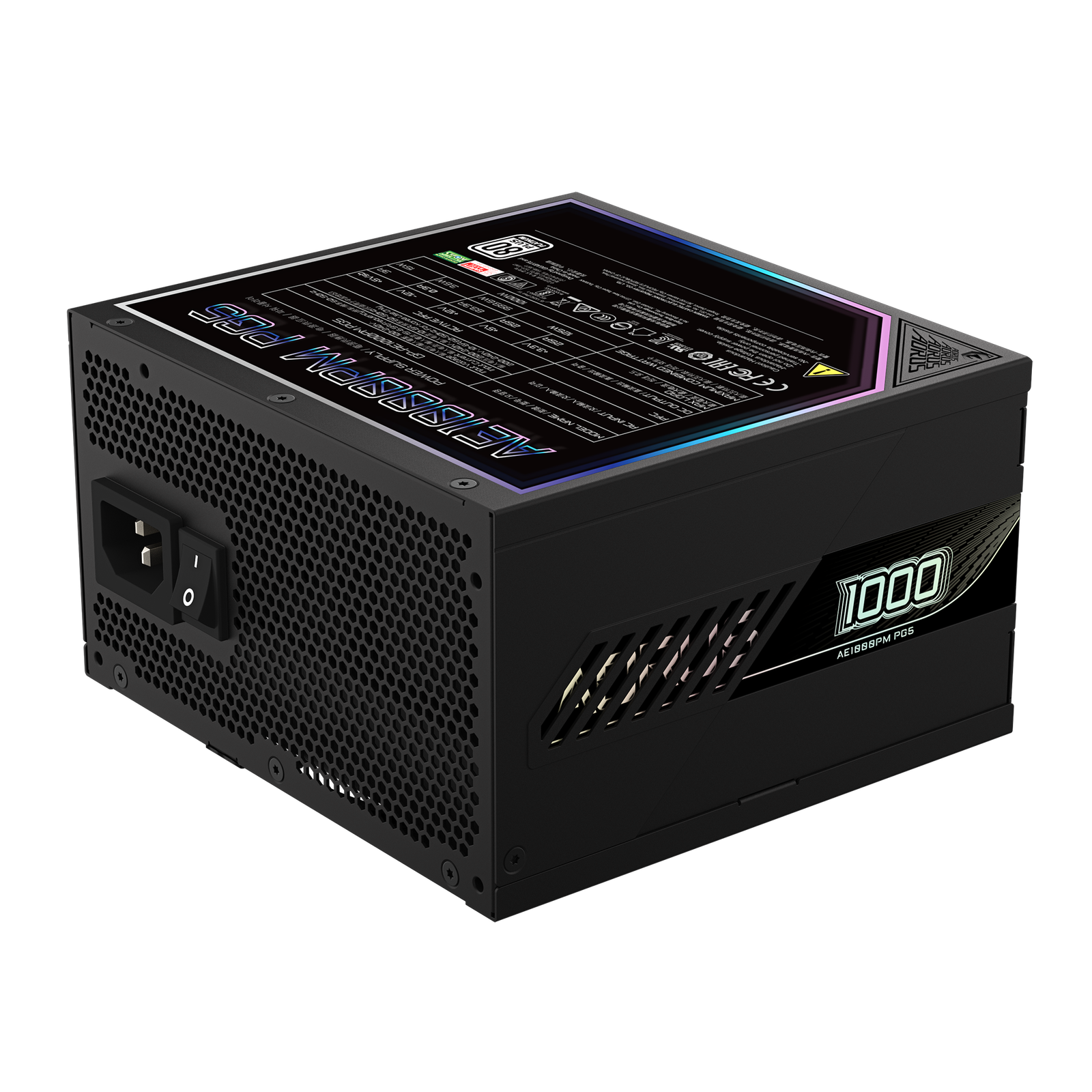

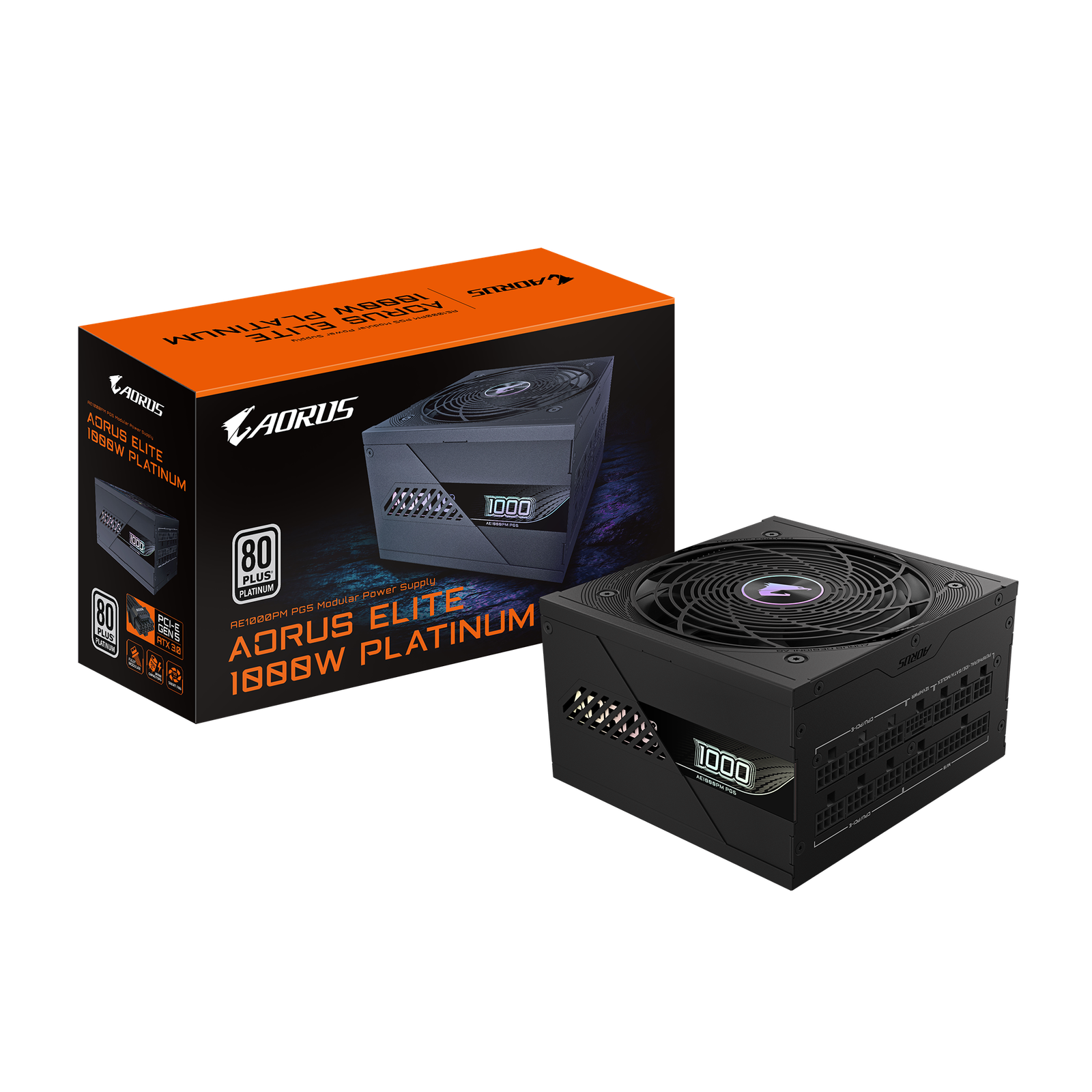

GIGABYTE AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0
9.000,00 EGP
KEY FEATURE
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 10 years warranty (Adjusted according to different regions)
- ModelGP-AE1000PM PG5 ICE
- TypeIntel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
- PFCActive PFC (>0.9 typical)
- Input Voltage100-240 Vac (full range)
- Input Current15-6.5A
- Input Frequency60-50 Hz
- Output Capacity1000W
- Dimensions150 x 140 x 86mm
- Fan Type120mm Fluid Dynamic Bearing (FDB) Fan
- 80 PLUSPlatinum
- Efficiency92% at typical load
- MTBF>100,000 hours
- ProtectionsOVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal100-150ms
- Hold Up Time>16ms
- Cable TypeFlat, All white

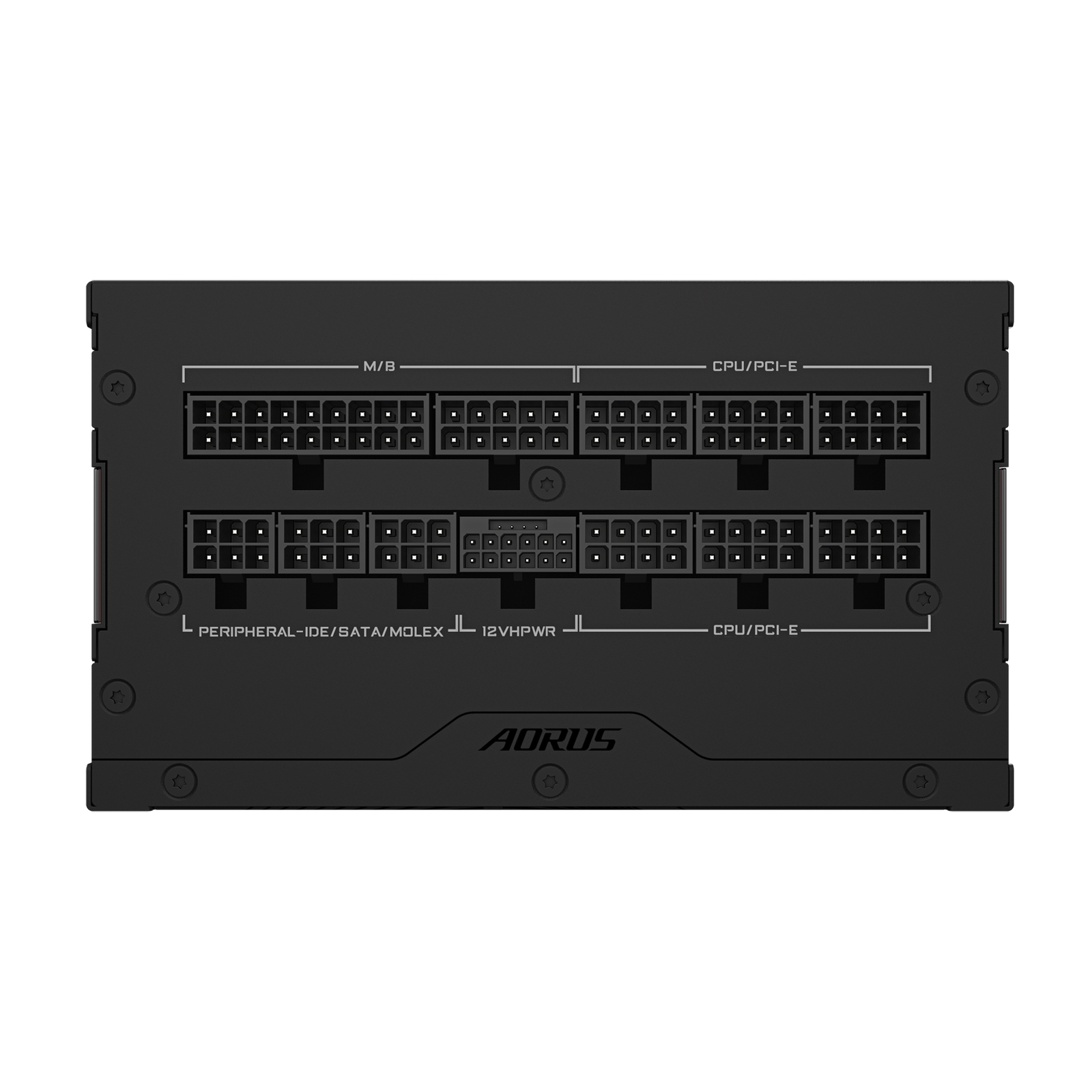

- ConnectorsATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
| Brand | AORUS, GIGABYTE |
|---|---|
| Power Supply Efficiency | 80 Plus / Cybenetics Platinum |
| Power Supply Wattage | 850W-1000W |
