GRIZZLY Thermal Pads PHASE PTM 50X40
550,00 EGP

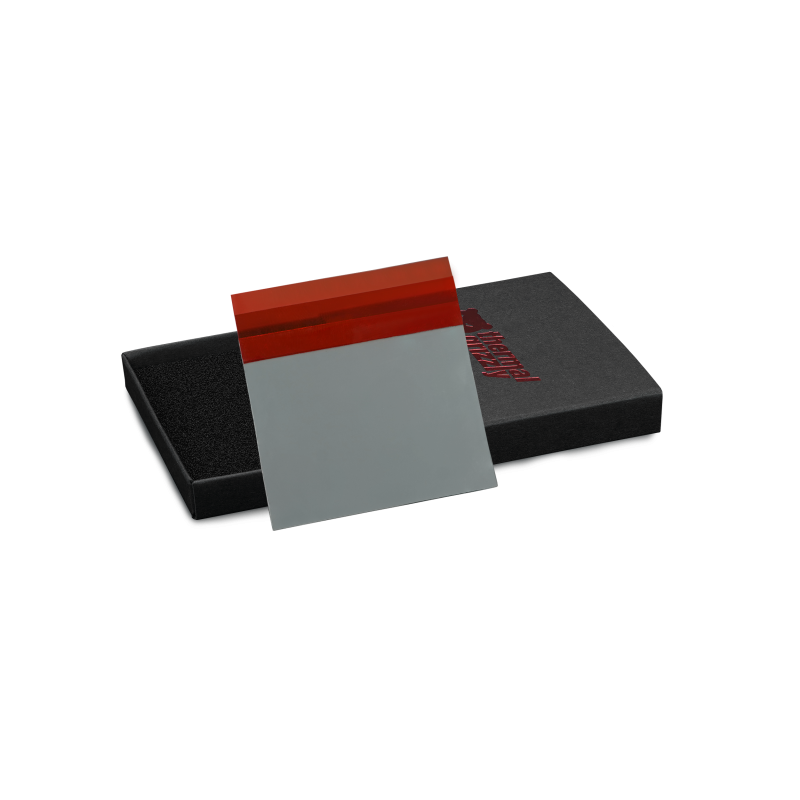

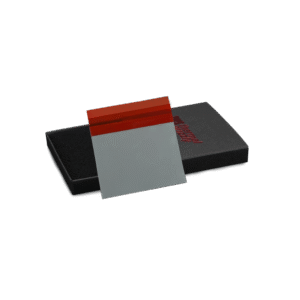

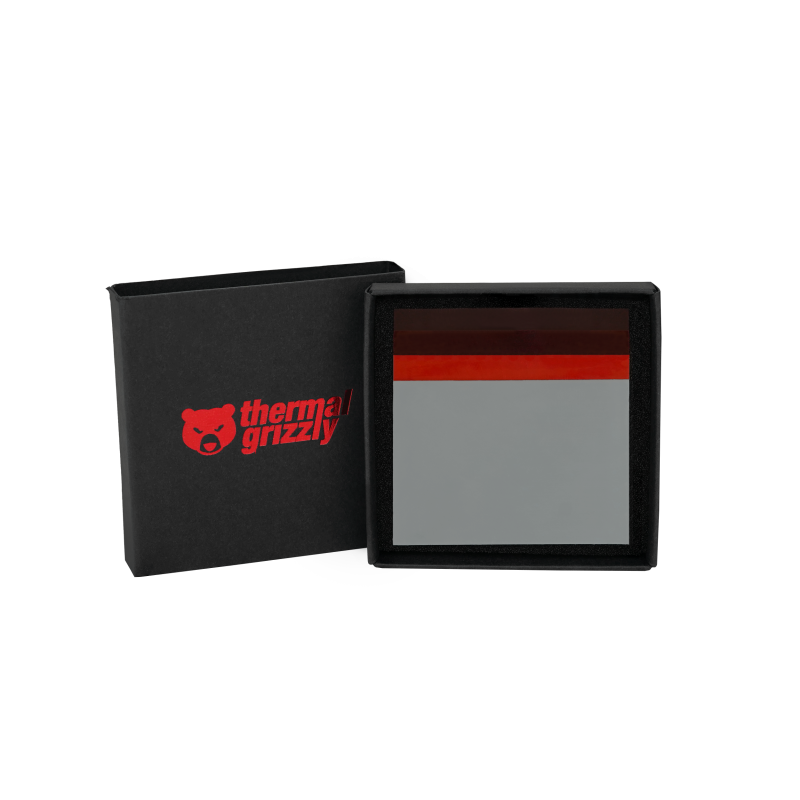

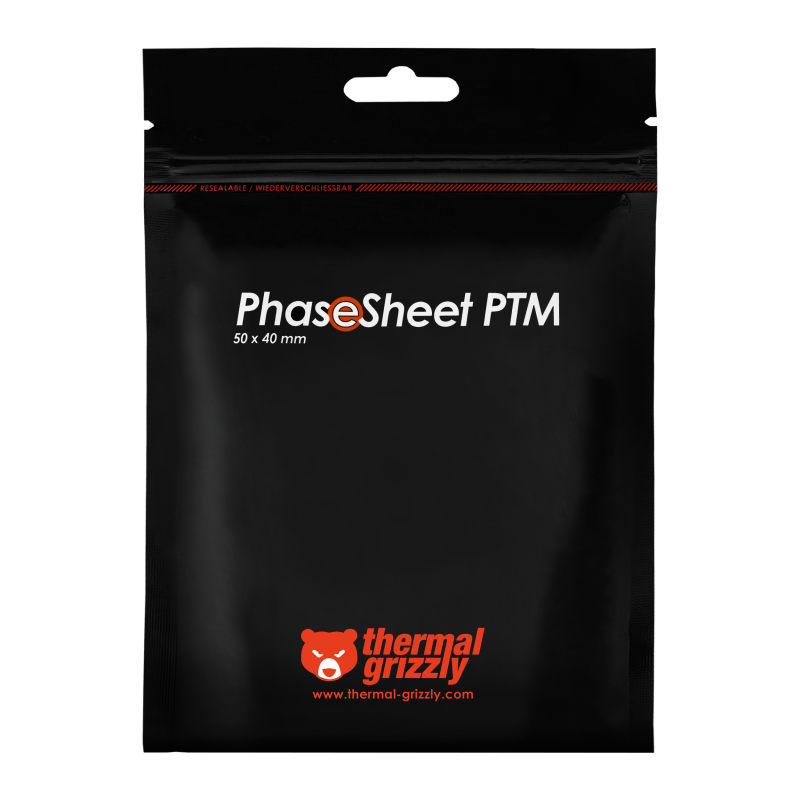

PhaseSheet PTM
The PhaseSheet PTM is a thermal pad based on a phase change material (PCM). The pads, which are solid at room temperature, can be easily applied and liquefy during operation, allowing them to effectively dissipate heat like a thermal paste. PhaseSheet PTM is electrically non-conductive and can therefore be used in many areas, with the primary application being in processors and graphics chips.
| Electrically insulating: | No |
|---|---|
| Operating temperature: | -250°C to +150°C |
| Size: | 25 x 25 mm |
| Thickness: | 0.2 mm |
| Color: | anthracite |
Product information “PhaseSheet PTM”
The phase-change material on which the PhaseSheet PTM is based is solid at room temperature. The material only begins to liquefy at temperatures above 45 degrees Celsius. A high contact pressure of around 300-400N is required for optimum distribution of the liquid PhaseSheet PTM and thus the lowest possible layer thickness. PhaseSheet PTM has a very low viscosity in its liquid state and contracts again when it changes to a solid material, thus minimizing the pump-out effect.
Properties
- Outstanding thermal conductivity
- Consistently high performance
- Very long service life
- Versatile in application
- Not electrically conductive
- Easy to use
| Brand | GRIZZLY |
|---|
