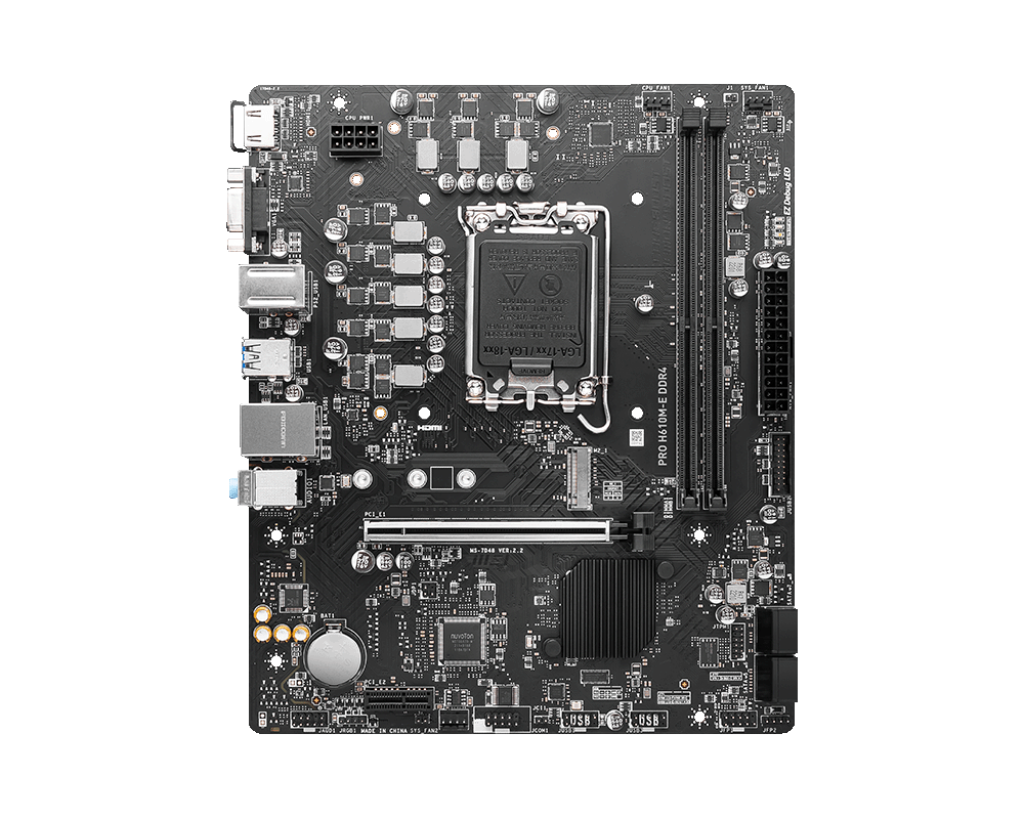

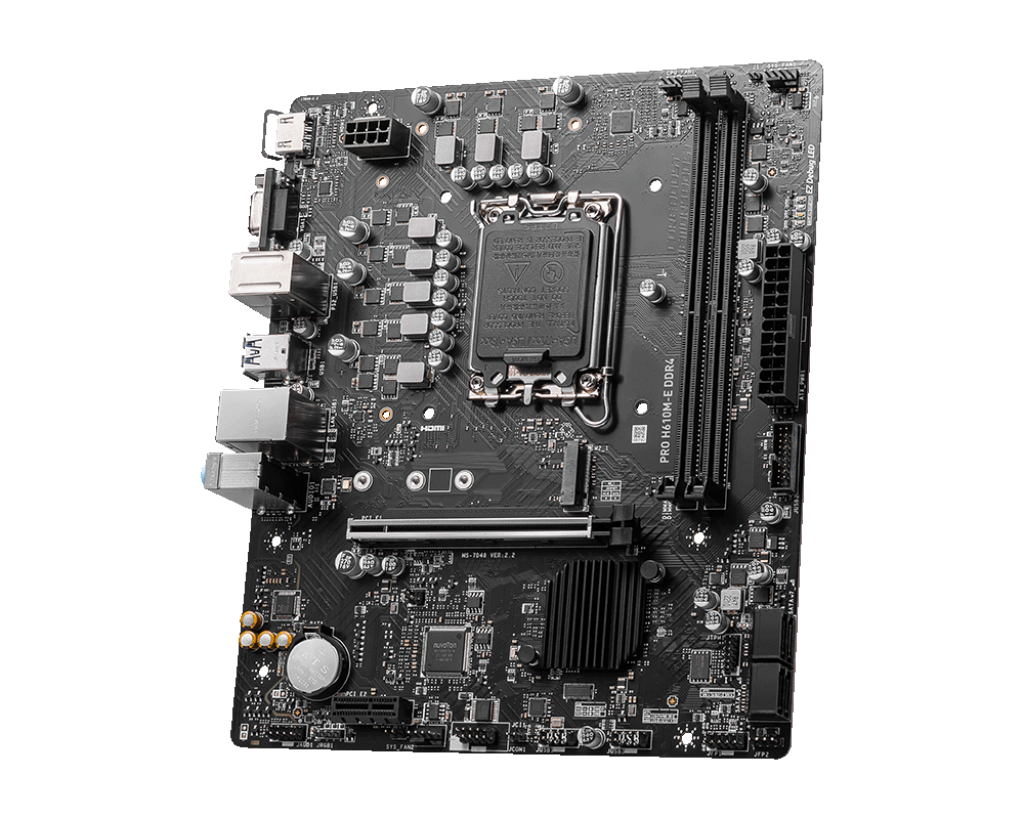

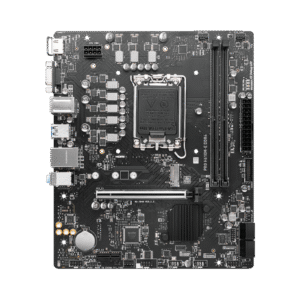

MSI PRO H610M-E DDR4

PROCESSOR

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors ¹
• Processor socket LGA1700

1. Please go to www.msi.com to get the newest support status as new processors are released.

See supported processors

CHIPSET

Intel^® H610 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB ¹
• Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 1x PCIe x16 slot (From CPU)
  • Supports up to PCIe 4.0 x16
• 1x PCIe x1 slot (From H610 chipset)
  • Supports PCIe 3.0 x1

ONBOARD GRAPHICS

• 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz ¹ / ²
• 1x VGA port, supporting a maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz ¹ / ²
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

SATA PORTS

• 4x SATA 6Gb/s ports (From H610 chipset)

M.2 SSD SLOT

• 1x M.2 slot (Key M) (from CPU)
  • Supports up to PCIe 3.0 x4
  • Supports 2242/ 2260/ 2280 storage devices

AUDIO

Realtek^® ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® RTL8111H 1Gbps LAN controller

POWER CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin +12V power connector

INTERNAL USB CONNECTORS

FAN CONNECTORS

• 1x 4-pin CPU fan connector
• 2x 4-pin system fan connectors

SYSTEM CONNECTORS

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Serial port connector

JUMPERS

• 1x Clear CMOS jumper

LED FEATURES

• 1x 4-pin RGB LED connector
• 4x EZ Debug LED

BACK PANEL PORTS

DIMENSIONS

• M-ATX Form Factor
• 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

BOX CONTENT

1.  MSI^® does not guarantee the risks or damages caused by changing the cover.
2.  These pictures are for reference only and may vary without notice.
