Description
SPECIFICATIONS
Product Name

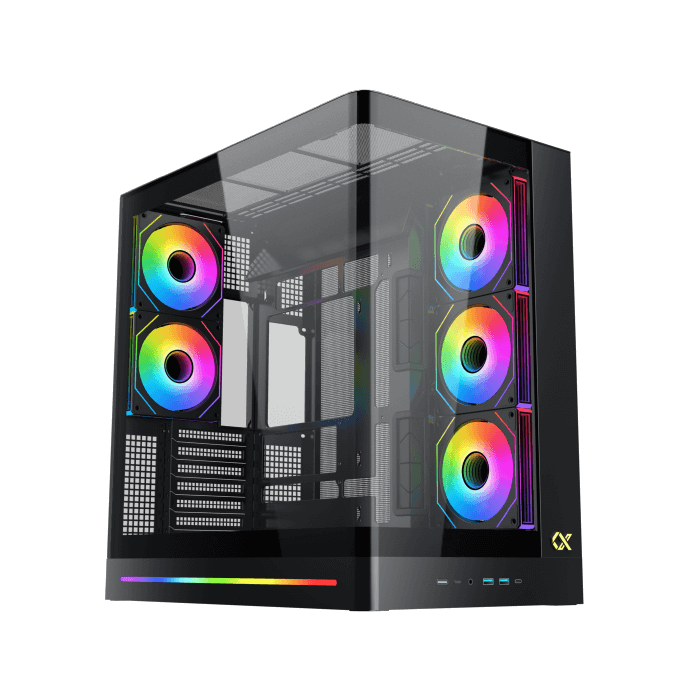

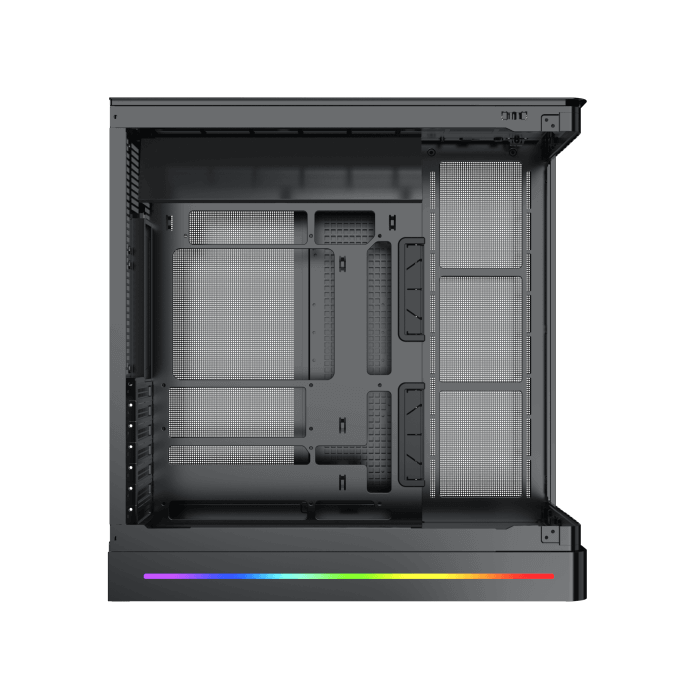

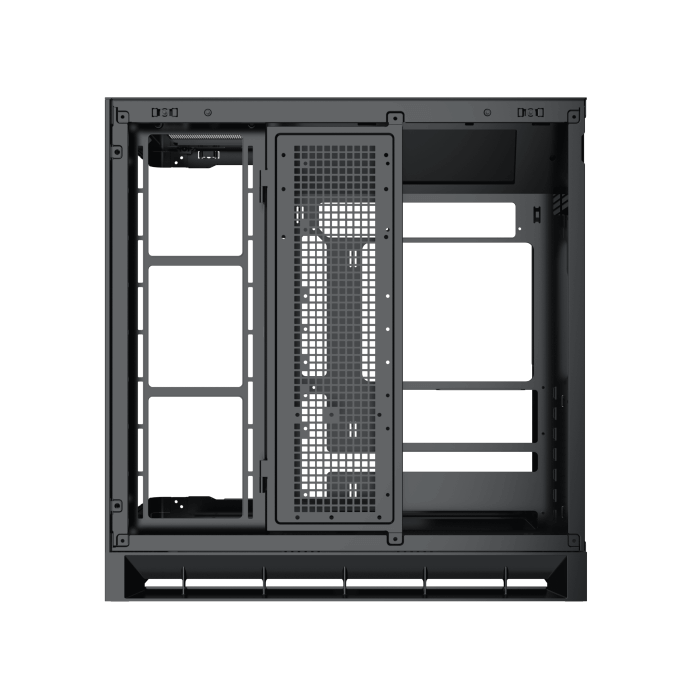

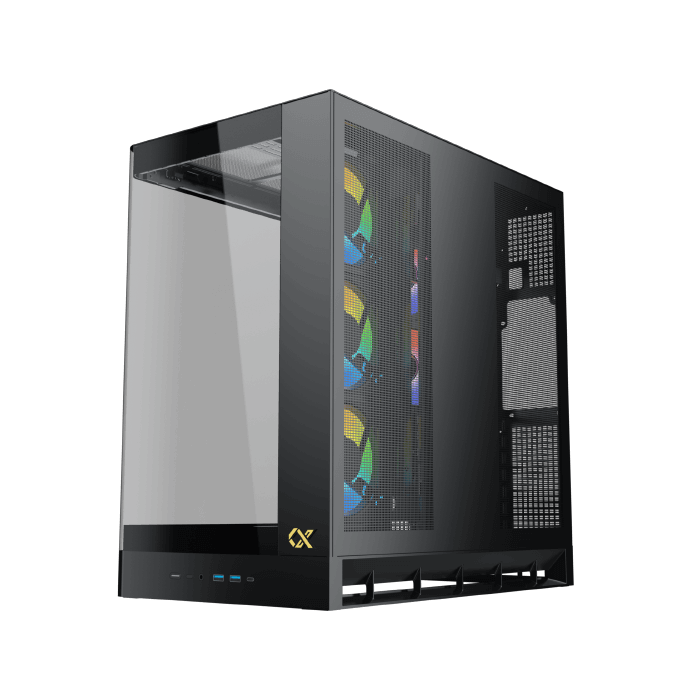

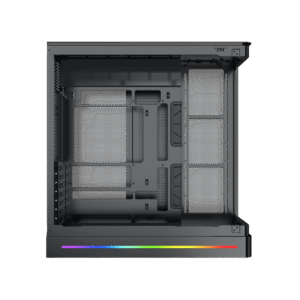

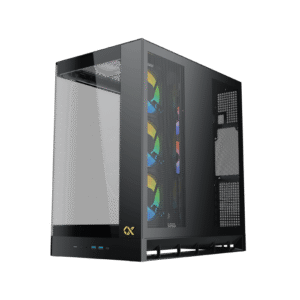

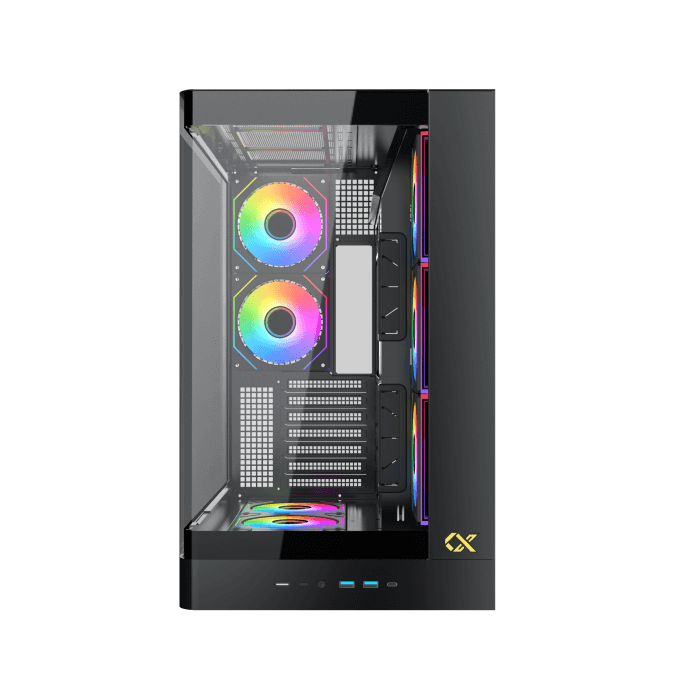

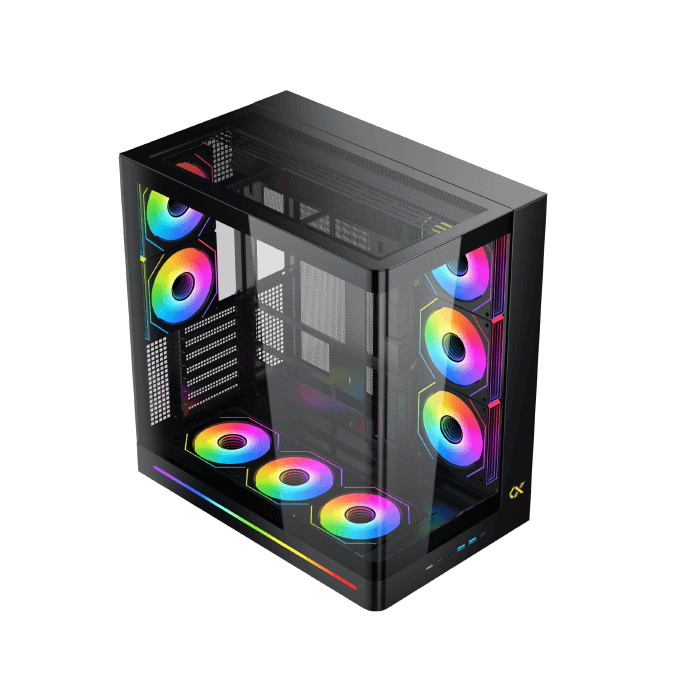

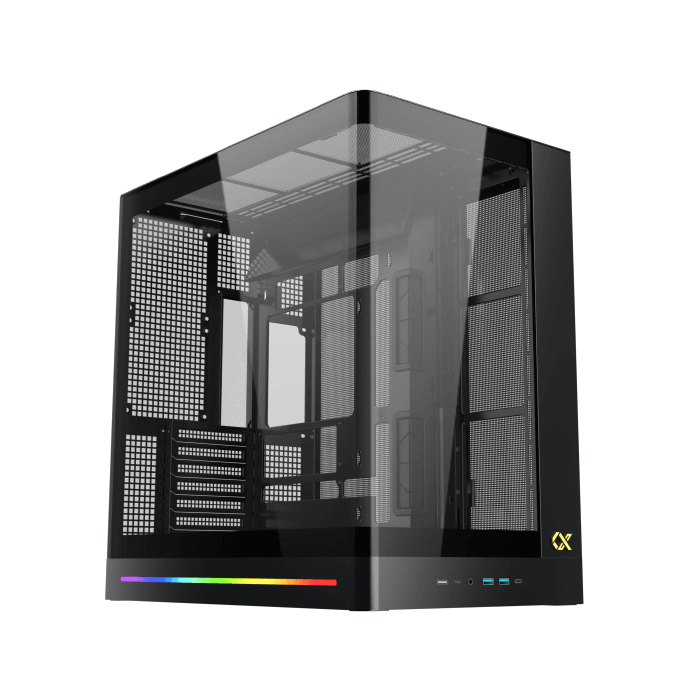

Pano II Air
Dimensions
447x285x466mm (LxWxH)
Motherboard Support
E-ATX(≤285mm)
ATX (Support Back Plug)
M-ATX (Support Back Plug)
ITX
Drive Bays
SSD/HDD Mounting Flip Cover :
3.5″ x2 & 2.5″ x1 or 3.5″ x1 & 2.5″ x2
or 2.5″ x3
Fan Support
Top:120mm x3 or 140mm x2
Side: 120mm x3
Bottom: 120mm x3
Rear: 120mm x2
PSU Length Limitation
165mm
CPU Cooler Clearance
165mm
Material
Steel
Power Supply
Standard PS2 ATX PSU
Expansion Slots
7 Standard Slots
I/O Panel
USB-C
USB3.0 x2
HD Audio
Radiator Support
Top: 240/280/360
Side: 240/360
Rear: 120
GPU Length Limitation
400mm
(Support GPU Horizontal or
Vertical Installation,
Vertical GPU Bracket Included)
