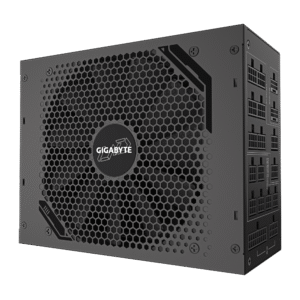

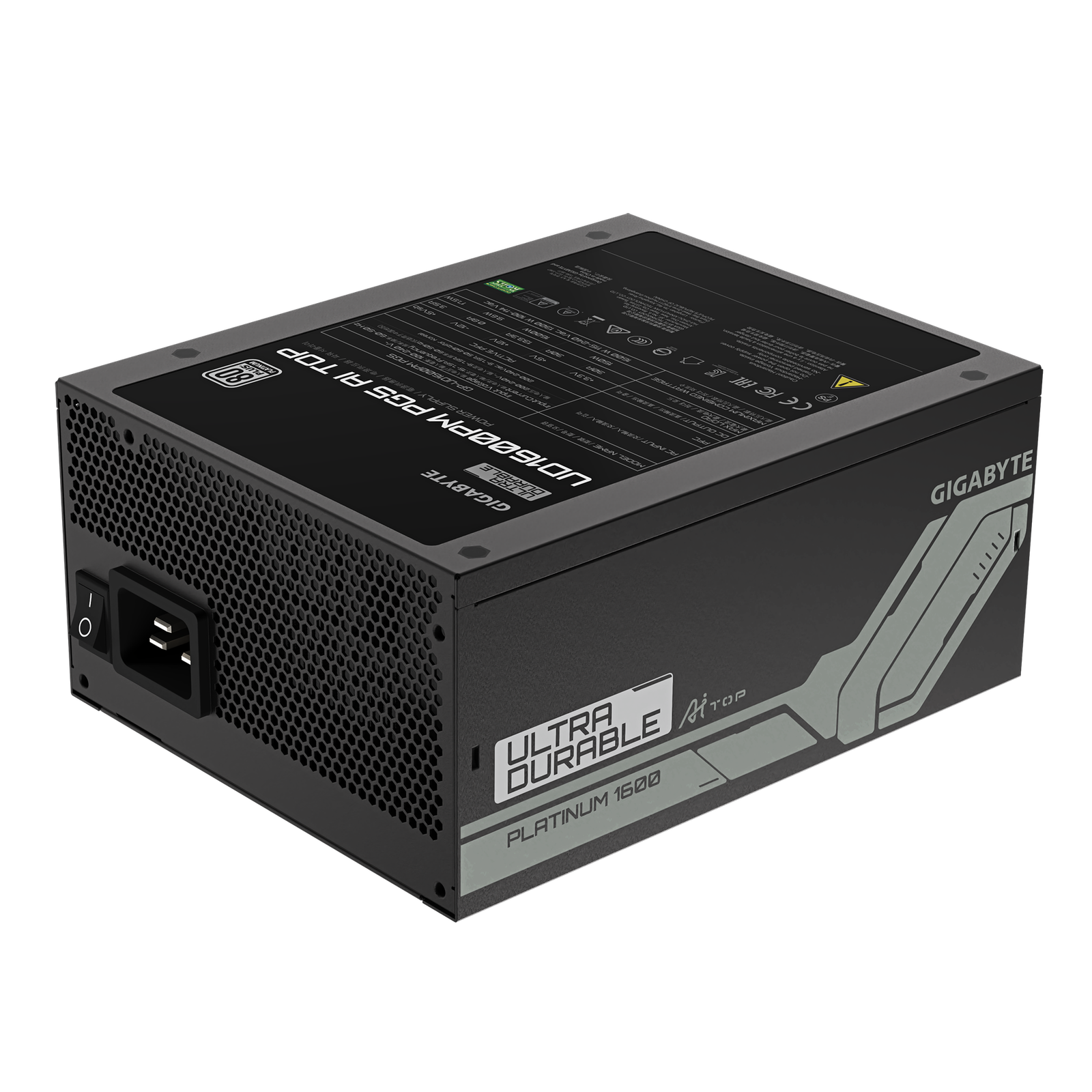

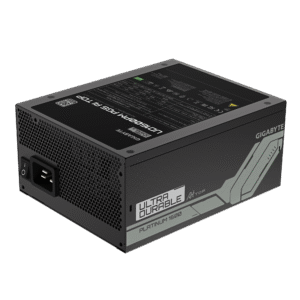

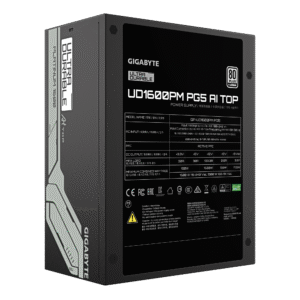

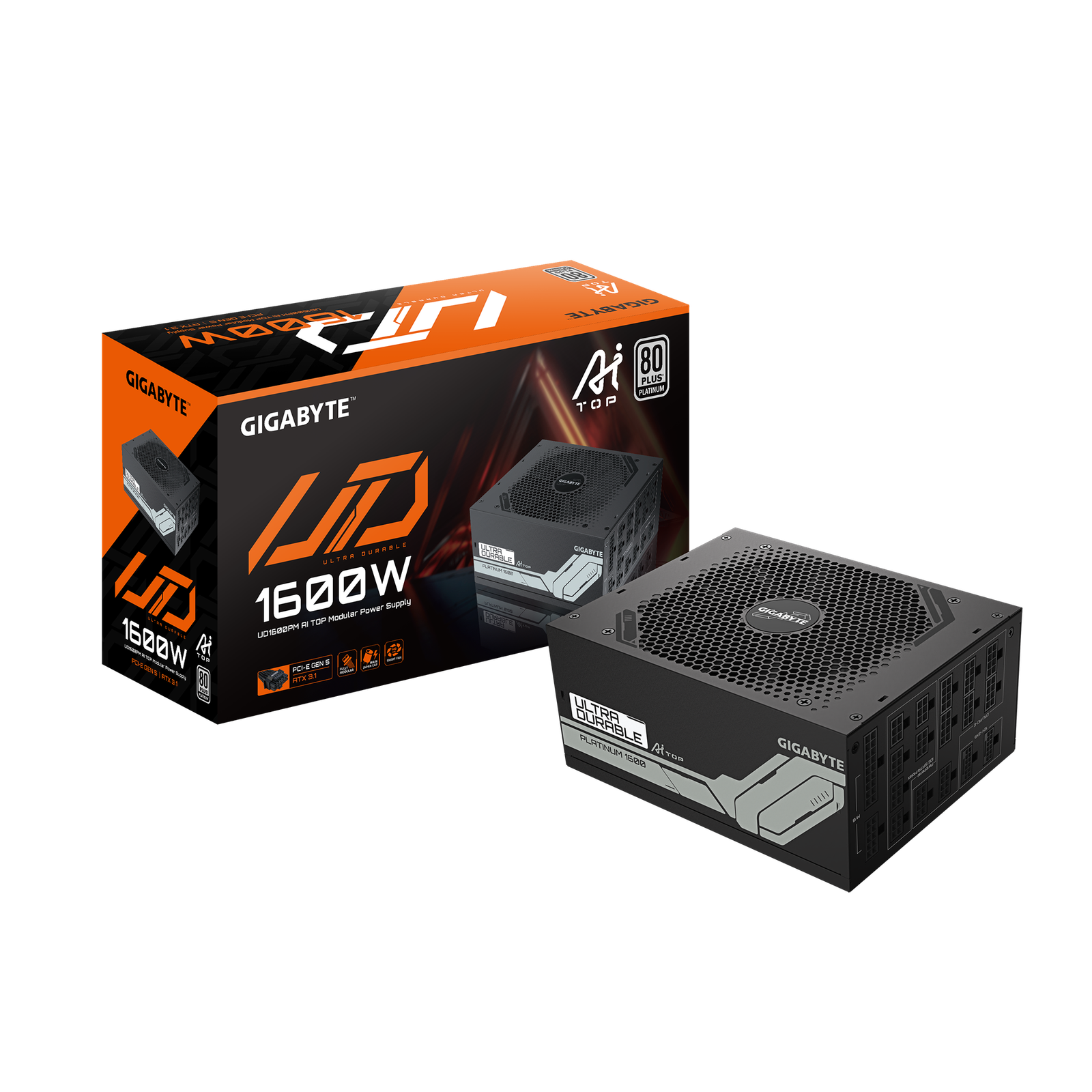

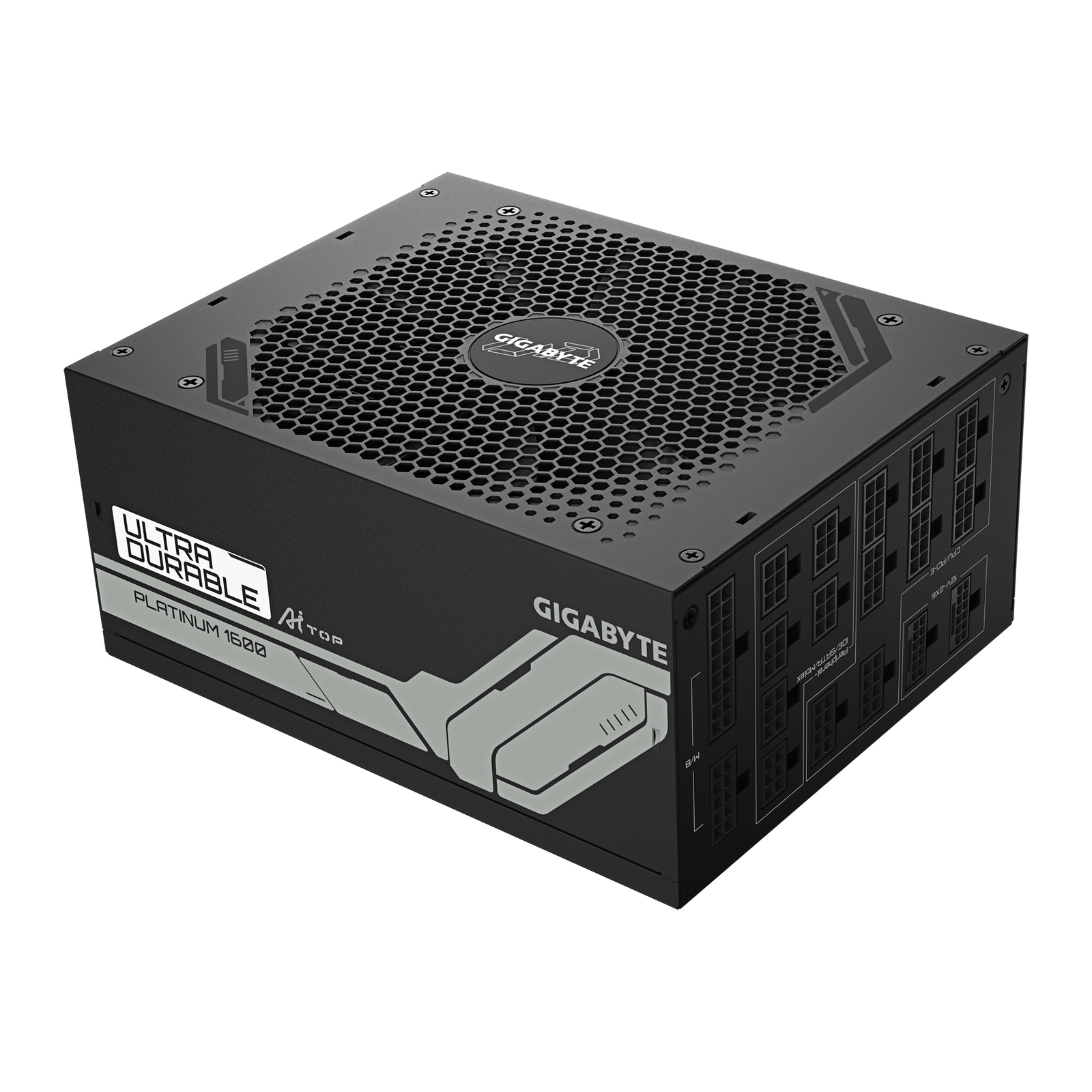

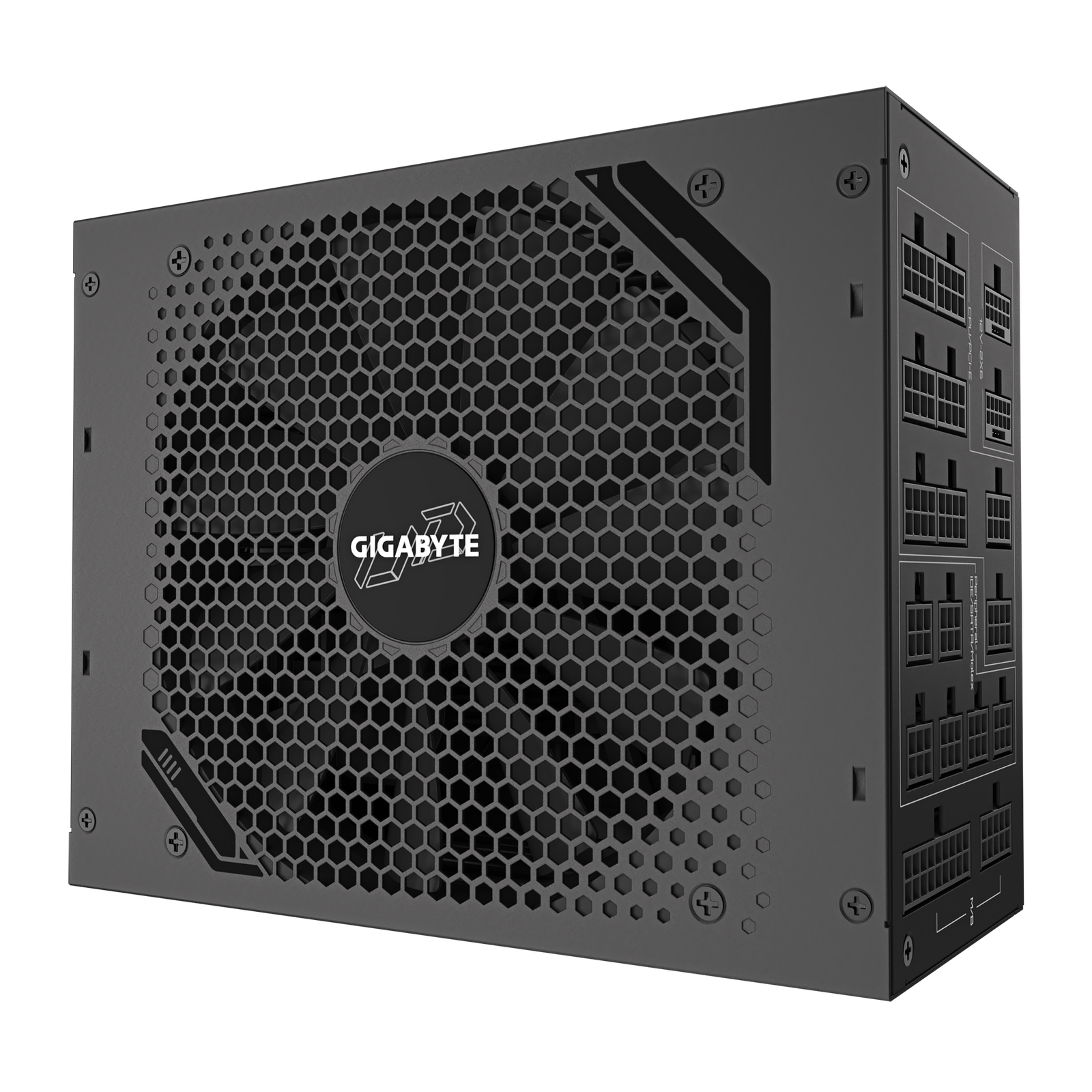

GIGABYTE UD1600PM PG5 AI TOP
19.000,00 EGP
KEY FEATURE
- 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
- ATX 3.1 and PCIe Gen 5.0 ready
- Server-grade Ultra Durable
- Main Japanese capacitors
- Enhanced thermal solution
- 140mm smart double ball bearing fan
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Platinum certified
16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
Equipped with two PCIe 16pin to PCIe 16pin connectors, it supports up to two high-end graphics cards simultaneously, providing each card with a robust 600W power supply to meet demanding high-performance computing needs. Additionally, it features two two 8pin to PCIe 16pin connectors, enabling simultaneous support for four PCIe Gen 5.0 graphics cards, with each card receiving an independent 300W power supply to fully satisfy multi-card computing requirements.
- ModelGP-UD1600PM PG5
- TypeIntel Form Factor ATX 12V v3.1
- PFCActive PFC (>0.9 typical)
- Input Voltage100-240 Vac (full range)
- Input Current15-7.5A
- Input Frequency60-50 Hz
- Output Capacity1600W
- Dimensions150 x 190 x 86mm
- Fan Type140mm Double Ball Bearing fan
- 80 PLUSPlatinum
- Efficiency92% at typical load
- MTBF>100,000 hours
- ProtectionsOVP/OPP/SCP/UVP/OCP/OTP
- Power Good Signal100-150ms
- Hold Up Time>16ms
- Cable TypeFlat, All black
- ConnectorsATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCI-E 16 Pin x 2 : 700mm*2
PCI-E 16 Pin to PCI-E 8 pin x 2 : 700mm*2
PCI-E 6+2 Pin x 8 : 650mm+150mm*4
SATA x 16 : 650mm+150mm+150mm+150mm*4
4 Pin Peripheral x 6 + 4 Pin floppy x 2 : 600mm+150mm+150mm+150mm*2
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior
| Power Supply Wattage | 1600W-2000W |
|---|---|
| Power Supply Efficiency | 80 Plus / Cybenetics Platinum |
| Brand | GIGABYTE |
