Description
Product Specifications

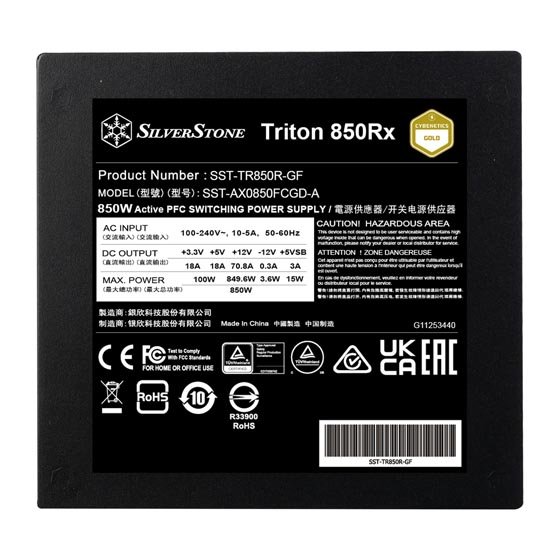

Product No.
SST-TR850R-GF
Model (safety certification)
SST-AX0850FCGD-A
Color
Black (lead-free paint)
Max. DC Output
850W
Power density
470.7 W/L
Load Range
| Output | +3.3V | +5V | +12V1 | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 18A | 18A | 70.8A | 3.0A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V
100W
Combined +12V
850W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.9 at full load）
Efficiency
87% ~ 89% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over power protection
Over current protection
Over voltage protection
Short circuit protection
Under voltage protection
Over Temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
1 x 12+4-Pin 12V-2×6 connector
5 x 8 / 6-Pin PCIe connector
6 x SATA connector
2 x 4-Pin Peripheral connector
Cooling System

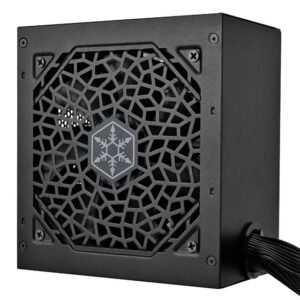

Single 120mm ICB bearing fan
Noise Level
18 dBA min.
Certification
Cybenetics Gold
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 140mm (D)
5.91″ (W) x 3.39″ (H) x 5.51″ (D)
5.91″ (W) x 3.39″ (H) x 5.51″ (D)
Weight
1.56 kg
