Description
Product Specifications
Model No.
SST-IM360-ARGB
Application
Intel LGA 115X/1200/1700/1851/2011/2066
AMD socket AM5/AM4
AMD socket AM5/AM4

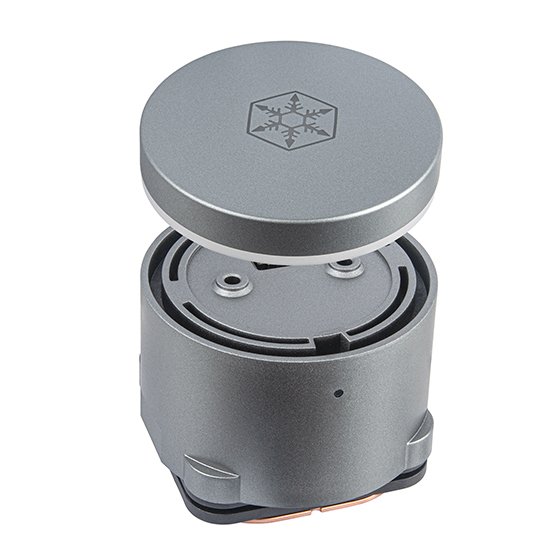

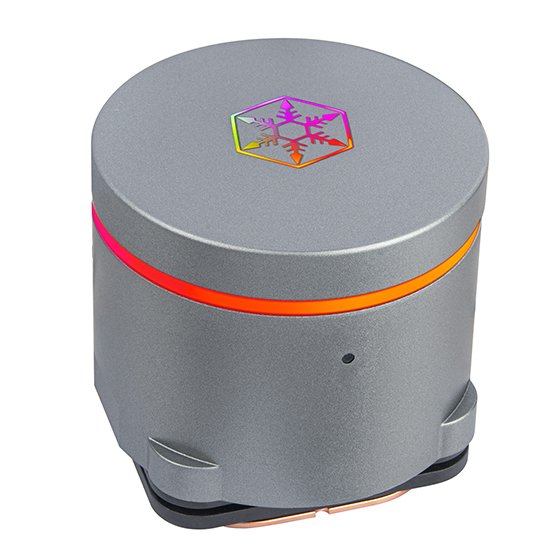

Water block
Dimension
- 73mm (W) x 70mm (H) x 84mm (D)
2.87″ (W) x 2.76″ (H) x 3.31″ (D)
Material
- Copper base with plastic body
Pump
Motor speed
- 3,100 ±10% RPM
Rated Voltage
- 12V
Rated Current
- 0.38A
Connectors
- 2510 – 3 pin

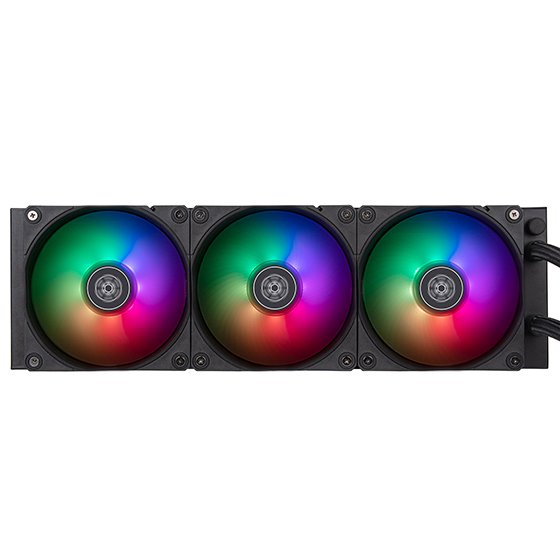

Radiator
Dimension
- 120mm (W) x 28mm (H) x 396mm (D)
4.72″ (W) x 1.1″ (H) x 15.6″ (D)
Material
- Aluminum
Tube
Length
- 460mm
Material
- Rubber
Fan
Dimension
- 120mm (W) x 25mm (H) x 120mm (D)
4.72″ (W) x 0.98″ (H) x 4.72″ (D)
Speed
- 500 ~ 2,200 RPM
Noise level
- 12.1 ~ 33.1 dBA
Rated Voltage
- 12V
Max airflow
- 75.74 CFM
Max air pressure
- 3.4mmH2O
Connector
- 4 pin PWM & 4-1 pin ARGB (5V LED)
Remark
* Please ensure that the control box and the RGB port on the motherboard you wish to connect are compatible with the RGB port definition of the IM360-ARGB. An incorrect connection may result in malfunctions or damage.
