Description
The new generation of VP550 PLUS is crafted for quality, performance and incredible value.
This entry-level solution is rated from 500W to 650W, saving energy through its high efficiency of up to 85% efficient and is 80 PLUS® Standard certified.
Delivering up to 85% efficiency,
the VP PLUS series utilizes active PFC, and provides efficiency during max and low loads—living up to the performance standards that we are known for.
| Brand | Antec |

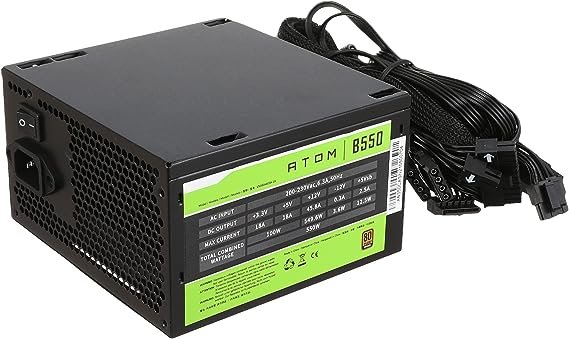

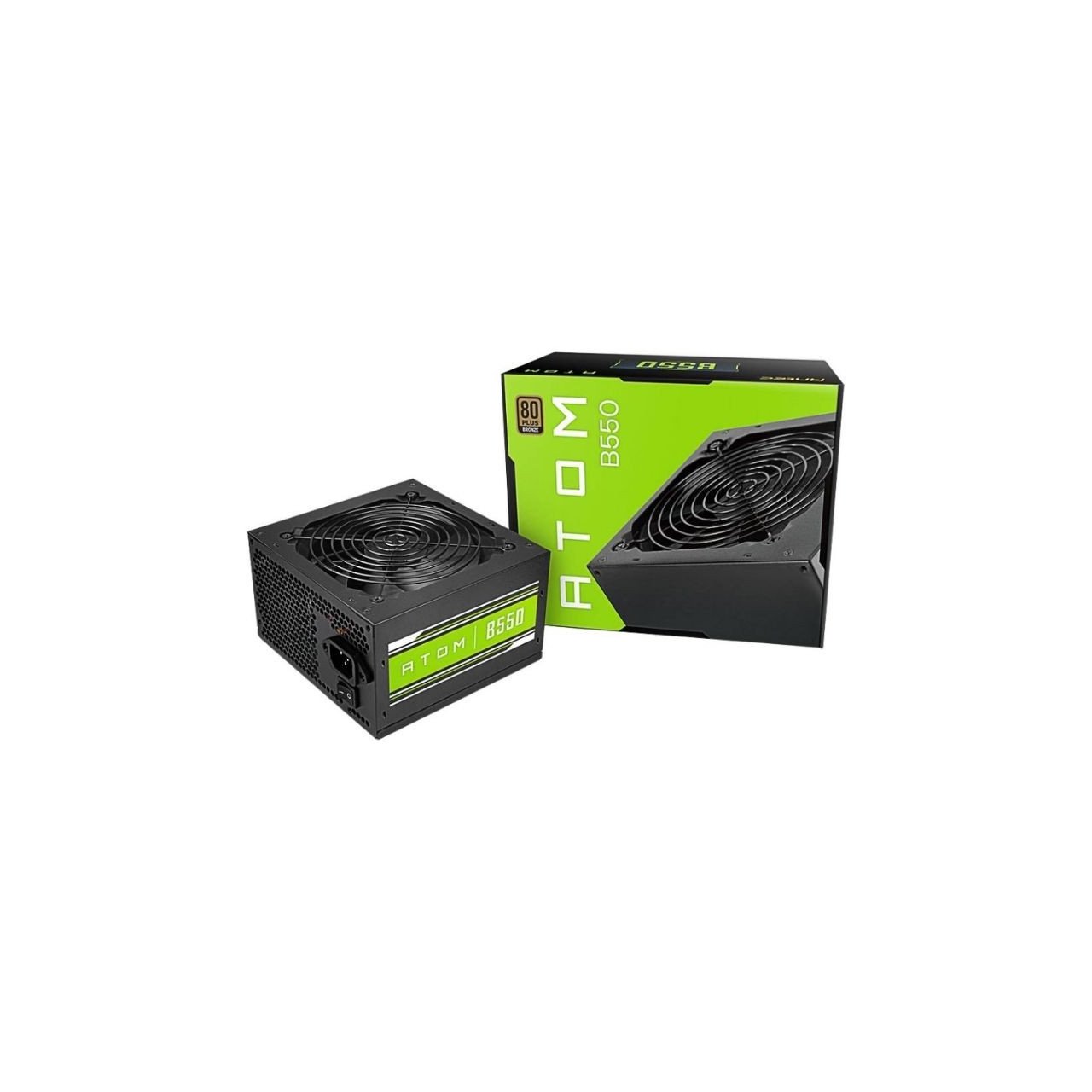

| Model | Atom B550 550W 80-Bronze |
| Modular | Non-Modular |
| Input Voltage | 100-240 VAC ±10% |
| Input Current | 8A-4A |
| Input Frequency Range | 47Hz-63Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Efficiency | 85% Typically |
| Protection | UVP/OVP/SCP/OPP/NLO |
| Output Capacity | 550W |
| Regulatory | cTUVus/TUV/CB[IEC62368 Compliant] /CE/FCC |
| Fan | 120mm Silent Fan |
| Certifications | 80 Plus |
| Connector | 1 x MB 24(20+4) Pin |
| 1 x 8(4+4) Pin EPS 12V | |
| 2 x 8(6+2) Pin PCI-E | |
| 7 x SATA | |
| 2 x Molex | |
| 1 x FDD | |
| Net Weight | 1.78 Kgs |
| Dimension (W x L x H) | 140(D)*150(W)*86(H) |
| Warranty | 11 month |
