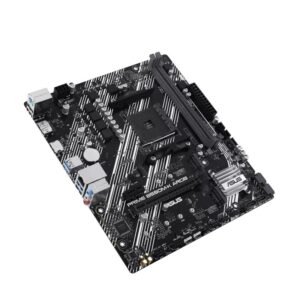

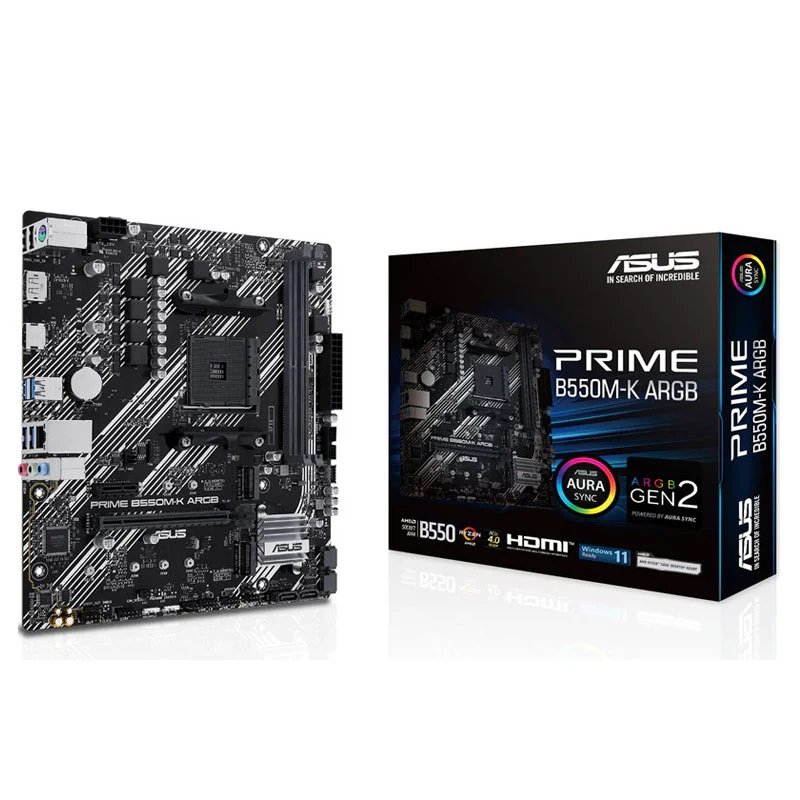

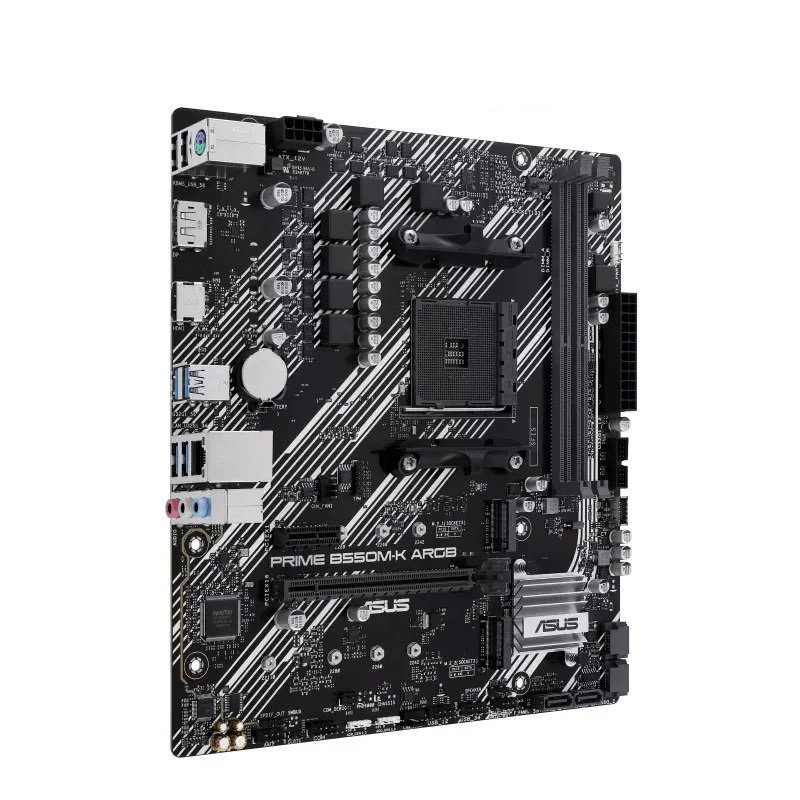

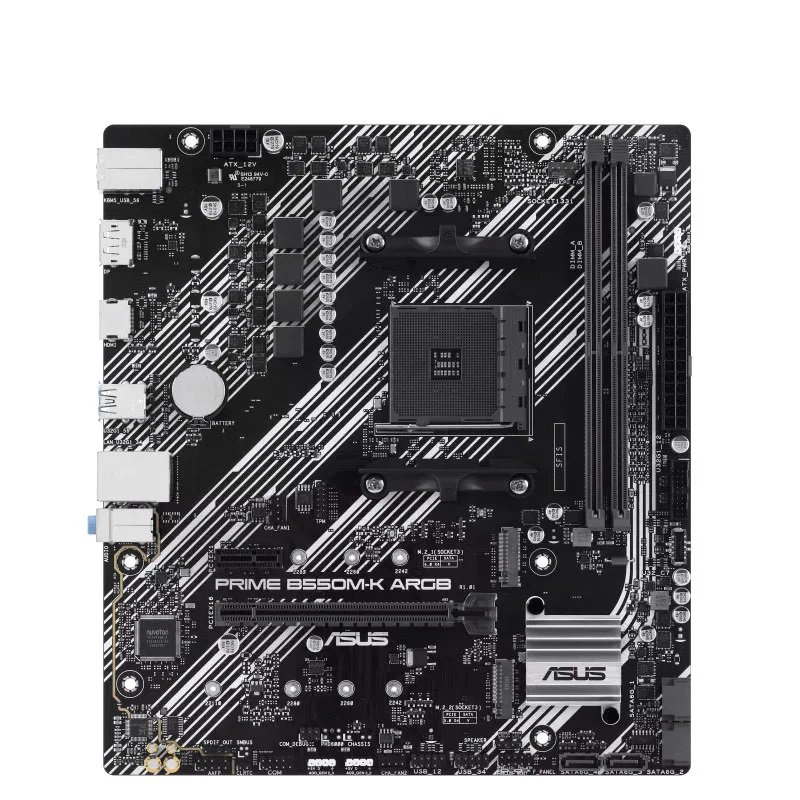

ASUS PRIME B550M-K ARGB
4.300,00 EGP
This motherboard description is for an AMD B550 mATX model, which is ideal for users looking to build a compact yet powerful system. Here’s a breakdown of its features:
- Compatibility and Performance:
- AMD AM4 Socket: Supports a wide range of AMD processors, including Ryzen™ 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors.
- PCIe 4.0: Provides faster data transfer rates for GPUs and storage, ideal for high-performance systems.
- Dual M.2 Slots: For ultra-fast NVMe SSDs, improving boot times and application loading.
- Connectivity:
- Realtek 1Gb Ethernet: Offers reliable network speeds suitable for most gaming and home computing needs.
- USB 3.2 Gen 1 Ports: Available both in the rear and front (with Type-C® support), providing fast data transfer and device connectivity.
- Cooling and Customization:
- Comprehensive Cooling: With a PCH heatsink and hybrid fan headers, combined with Fan Xpert 2+ for managing cooling solutions effectively.
- Aura Sync RGB Lighting: Customizable lighting through addressable Gen 2 headers, allowing you to sync with compatible hardware for enhanced aesthetics.
- Future-Proofing:
- Designed with AI computing in mind, this board is prepared to handle the demands of upcoming AI applications thanks to its advanced power and connectivity.
This motherboard is a solid choice for gamers, content creators, and AI enthusiasts looking for a balance of performance, future-readiness, and aesthetic customization.
- CPU Compatibility:
- Socket AM4: Supports AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, and 3000 Series processors, ensuring flexibility with both current and older generation CPUs.
- Chipset:
- AMD B550, providing support for PCIe 4.0 (with certain CPUs) and more advanced connectivity options compared to previous generation chipsets.
- Memory:
- 2 DIMM Slots: Supports up to 64GB of DDR4 memory, with speeds up to 5100 MHz (OC) depending on the CPU and configuration. Supports dual-channel architecture for better memory bandwidth.
- Graphics:
- DisplayPort 1.4: Supports up to 4K at 60Hz.
- HDMI 2.1: Also supports 4K at 60Hz, depending on the integrated graphics of the installed processor.
- Expansion Slots:
- 1 x PCIe 4.0 x16 slot (for Ryzen 5000/3000 processors) or PCIe 3.0 x16 slot (for Ryzen 5000 G-Series/4000 G-Series processors).
- 1 x PCIe 3.0 x1 slot for additional add-on cards.
- Storage:
- 2 x M.2 Slots:
- M.2_1: Supports PCIe 4.0 x4 and SATA modes (for Ryzen 5000/3000 processors) or PCIe 3.0 x4 (for G-Series processors).
- M.2_2: Supports PCIe 3.0 x4 and SATA modes.
- 4 x SATA 6Gb/s Ports: Supports RAID 0/1/10 configurations for high-speed storage and redundancy.
- 2 x M.2 Slots:
- Networking:
- Realtek 1Gb Ethernet: Reliable and fast for most standard networking needs.
- USB Connectivity:
- Rear I/O Ports: 4 x USB 3.2 Gen 1 (Type-A), 2 x USB 2.0.
- Front I/O Support: Includes headers for USB 3.2 Gen 1 (Type-C and Type-A) and USB 2.0.
- Audio:
- Realtek 7.1 Surround Sound: High-definition audio codec supporting up to 24-bit/192kHz playback.
- Audio Shielding and premium capacitors ensure clean audio output with minimal interference.
- Cooling and Power:
- 2 x 4-pin chassis fan headers and 1 x 4-pin CPU fan header with Fan Xpert 2+ for optimized cooling control.
- 24-pin Main Power Connector and 8-pin +12V Power Connector for CPU.
- Aesthetics and Customization:
- Aura Sync RGB Lighting: Three addressable Gen 2 RGB headers allow for synchronization with compatible components, enabling vibrant lighting effects.
- Special Features:
- ASUS 5X PROTECTION III: Includes features such as DIGI+ VRM, LANGuard, SafeSlot Core, and overvoltage protection, offering a robust and durable motherboard design.
- AI Suite 3 and Armoury Crate provide software-based tuning and management tools for performance and lighting control.
- Form Factor:
- Micro-ATX: Compact form factor, suitable for smaller builds. Dimensions are 9.6 inches x 8.7 inches (24.4 cm x 22.1 cm).
| Brand | ASUS |
|---|---|
| Motherboard Chipset | AMD B550 |
| Motherboard Memory Type | DDR4 |
| Socket | AM4 |
