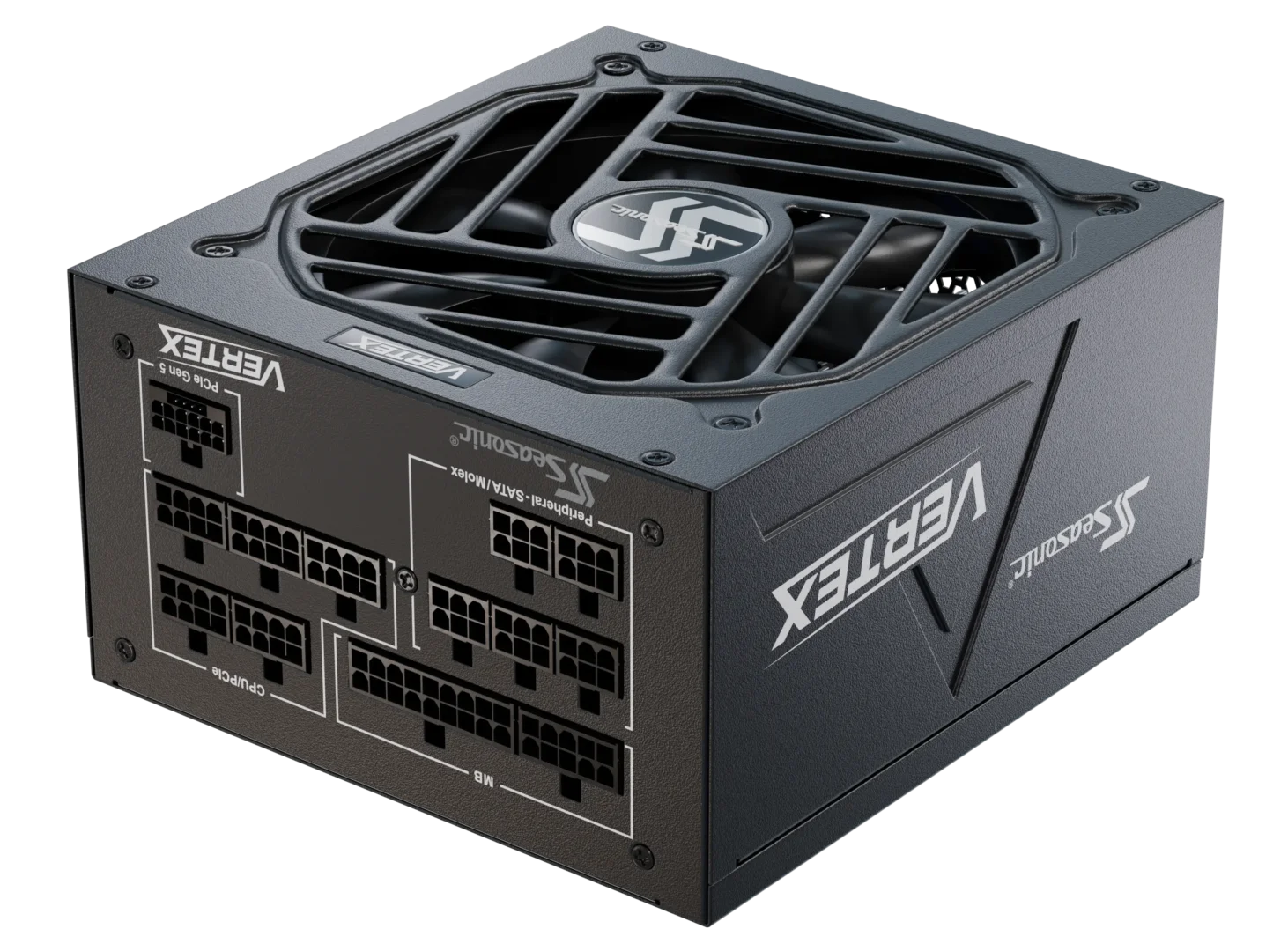

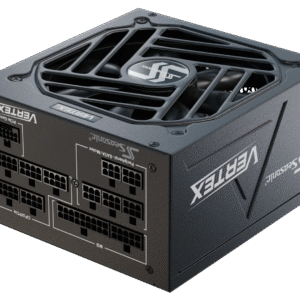

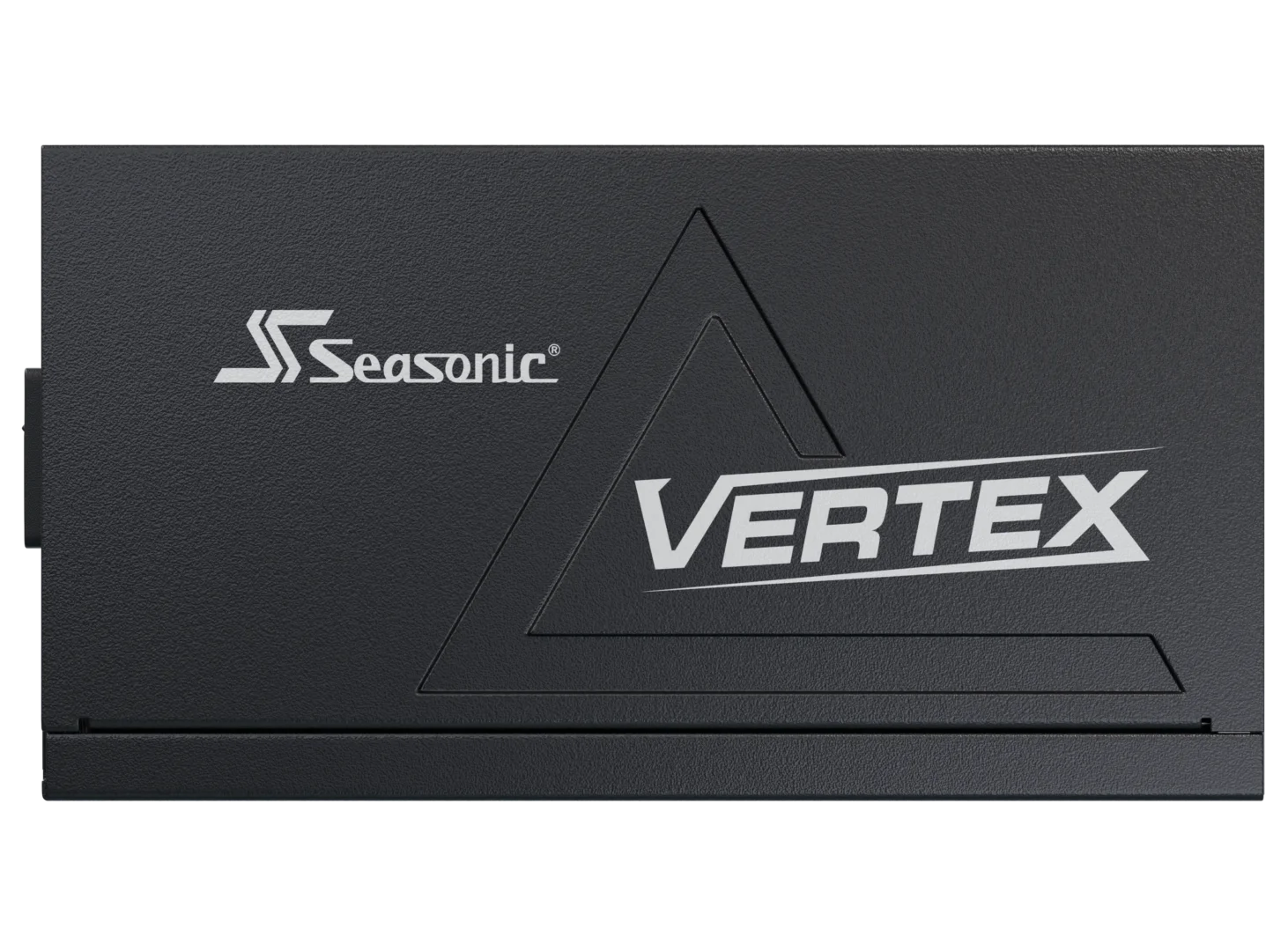

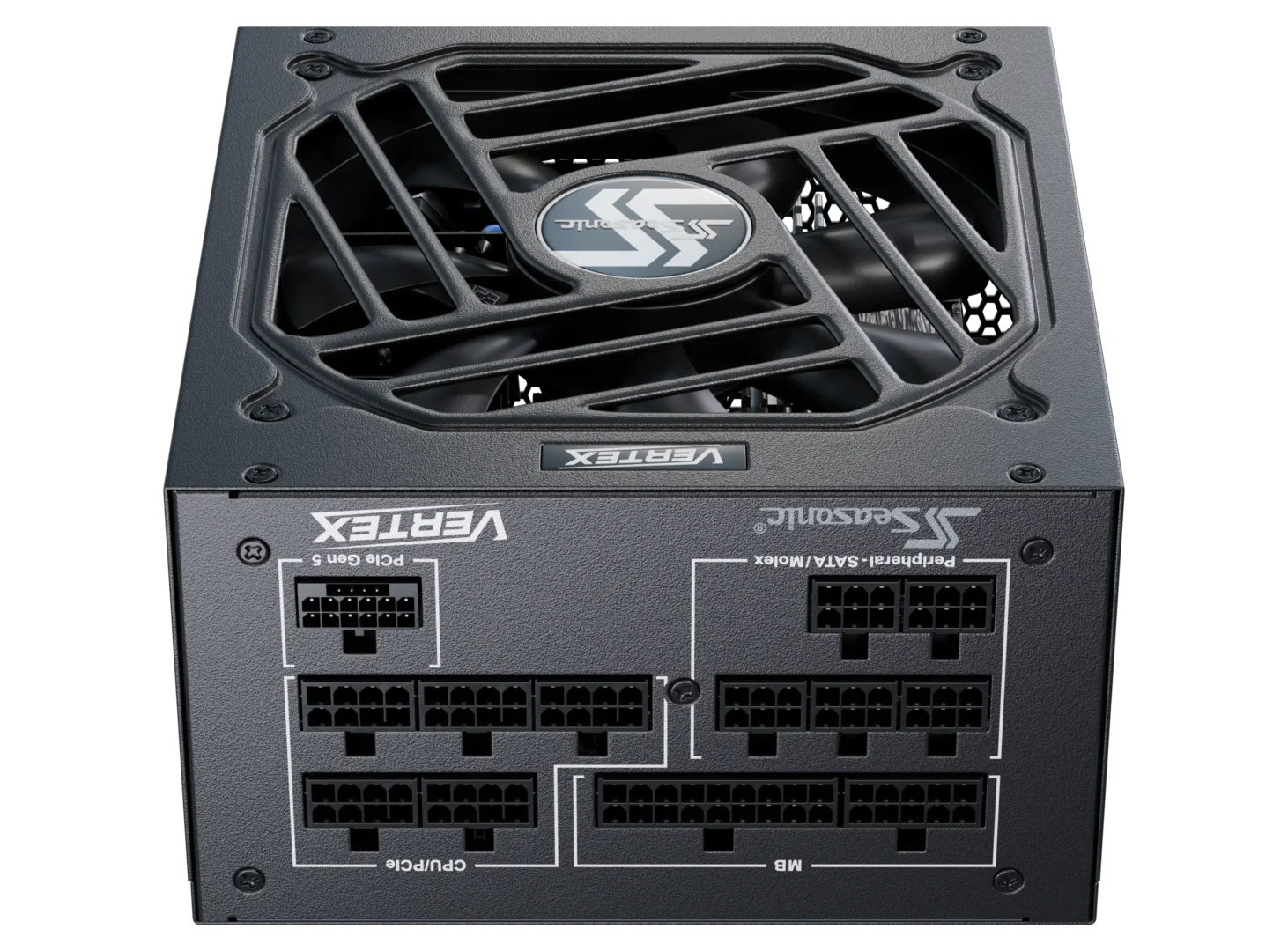

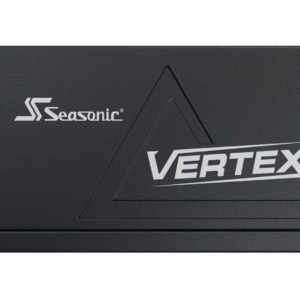

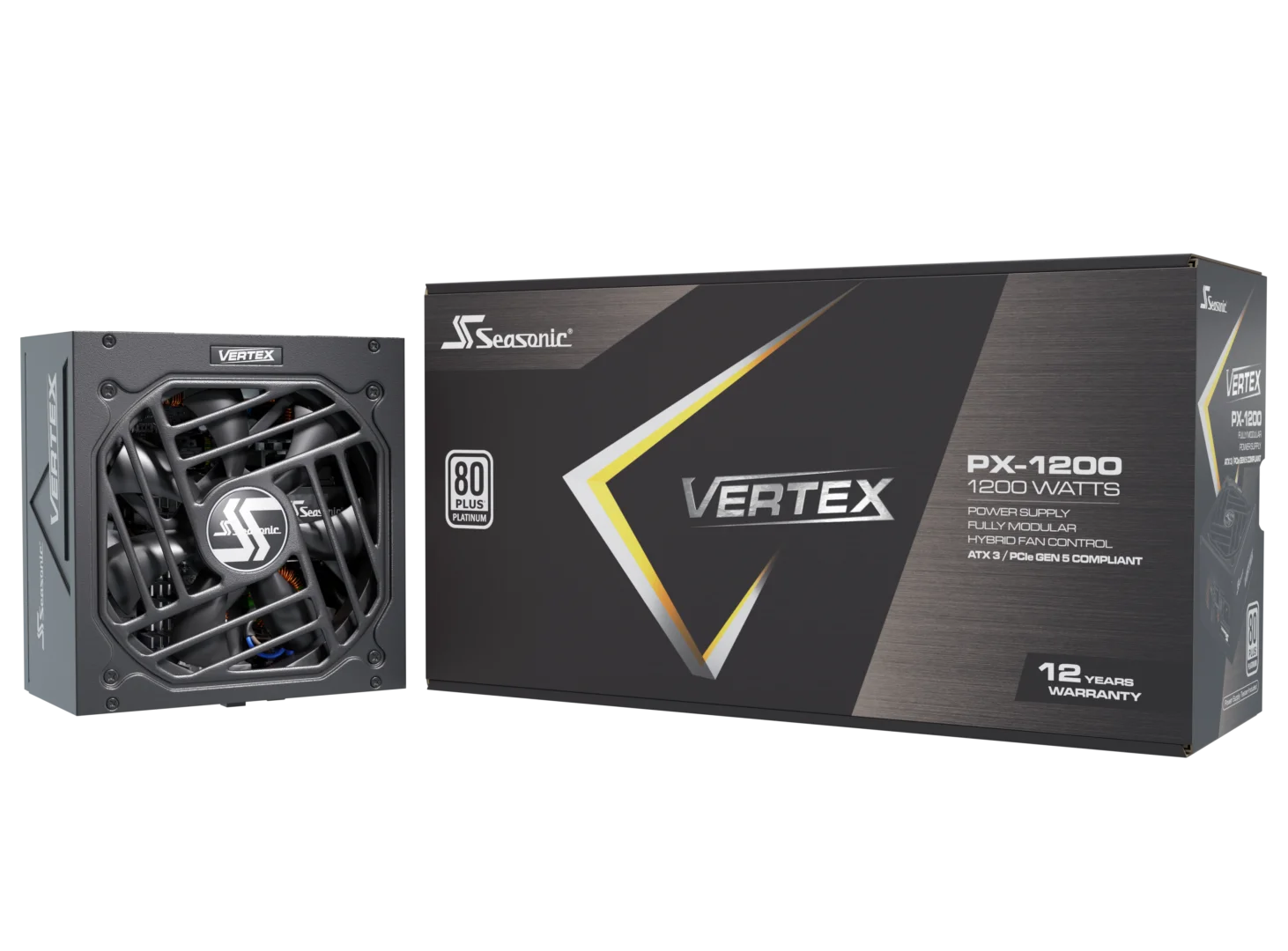

Seasonic VERTEX PX ATX 3.1 1200 W
22.000,00 EGP
VERTEX PX
The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in Platinum level of efficiency, with all the best features you can expect from a Seasonic power supply:
- Fully compatible with ATX 3.1 and PCIe 5.1 standards.

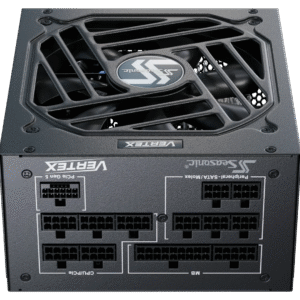

- Full modularity for the best cable management options.
- Added 12V-2×6 cable to comply with the new graphic cards.

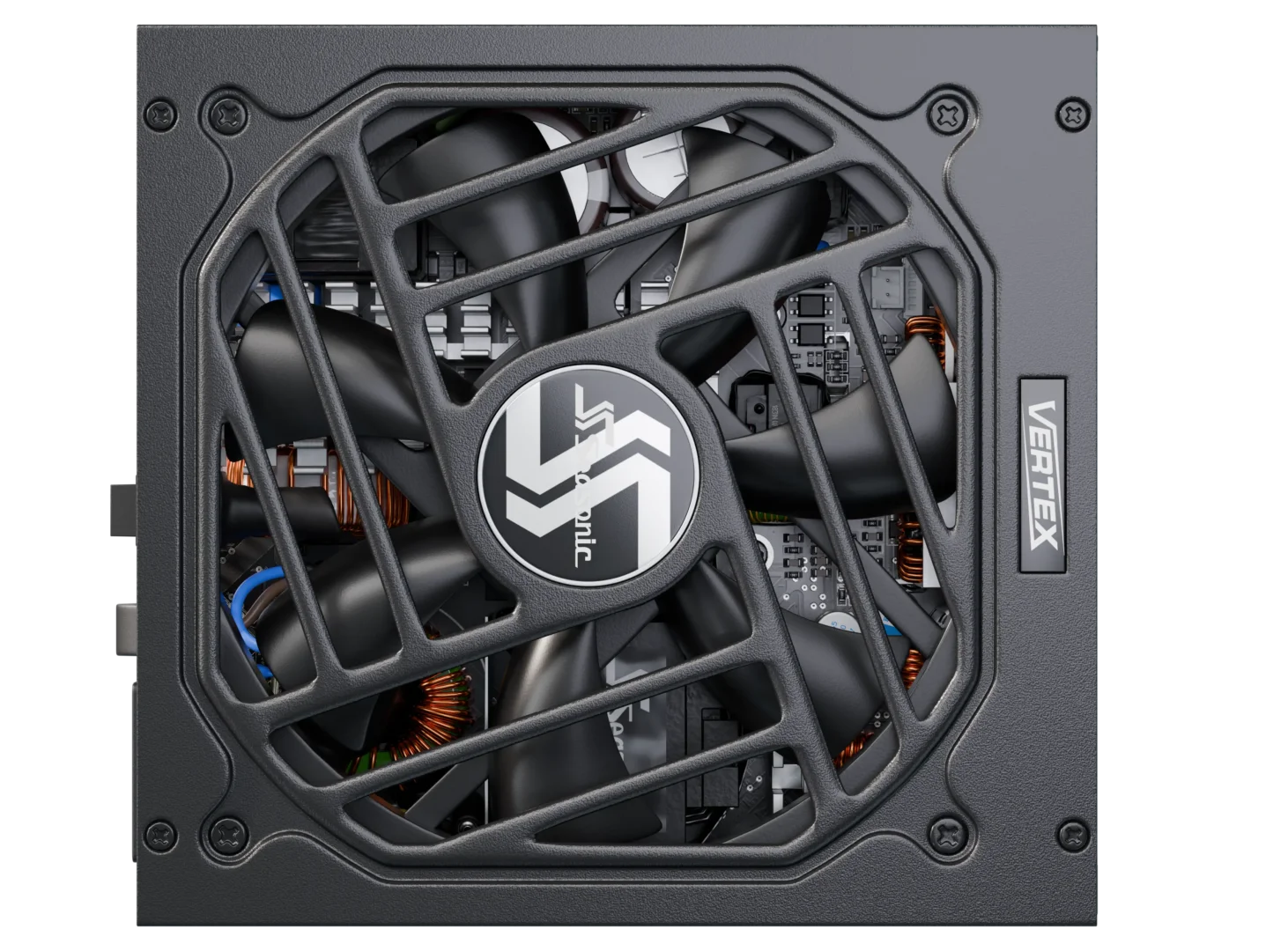

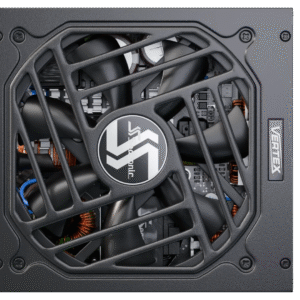

- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation.
- Seasonic Hybrid Silent Fan Control for optimal cooling.
- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP.
- 12 years warranty – our commitment to high quality.
Note: Seasonic VERTEX Series PSUs were initially shipped with 12VHPWR cables. Following the ATX standard update, we transitioned to 12V-2×6 connectors. During this period, customers may receive either cable, depending on the region. The updated VERTEX version is expected later in 2025 for Europe and North America. We apologize for any inconvenience.
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Platinum | |
| Cybenetics Efficiency Level | Platinum | |
| Cybenetics Noise Level | A | |
| Form Factor | ATX/EPS | |
| Dimensions | 160 × 150 × 86 mm | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % – 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 – 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | 100 V – 240 V | |||||
| 15 – 7.5 A | ||||||
| 50 Hz – 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 25 A | 25 A | 100 A | 0.3 A | 3 A | |
| 125 W | 1200 W | 3.6 W | 15 W | |||
| Total continuous power | 1200 W | |||||

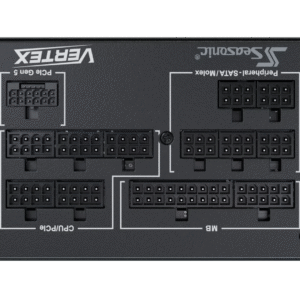

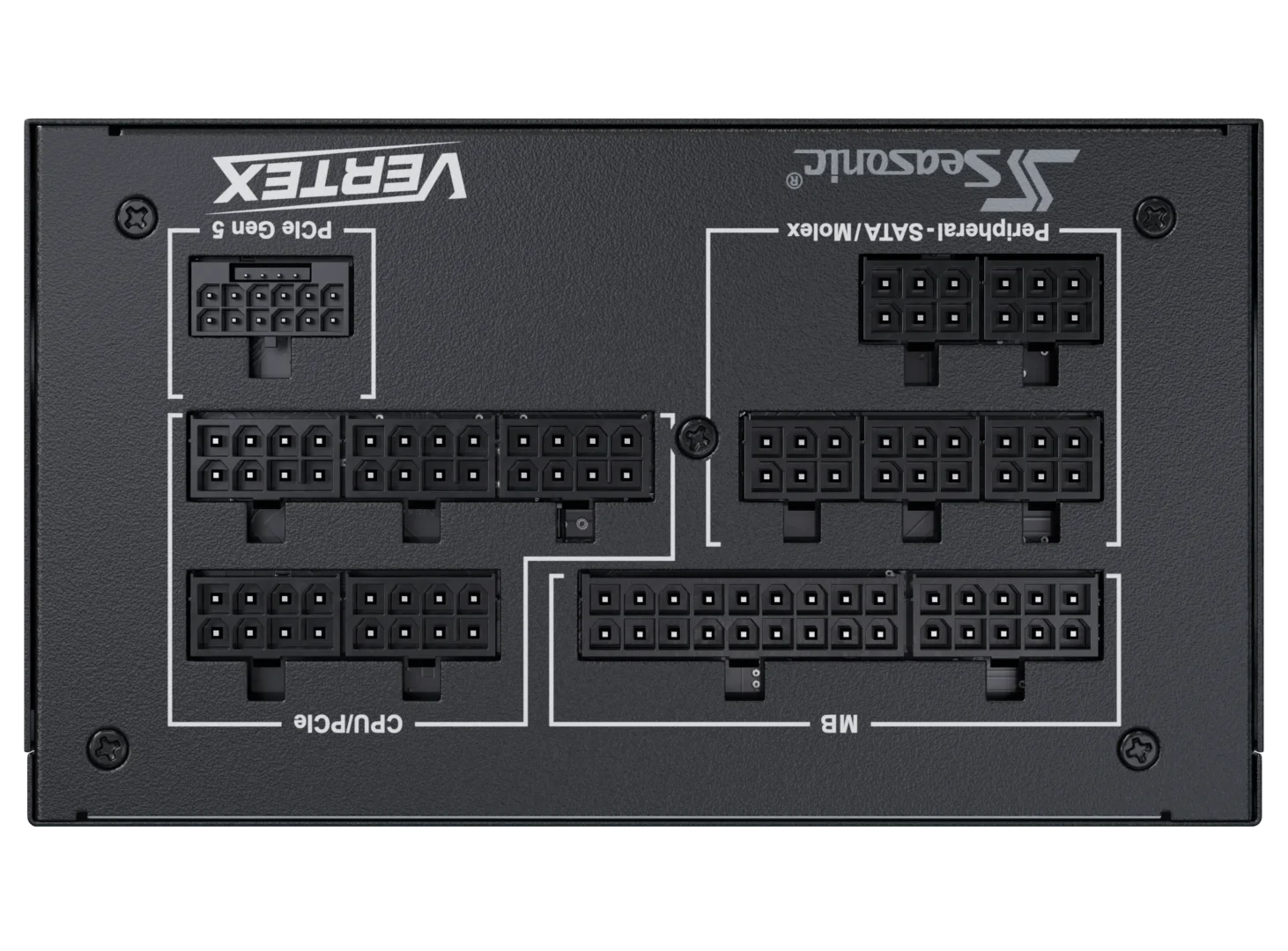

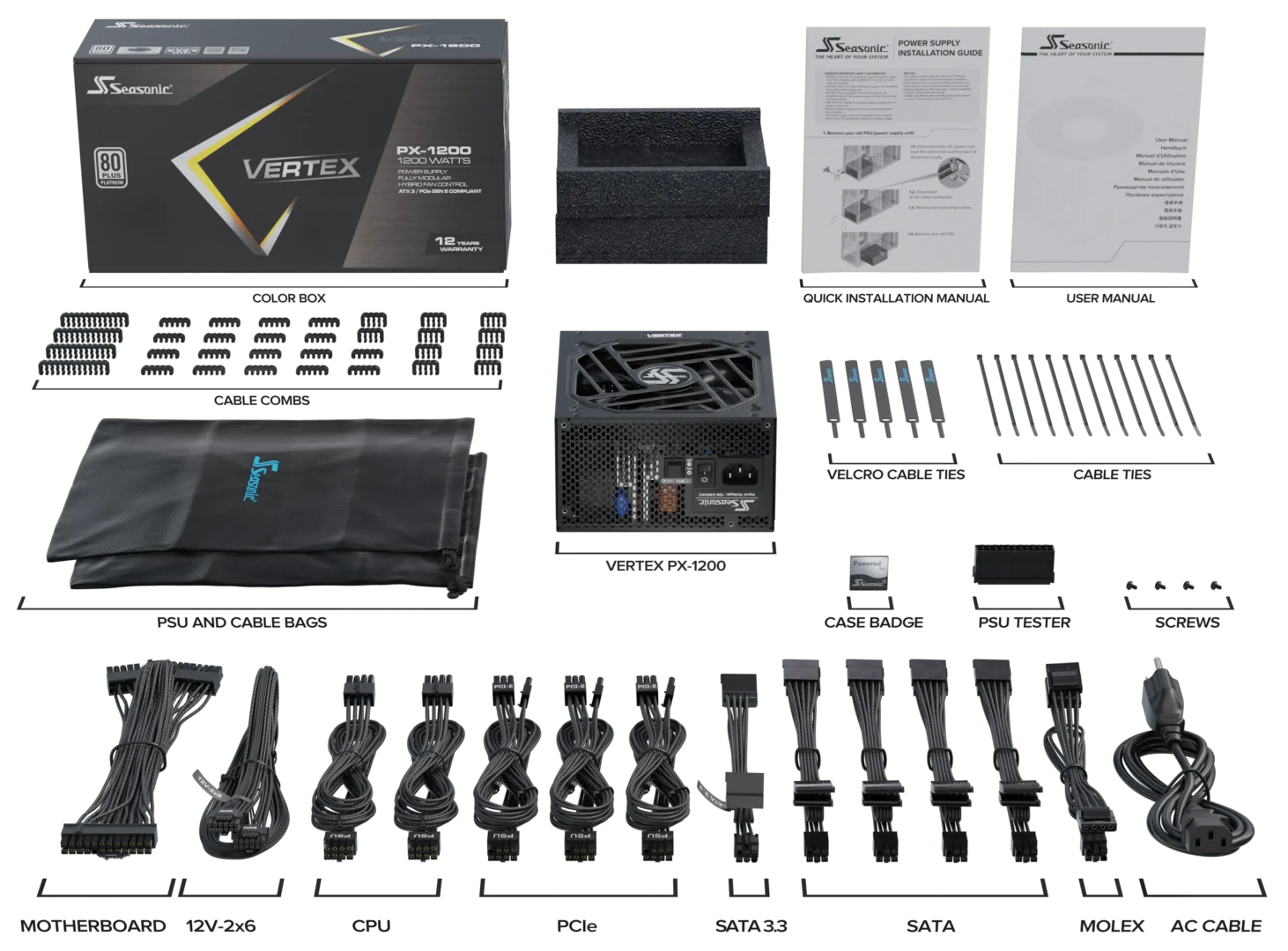

610 mm
MB (24/20 pins)
1 connector
1 cable
650 mm
CPU (8/4 pins)
1 connector
2 cables
750 mm
PCIe (8/6 pins)
1 connector
3 cables
950 mm
SATA
4 connectors
4 cables
550 mm
SATA 3.3 V
2 connectors
1 cable
690 mm
Molex
3 connectors
1 cable
700 mm
12V-2×6 (12+4 Pins to 12+4 Pins)
1 connector
1 cable
| Brand | Seasonic |
|---|---|
| Power Supply Efficiency | 80 Plus / Cybenetics Platinum |
| Power Supply Wattage | 1200W-1500W |
